6kv 10kV XLPE Insulated Power Cable 3 Core Aluminium Wire Armoured N2XSRY
| Voltage: | 6/10kV | Insulation: | XLPE |
| No of Core: | 3 | Armour: | Aluminium Wire, Steel Wire |
| Conductor: | Copper Or Aluminum | Item No: | N2XSRY |
| High Light: | XLPE Insulated Power Cable 3 Core,Aluminium Wire Armoured XLPE Cable |
||

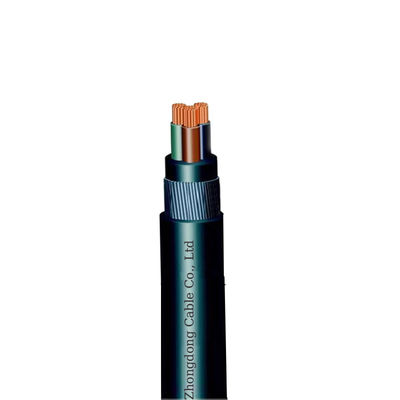

6/10kV XLPE Insulated Power Cable 3 Core aluminium wire armoured N2XSRY
Application
XLPE(Cross linked polyethylene) cable constitutes the best cable for transmission and distribution lines because of its excellent electrical and physical properties. These cables has the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.
Construction
- Conductor: Circular compacted stranded Copper or aluminium
- Conductor screen: Extruded semi-conductive compound
- Insulation: XLPE
- Insulation screen: Extruded semi-conductive compound
- Metallic screen: Copper tape
- Binder tape: non-hygroscopic material
- Inner covering(bedding): Extruded PVC
- Metallic armor: Galvanized steel wire or Galvanized steel tape
Description
- frequency voltage 6kV～10 kV(6.35/11kV)
- The ambient temperature for installation:≥0℃
- Maximum conductor temperature in normal operation:≤90℃
- Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃
- Permissible minimum bending radius:
- Single armoured cable: 5 x OD
- Multi-core armoured cable: 12 x OD
Specification
|
Specification |
Outer diameter |
Approx. outer diameter of cable |
Approx. weight of cable |
Max. D.C. resistance of conductor at 20℃ |
||
|
mm2 |
mm |
mm |
kg/km |
Ω/km |
||
|
|
|
|
Cu |
Al |
Cu |
Al |
|
3×25 |
6 |
48.9 |
4135 |
3658 |
0.727 |
1.2 |
|
3×35 |
7 |
51.3 |
4658 |
3991 |
0.524 |
0.868 |
|
3×50 |
8.4 |
54.1 |
5355 |
4401 |
0.387 |
0.641 |
|
3×70 |
10 |
58 |
6311 |
4976 |
0.268 |
0.443 |
|
3×95 |
11.5 |
62.1 |
7415 |
5603 |
0.193 |
0.32 |
|
3×120 |
13 |
65.6 |
8479 |
6190 |
0.153 |
0.253 |
|
3×150 |
14.5 |
69.3 |
9678 |
6817 |
0.124 |
0.206 |
|
3×185 |
16.2 |
73.2 |
11093 |
7564 |
0.0991 |
0.164 |
|
3×240 |
18.4 |
80.4 |
14191 |
9613 |
0.0754 |
0.125 |
|
3×300 |
20.5 |
85.4 |
16457 |
10735 |
0.0601 |
0.1 |
|
3×400 |
23.5 |
93 |
20188 |
12558 |
0.047 |
0.0778 |
|
3×500 |
26.5 |
100.3 |
24606.3 |
15455 |
0.0366 |
0.0605 |
