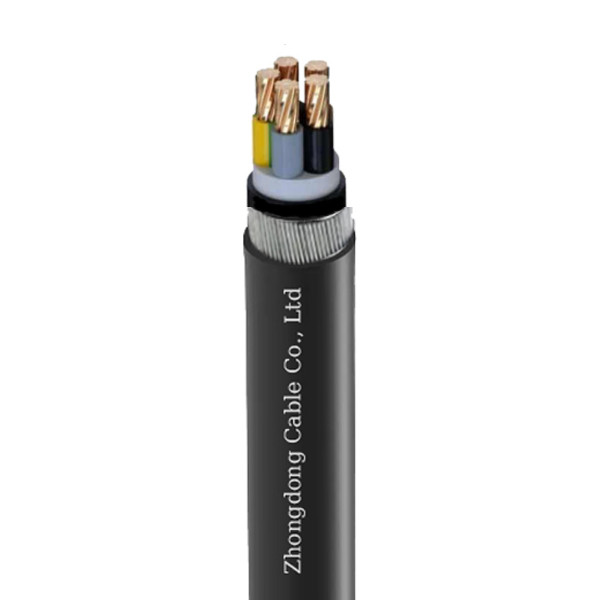

Multi Core Cu Conductor Low Voltage Cable Steel Wire Armour LV Power Cable
| Insulation Material: | XLPE | Type: | LOW VOLTAGE |
| Product name: | Multi Core XLPE Armored Power Cable | Armour: | SWA |
| Sample: | Contact To Get Free Sample | Other Core: | 2 Core, 3 Core, 4 Core, 5 Core |
| Rated Voltage: | 0.6 KV | Working Temperature: | 90°C |
| Standard: | BS 6724 | ||
| High Light: | Multi Core LV Power Cable,Cu Conductor Low Voltage Cable,Steel Wire Armour LV Power Cable |
||
0.6/1kV Cu Conductor XLPE Insulation Low Voltage Cable Steel Wire Armour Power Cable
APPLICATION
The cables are used in power networks, underground, outdoor, indoor and cable ducting where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

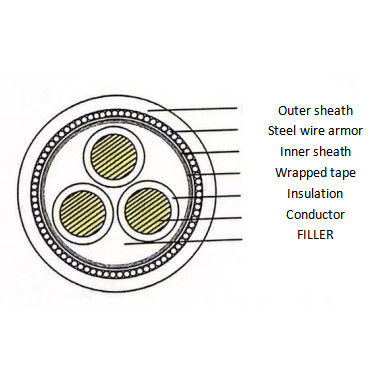

DESIGN & CONSTRUCTION
- CONDUCTOR:Circular, solid, compacted or sector shaped stranded Copper or aluminu
- Insulation: XLPE
- Filler:Non-hygroscopic material
- Inner sheath:PVC
- Armour:Steel Wire Armoured
- Binder type:Non-hygroscopic material
- OUTER Sheath:PVC
STANDARDS
GB/12706.1, IEC60502-1, BS 6724, BS 7870-5,BS 5467, NFC 32-321, HD 603 S1 , AS/NZS 5000.1,AS/NZS 3599.1,AS/NZS 3599.2,IS 1554 , IS 7098 and ICEA S-66-524 etc.
CHARACTERISTICS
- 1.Test Voltage: 3.5kV 5min No Breakdown
- The ambient temperature for installation: ≥0℃.
- Maximum conductor temperature in normal operation:≤90℃.
- Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
- Permissible minimum bending radius:
- Single unarmoured cable: 20 x OD
- Multi-core unarmoured cable: 15 x OD
- Single armoured cable: 5 x OD
- Multi-core armoured cable: 12 x OD
- Note : OD=Overall Diameter of Cable
SPECIFICATIONS
|
General type |
VDE type |
Description |
Application |
|
CU/XLPE/PVC (AL/ XLPE /PVC) |
N2XY(NA2XY) |
Cu conductor(Al conductor)XLPE insulated PVC sheathed power cable |
Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces. |
|
CU/PVC/PE (AL/ XLPE /PE) |
N2X2Y(NA2X2Y) |
Cu conductor(Al conductor)XLPE insulated PE sheathed power cable |
|
|
CU/ XLPE /STA/PVC (AL/XLPE/STA/PVC) |
N2XBY(NA2XBY) |
Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PVC sheathed power cable |
For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
|
CU/XLPE/STA/PE (AL/XLPE/STA/PE) |
N2XB2Y(NA2XB2Y) |
Cu conductor(Al conductor)XLPE insulated double of steel-tape armored PE sheathed power cable |
|
|
CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC) |
N2XBY(NA2XBY) |
Cu conductor(Al conductor)XLPE insulated double of aluminum-tape armored PVC sheathed power cable |
|
|
CU/XLPE/ATA/PE (AL/XLPE/ATA/PE) |
N2XB2Y(NA2XB2Y) |
Cu conductor(Al conductor)XLPE insulated double of aluminum-tape armored PE sheathed power cable |
|
|
CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC) |
N2XRY(NA2XRY) |
Cu conductor(Al conductor)XLPE insulated steel-wire armored PVC sheathed power cable |
For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force |
|
CU/XLPE/SWA/PE (AL/PVC/SWA/PE) |
N2XR2Y(NA2XR2Y) |
Cu conductor(Al conductor)XLPE insulated steel-wire armored PE sheathed power cable |
|
|
CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC) |
N2XRY(NA2XRY) |
Cu conductor(Al conductor)XLPE insulated aluminum-wire armored PVC sheathed power cable |
|
|
CU/XLPE/AWA/PE (AL/XLPE/AWA/PE) |
N2XR2Y(NA2XR2Y) |
Cu conductor(Al conductor)XLPE insulated aluminum-wire armored PE sheathed power cable |
