UV Resistant Medium Voltage Cables with Aluminoum Conductor for Distribution Networks 12/20kV
| Insulation Material: | XLPE | Screen: | Copper Wire |
| Rated Voltage: | 21/35kV | No of Core: | 3 |
| Conductor: | Copper Or Alumnium | Jacket: | PVC |
| High Light: | UV resistant medium voltage cable,aluminum conductor medium voltage cable,12/20kV distribution network cable |
||
UV Resistant Medium Voltage Cables with Aluminoum Conductor for Distribution Networks 12/20kV
Application
This type of cable is primarily used for power transmission and distribution in medium-voltage power systems, making it suitable for urban grids, industrial and mining enterprises, and infrastructure projects where high power supply reliability is required.

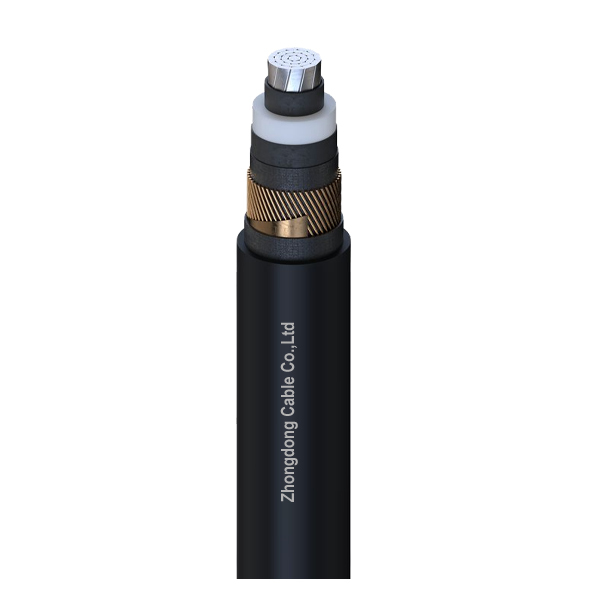

Construction
Conductor:Class 2 Aluminium conductor
Conductor:Semi-conductive material
Insulation:XLPE
Insulation shield:Semi-conductive Material
Metal shielding layer:Copper tape or Copper Wire
Binder tape:Non-woven fabrics
Outer sheath:LSZH
Parameter
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
1×35 |
6.6±0.2 |
20.0 |
27.8 |
965 |
3×35 |
6.6±0.2 |
20.0 |
54.7 |
3330 |
|
|
1×50 |
7.6±0.2 |
21.0 |
28.8 |
1066 |
3×50 |
7.6±0.2 |
21.0 |
57.2 |
3729 |
|
|
1×70 |
9.2±0.2 |
22.6 |
30.6 |
1203 |
3×70 |
9.2±0.2 |
22.6 |
60.8 |
4182 |
|
|
1×95 |
10.9±0.2 |
24.3 |
32.3 |
1340 |
3×95 |
10.9±02 |
243 |
64.8 |
4713 |
|
|
1×120 |
12.2±0.2 |
25.6 |
33.8 |
1483 |
3×120 |
12.2±0.2 |
256 |
67.9 |
5214 |
|
|
1×150 |
13.6±0.2 |
27.0 |
36.5 |
1955 |
3×150 |
13.6±0.2 |
27.0 |
71.2 |
5730 |
|
|
1×185 |
15.2±0.2 |
28.6 |
38.2 |
2164 |
3×185 |
15.2±0.2 |
286 |
75.1 |
6434 |
|
|
1×240 |
17.4±0.2 |
30.8 |
40.6 |
2455 |
3×240 |
17.4±0.2 |
30.8 |
81.6 |
8171 |
|
|
1×300 |
19.5±0.2 |
32.9 |
43.1 |
2773 |
3×300 |
19.5±0.2 |
329 |
86.5 |
9175 |
|
|
1×400 |
220±0.2 |
35.4 |
45.7 |
3217 |
3×400 |
22.0±0.2 |
354 |
92.5 |
10735 |
|
|
1×500 |
24.8±0.2 |
39.0 |
49.7 |
3750 |
3×500 |
24.8±0.2 |
39.0 |
100.8 |
12512 |
|
|
1×630 |
282±0.2 |
42.4 |
53.4 |
4360 |
3×630 |
28.2±0.2 |
42.4 |
108.7 |
14530 |
|
|
1×800 |
34.0±0.2 |
48.2 |
59.4 |
5192 |
|
|
|
|
|
