Detail Information

Insulation Material:	XLPE	Screen:	Copper Wire
Rated Voltage:	21/35kV	No Of Core:	3
Conductor:	Copper Or Alumnium	Jacket:	PVC

Product Description

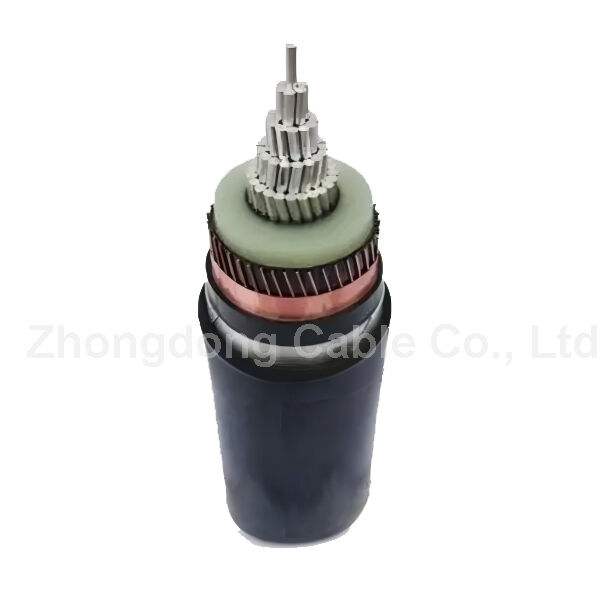

STA Armored MV Power Cable 8.7/15kV Single Core XLPE PVC for Construction Overhead Underground Power Stations

Application

These cables have the advantage of simplicity in construction, lightness in weight; onvenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.

Construction

Conductor: Tightly press round conductor

Conductor Screen:Semi-conductive shield

Insulation:XLPE

Insulation shield:Semi-conductive shield

Metal shielding layer:Copper tape: Copper Wire:35kV above 500mm2

Binder tape:Non-woven fabrics

Isolation sleeve:Polyvinyl chloride(PVC)

Armour:Non-magnetic steel wire

Outer sheath:Polyvinyl chloride (PVC)

Characteristic

Voltage Rating Uo/U(U_M)

3.6/6(7.2)kV 6/6(7.2)kV 6/10(12)kV 8.7/10(12)kV 8.7/15(17.5)kV 12/20(24)kV

18/20(24)kV 18/30(36kV ) 21/35(40.5)kV 26/35(40.5)kV

Maximum operating temperature of conductor:+90℃

Operating ambient temperature: -15℃~+55℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius

Single core:15D

Multicire: 12D

(D is the actual outer diameter of the cable)

Parameter

Specs mm²	Conductor diameter mm	Nominal thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km	Specs mm²	Conductor diameter mm	Nominal thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km
1×50	7.6±0.2	312	43.5	3713	3x50	3x50	3x50	3x50	3x50
1×70	9.2±0.2	32.8	45.2	4091	3x70	3x70	3x70	3x70	3x70
1×95	10.9±0.2	34.5	46.9	4499	3x95	3x95	3x95	3x95	3x95
1×120	12.2±0.2	35.8	48.4	4893	3x120	3x120	3x120	3x120	3x120
1×150	13.6±0.2	372	50.1	5317	3x150	3x150	3x150	3x150	3x150
1×185	15.2±0.2	38.8	51.7	5798	3x185	3x185	3x185	3x185	3x185
1×240	17.4±0.2	41.0	53.9	6544	3x240	3x240	3x240	3x240	3x240
1×300	19.5±0.2	43.1	56.4	7375	3x300	3x300	3x300	3x300	3x300
1×400	22.0±0.2	45.6	59.2	8392	3x400	3x400	3x400	3x400	3x400
1×500/35	24.8±0.2	492	65.4	10198	3x500/35	3x500/35	3x500/35	3x500/35	3x500/35
1×630/35	28.2±0.2	52.6	69.1	11876	3x630/35	3x630/35	3x630/35	3x630/35	3x630/35
1×800/35	34.0±0.2	58.4	76.9	15153

This table shows 21/36kv data, for more voltage, please contact us for details

About us

STA Armored MV Power Cable 8.7/15kV Single Core XLPE PVC for Construction Overhead Underground Power Stations 0

Application

STA Armored MV Power Cable 8.7/15kV Single Core XLPE PVC for Construction Overhead Underground Power Stations 1

Package

Partner

STA Armored MV Power Cable 8.7/15kV Single Core XLPE PVC for Construction Overhead Underground Power Stations 3

FAQ

What types of cables do you manufacture?

A: We manufacture a wide range of cables, including LV, MV, HV cable, overhead aerial cable, overhead bare conductor, electric wire, communication cables, instrumentation cables, control cables, and many others.
Can you customize cables according to our specific requirements? A: Yes, we offer OEM and customized cable manufacturing services. We can work with you to design and manufacture cables that meet your specific needs.
What is your production capacity? A: we have the capability to manufacture large volumes of cables to meet customer demand.
What quality certifications do you hold? A: We hold various quality certifications such as ISO,CE, EAC, IEC TUV and etc, and many others to ensure that our cables meet the highest quality standards.
What is the lead time for cable manufacturing? A: Standard 7-30 days depand on the order quantity.
What is your payment and shipping policy? A: We accept various payment methods, such as L/C, T/T, Our shipping policy depends on the destination and order volume. We work with reputable shipping companies to ensure timely and safe delivery of our products.
What is your warranty policy? A: We offer a warranty for our products, which varies depending on the type of cable and application. We stand behind the quality of our cables and strive to provide our customers with the best possible service and support.
