Fire Resistant MV Power Cable CU/XLPE/CTS/CWS/SWA/FR-PVC Cable for Outgoing Line of Power Station
| Insulation Material: | XLPE | Screen: | Copper Wire |
| Rated Voltage: | 21/35kV | No of Core: | 3 |
| Conductor: | Copper Or Alumnium | Jacket: | PVC |
| High Light: | fire resistant MV power cable,XLPE armored power station cable,FR-PVC medium voltage cable |
||

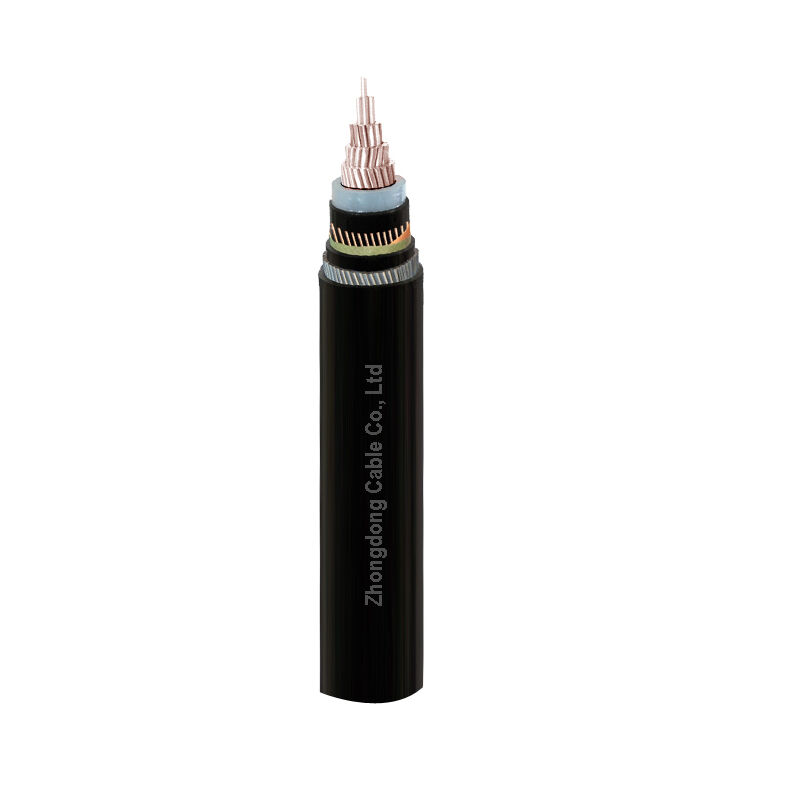

Fire Resistant MV Power Cable CU/XLPE/CTS/CWS/SWA/FR-PVC Cable for Outgoing Line of Power Station
Application
This product is suitable for power supply lines with flame retardant requirements, such as urban underground power grids, power station outgoing lines, and internal power lines of industrial and mining enterprises.
Construction
Conductor: Tightly press round conductor
Conductor Screen:Semi-conductive shield
Insulation:XLPE
Insulation shield:Semi-conductive shield
Metal shielding layer:Copper tape: Copper Wire:35kV above 500mm2
Binder tape:Non-woven fabrics
Isolation sleeve:Polyvinyl chloride(PVC)
Armour:Non-magnetic steel wire
Outer sheath:Polyvinyl chloride (PVC)
Characteristic
Voltage Rating Uo/U(UM)
3.6/6(7.2)kV 6/6(7.2)kV 6/10(12)kV 8.7/10(12)kV 8.7/15(17.5)kV 12/20(24)kV
18/20(24)kV 18/30(36kV ) 21/35(40.5)kV 26/35(40.5)kV
Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -15℃~+55℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius
Single core:15D
Multicire: 12D
(D is the actual outer diameter of the cable)
Parameter
|
Specs mm² |
Conductor diameter mm |
Nominal thickness of insulation ±1.0mm |
Approx outer diameter of cable mm |
Approx cable weight kg/km |
|
Specs mm² |
Conductor diameter mm |
Nominal thickness of insulation ±1.0mm |
Approx outer diameter of cable mm |
Approx cable weight kg/km |
|
1×50 |
7.6±0.2 |
312 |
43.5 |
3713 |
|
3x50 |
3x50 |
3x50 |
3x50 |
3x50 |
|
1×70 |
9.2±0.2 |
32.8 |
45.2 |
4091 |
|
3x70 |
3x70 |
3x70 |
3x70 |
3x70 |
|
1×95 |
10.9±0.2 |
34.5 |
46.9 |
4499 |
|
3x95 |
3x95 |
3x95 |
3x95 |
3x95 |
|
1×120 |
12.2±0.2 |
35.8 |
48.4 |
4893 |
|
3x120 |
3x120 |
3x120 |
3x120 |
3x120 |
|
1×150 |
13.6±0.2 |
372 |
50.1 |
5317 |
|
3x150 |
3x150 |
3x150 |
3x150 |
3x150 |
|
1×185 |
15.2±0.2 |
38.8 |
51.7 |
5798 |
|
3x185 |
3x185 |
3x185 |
3x185 |
3x185 |
|
1×240 |
17.4±0.2 |
41.0 |
53.9 |
6544 |
|
3x240 |
3x240 |
3x240 |
3x240 |
3x240 |
|
1×300 |
19.5±0.2 |
43.1 |
56.4 |
7375 |
|
3x300 |
3x300 |
3x300 |
3x300 |
3x300 |
|
1×400 |
22.0±0.2 |
45.6 |
59.2 |
8392 |
|
3x400 |
3x400 |
3x400 |
3x400 |
3x400 |
|
1×500/35 |
24.8±0.2 |
492 |
65.4 |
10198 |
|
3x500/35 |
3x500/35 |
3x500/35 |
3x500/35 |
3x500/35 |
|
1×630/35 |
28.2±0.2 |
52.6 |
69.1 |
11876 |
|
3x630/35 |
3x630/35 |
3x630/35 |
3x630/35 |
3x630/35 |
|
1×800/35 |
34.0±0.2 |
58.4 |
76.9 |
15153 |
|
|
|
|
|
|
This table shows 21/36kv data, for more voltage, please contact us for details
