ARE4H5E HD620 18/30KV Medium Voltage Cable Aluminum Conductor XLPE Insulation PE Jacket
| Voltage: | 18/30KV | Insulation: | XLPE |
| Jacket: | PE | No of Core: | 1 |
| Metal shielding layer: | Aluminum Strip | Conductor: | Aluminum |
| Cross-sectional area: | 1*120mm²,1*150mm²,1*185mm²,1*240mm²,1*300mm²,1*400mm²,1*500mm²,1*630mm², | ||
| High Light: | Medium Voltage Cable Aluminum Conductor,HD620 XLPE Insulation Cable,18/30KV PE Jacket Cable |
||
ARE4H5E HD620 18/30KV Medium Voltage Cable Aluminum Conductor XLPE Insulation PE Jacket
APPLICATION
For fixed installation applications in indoor or outdoor environments, including aerial, direct burial, and indirect burial.

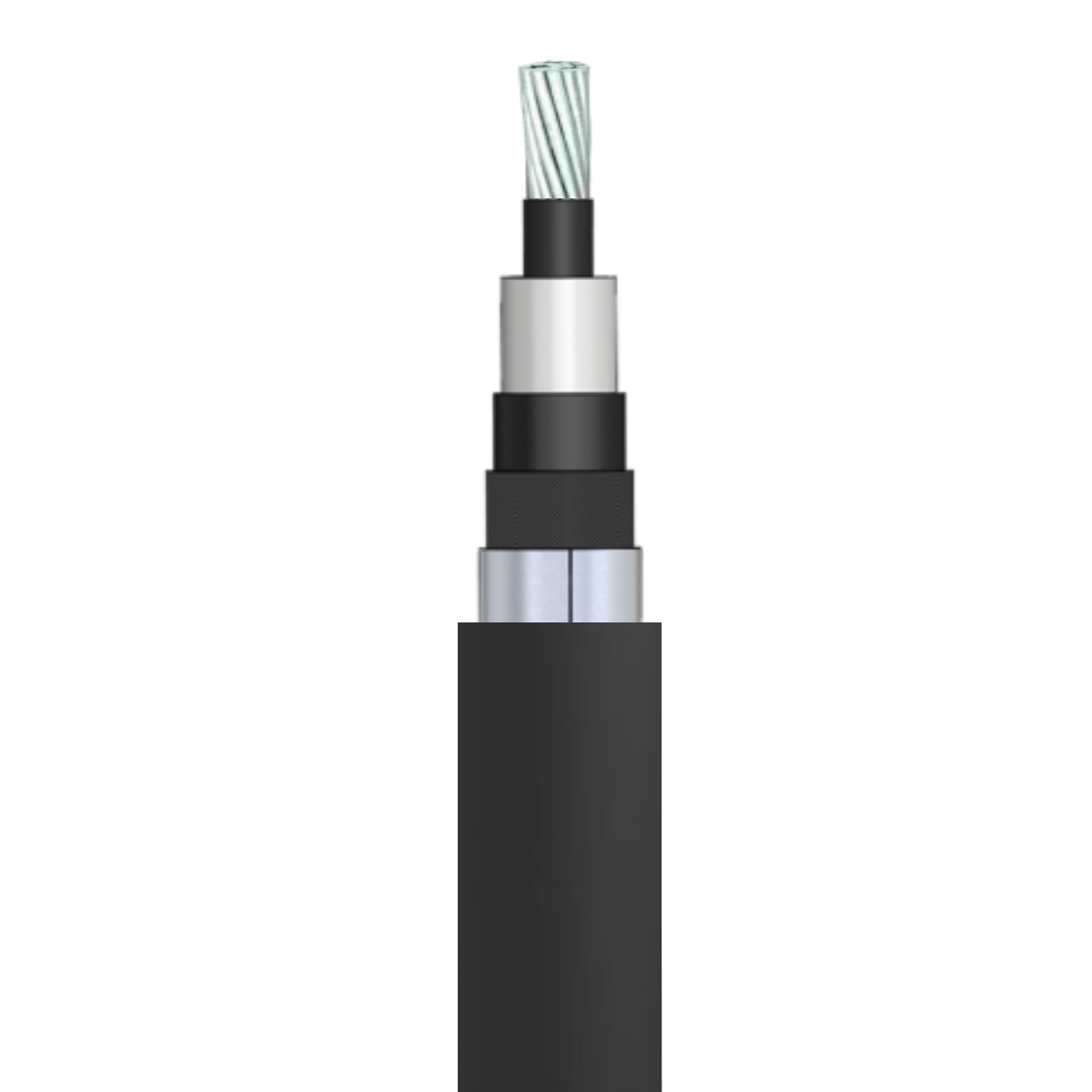

CONSUCTRUCTION
- Conductor: Aluminium
- Conductor Screen:Semi-conductive material
- Insulation: XLPE (Cross-Linked Polyethylene)
- Insulation Screen:extruded semiconducting compound (bonded)
- Longitudinal semiconducting water blocking tape.
- ScreenZ: :Aluminium tape longitudinally applied
- Outer Sheath: PE.
ABOUT US
APPLICATION
WHY CHOOSE US
PARTNER
FAQ
1.What is an ARE4H5E cable?
ARE4H5E is a medium-voltage power distribution cable that conforms to the EU harmonized standard HD 620.
2.What are the characteristics of ARE4H5E cable?
The cable design incorporates aluminum tape shielding, providing excellent protection against compression and impact.
3.In which scenarios is the ARE4H5E cable commonly used?
Urban underground power grid,Power trunk lines in industrial parks,Power supply systems for large buildings or infrastructure,Internal connections of power plants and substations.
-
