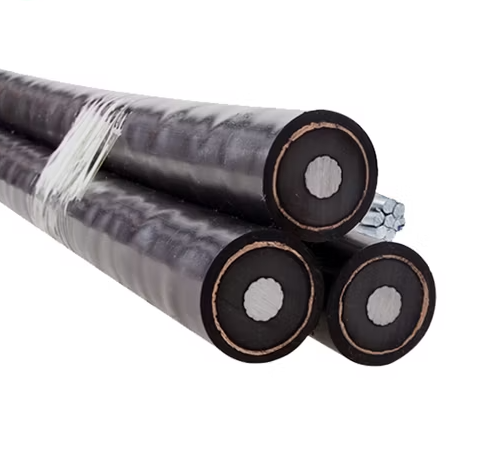

19/33kV Rated XLPE Insulated Medium Voltage MV ABC Cable with Copper Wire Screen

19/33kV Rated XLPE Insulated Medium Voltage MV ABC Cable with Copper Wire Screen
19/33kV Rated XLPE Insulated Medium Voltage MV ABC Cable with Copper Wire Screen 19/33kV Rated XLPE Insulated Medium Voltage MV ABC Cable with Copper Wire Screen
Basic Information
Place of Origin: Hebei，China
Brand Name: MV ABC Cable
Certification: CCC,ISO,TUV,CE
Model Number: ABC
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum/ Steel Drum
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Get Best Price Contact Now
Detail Information
Application: Overhead Distribution Line Cores Nos: 1,2,3,4 More Multicore
Rated Voltage: 15/35kV Installation Degree: -20℃-90℃
Neutral Messengers: AAC, AAAC Or ACSR Insulation: PE/PVC
Highlight:

19/33kV MV ABC cable

,

screened medium voltage cable

,

IEC 60502 compliant MV cable

Product Description

19/33kV Screened Medium Voltage MV ABC Cable
IEC 60502 Compliant 3X150mm + 1X50mm Configuration
Applications
  • Suitable for indoor/outdoor installations, cable trenches, tunnels, and underground or underwater deployments
  • Used in power distribution networks, substations, and industrial plants requiring 19/33kV voltage levels
  • Ideal for magnetic duct-free environments (single-core cables are restricted in magnetic ducts)
Construction
  • Conductor: Circular Compacted Stranded H68 Aluminium (Class 2)
  • Conductor Screen: Extruded Semi-conductive Layer
  • Insulation: XLPE
  • Insulation Screen: Extruded Semi-conductive Layer
  • Metallic Screen: Copper wire screen or copper tape screen
  • Outer Sheath: HDPE
  • Support Conductor: Galvanized steel wires
19/33kV Rated XLPE Insulated Medium Voltage MV ABC Cable with Copper Wire Screen 0 19/33kV Rated XLPE Insulated Medium Voltage MV ABC Cable with Copper Wire Screen 1
Characteristics
  • Voltage rating: 19/33kV
  • Normal operation: 90°C
  • Emergency overload conditions: 130°C
  • Short circuit conditions: 250°C
Specifications
NO. Cores X Nominal Cross Section Phase Conductor Messenger Suspension Unit Continuous Current Rating at 30°C Ambient Temp
No.*mm² Stranding Nominal Sectional Area mm² Breaking Load KN A
3X50 + 1X50 19/1.78 50 7/3.0 50 60 165
3X150 + 1X50 37/2.25 150 7/3.0 50 60 315
3X185 + 1X70 37/2.52 185 7/3.57 70 91 355
3X70 + 1X50 19/2.14 70 7/3.15 50 62 250
3X150 + 1X50 37/2.25 150 7/3.15 50 62 370
About Our Company
19/33kV Rated XLPE Insulated Medium Voltage MV ABC Cable with Copper Wire Screen 2
Why Choose Us
19/33kV Rated XLPE Insulated Medium Voltage MV ABC Cable with Copper Wire Screen 3
Projects
19/33kV Rated XLPE Insulated Medium Voltage MV ABC Cable with Copper Wire Screen 4
Package
19/33kV Rated XLPE Insulated Medium Voltage MV ABC Cable with Copper Wire Screen 5
Partners
19/33kV Rated XLPE Insulated Medium Voltage MV ABC Cable with Copper Wire Screen 6 19/33kV Rated XLPE Insulated Medium Voltage MV ABC Cable with Copper Wire Screen 7
Frequently Asked Questions
What is the standard compliance of this cable?
The cable complies with IEC 60502-2 for medium-voltage XLPE-insulated power cables, ensuring global reliability.
What materials are used in the cable construction?
Conductor: Aluminum (Class 2 stranded); Insulation: XLPE; Screening: Semiconducting layer; Sheath: PVC or HDPE for outdoor durability.
What are the typical applications?
Suitable for overhead, underground, and industrial installations in power distribution networks, substations, and renewable energy projects.
What is the voltage rating and configuration?
Rated for 19/33kV, with a 3+1 core configuration (3x150mm² phase conductors + 1x50mm² neutral conductor).
Does the cable include armor protection?
Available with steel wire armor (SWA) or galvanized steel tape for mechanical protection in harsh environments.
What certifications does the cable meet?
Certified to ISO, CCC, CE, and VDE standards, ensuring international market acceptance.
What is the minimum order quantity (MOQ)?
Flexible MOQ requirement.
Can the cable be customized?
Yes, options include voltage ratings (11-35kV), conductor materials (aluminum/copper), and sheath colors.
What are the temperature and environmental limits?
Operating temperature: -40°C to +90°C; UV-resistant sheath for outdoor use.
Where can I request samples or technical support?
Contact us for samples, datasheets, and project-specific advice.
