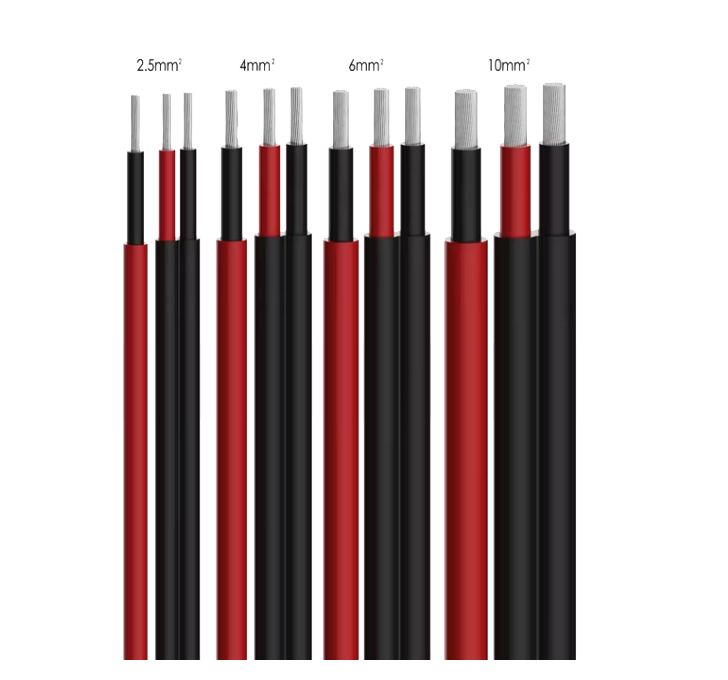

Photovoltaic PV Solar DC Cable H1Z2Z2-K 1.5~240mm² 1500V
| Jacket: | Halogen Free Flame Retardant Sheath Material For Solar Cables | Conductor Material: | Class 5 Tinned Copper |
| Application: | Solar Farm | Core: | 1 Core |
| Colour: | Black /red Colours Available On Request | Voltage: | 1500V |
| High Light: | Photovoltaic solar DC cable H1Z2Z2-K,Solar cable 240mm² 1500V,PV solar cable with warranty |
||
Photovoltaic PV Solar DC Cable H1Z2Z2-K 1.5~240mm² 1500V
APPLICATION
-
Renewable Energy Systems
Widely used in photovoltaic power plants for connecting solar panels to inverters
Suitable for both rooftop and ground-mounted solar arrays due to its UV-resistant properties -
Industrial Automation
Deployed in control cabinets for motor connections in manufacturing lines
Used as trailing cables in cranes and robotic systems (flexible variant available) -
Infrastructure Projects
Approved for underground installations in commercial buildings (tested to 90°C)
Common in tunnel lighting systems where halogen-free properties are required -
Specialized Environments
Marine applications due to its oil-resistant sheath (oil-resistant variant H1Z2Z2-KO)
Mining equipment connections with enhanced mechanical protection
CONSTRUCTION
Conductor:Class 5 tinned copper conductors
Insulation:Halogen free flame-retardant insulation material for solar cables
Outer sheath:Halogen free flame retardant sheath material for solar cables
STANDARD
EN50618:2014
CHARACTERISTIC
- AC Voltage Rating Uo/U:1.0/1.0kV
- DC Voltage Rating Uo/U:1.5kV
- Maximum operating temperature of conductor:+120℃
- Operating ambient temperature: -40℃~+90℃
- Cable laying temperature:Not less than -25℃
- Minimum Bending Radius: Single core:6D (D is the actual outer diameter of the cable)
SPCIFICATION
|
Cross section(mm²) |
Conductor Construction(no/mm) |
Conductor Stranded OD.max(mm) |
Cable OD.(mm) |
Approximate weight of cable |
Max Conductor Resistance(Ω/km,20°C) |
|
1×1.5 |
48/0.20 |
1.58 |
4.8 |
35 |
13.7 |
|
1×2.5 |
77/0.20 |
2.02 |
5.2 |
47 |
8.21 |
|
1×4 |
56/0.285 |
2.46 |
5.7 |
64 |
5.09 |
|
1×6 |
84/0.285 |
3.01 |
6.3 |
86 |
3.39 |
|
1×10 |
77/0.40 |
4.1 |
7.2 |
128 |
1.95 |
|
1×16 |
7×17/0.40 |
5.5 |
8.9 |
196 |
1.24 |
|
1×25 |
7×27/0.40 |
6.7 |
10.7 |
299 |
0.795 |
|
1×35 |
7×38/0.40 |
8.2 |
12.4 |
407 |
0.565 |
|
1×50 |
19×20/0.40 |
10.0 |
14.6 |
571 |
0.393 |
|
1×70 |
19×28/0.40 |
11.6 |
16.4 |
773 |
0.277 |
|
1×95 |
19×38/0.40 |
13.5 |
18.5 |
1024 |
0.210 |
|
1×120 |
24×38/0.40 |
14.4 |
19.8 |
1266 |
0.164 |
|
1×150 |
30×38/0.40 |
16.2 |
22.2 |
1584 |
0.132 |
|
1×185 |
37×38/0.40 |
18.2 |
25.0 |
1967 |
0.108 |
|
1×240 |
48×38/0.40 |
20.6 |
27.8 |
2518 |
0.0817 |
FACTORY
PROJECT
PACKAGE
FAQ
Q: What is the H1Z2Z2-K cable used for?
A: It is a solar photovoltaic cable designed for DC power transmission in solar systems, connecting panels to inverters or junction boxes
Q: What standards does H1Z2Z2-K comply with?
A:Complies with EN 50618:2014 (European standard) and often carries TUV/CE certifications for safety and performance
Q: What conductor material is used?
A: Features 5-class stranded tinned copper wire for low resistance and corrosion resistance
Q: What is the maximum operating temperature?
A: 120℃ for conductors and 90℃ for ambient use, with short-term tolerance up to 200℃ (5 seconds)
Q: What insulation and sheath materials are used?
A: Cross-linked polyethylene (XLPO) insulation and sheath, offering flame-retardant, halogen-free, and UV-resistant properties
Q:What is the rated voltage?
A: DC 1.5kV (maximum permissible voltage: 1.8kV)
Q: What colors are available for the outer sheath?
A: Typically black or red for polarity identification
Q:How is the cable installed?
A: Suitable for direct burial, overhead, or conduit installations due to its weatherproof design
Q: What is the lifespan of the H1Z2Z2-K cable?
A: ≥25 years under normal conditions, resistant to aging and environmental stress
-
