Insulation:	XLPE HPDE	Voltage:	12/20kV
Conductor Material:	Aluminium Alloy Conductor	Application:	Overhead Or Underground,Pipe Laying, Trench Laying, Tunnel Laying, Vertical Shaft And Bridge Laying
Shield:	Copper Wire Or Copper Tape	No Of Core:	Single Core
Highlight:	3 core XLPE insulated power cable , aluminium conductor STA armoured cable , NA2XBY armoured power cable

Product Description

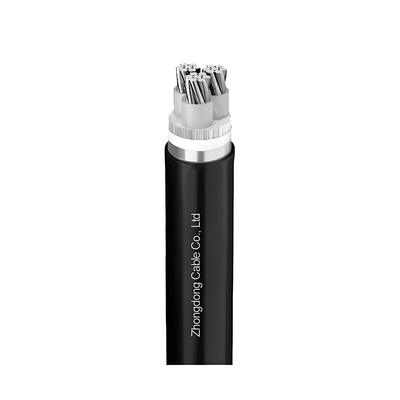

3 Core XLPE Insulated Aluminium Conductor STA Armoured Power Cable NA2XBY

APPLICATION

Primarily used in power supply stations, industrial facilities, and switchboards
Suitable for indoor installation in cable ducts and outdoor environments
Can be installed underground and in water applications
Commonly employed in power distribution systems for industries
Used in cable tray installations for various industrial applications

CONSTRUCTION

‌Conductor: Class 2 stranded aluminum conductors (complying with EN60228 standard)
‌Insulation:Cross-linked polyethylene (XLPE) insulation material
‌Inner Sheath:PVC inner protective layer (optional component)
‌Shielding:Copper tape screen (CTS) for electromagnetic protection
‌Armor:Double galvanized steel tape armor (ATA) for mechanical strength
‌Outer Sheath:PVC outer protective covering

3 Core XLPE Insulated Aluminium Conductor STA Armoured Power Cable NA2XBY 0

CHARACTERISTICS

Operating temperature up to 90°C (XLPE insulation)
Short circuit temperature withstand up to 250°C (5 seconds maximum)
Minimum bending radius of 20 times the outer diameter
Available in voltage rating of 0.6/1 kV
Optional special features include oil resistance, UV resistance, and flame retardant propertie

STANDARD

IEC60502-1

SPECIFICATIONS

Number of cores and nominal cross section	Aluminium figure	Overall diameter appr.	Weight appr.	Current carrying capacity ground	Current carrying capacity air
mm2	kg/km	mm	kg/km	A	A
1 x 25 RM	74,0	11	174,0	106	87
1 x 35 RM	103,0	12	209,0	127	107
1 x 50 RM	147,0	14	282,0	151	131
1 x 70 RM	206,0	16	363,0	185	166
1 x 95 RM	279,0	18	520,0	222	205
1 x 120 RM	353,0	19	557,0	253	239
1 x 150 RM	441,0	21	674,0	284	273
1 x 185 RM	544,0	24	826,0	322	317
1 x 240 RM	706,0	26	1.052,0	375	378
1 x 300 RM	882,0	29	1.282,0	425	437
1 x 400 RM	1.200,0	32	1.598,0	487	513
1 x 500 RM	1.510,0	36	2.022,0	558	600
1 x 630 RM	1.900,0	40	2.200,0	635	701
3 x 240/120 SM	2.470,0	55	4.215,0	364	338
4 x 25 RM	294,0	25	887,0	102	82
4 x 35 SM	412,0	26	796,0	123	100
4 x 50 SM	588,0	27	1.017,0	144	119
4 x 70 SM	823,0	30	1.312,0	179	152
4 x 95 SM	1.117,0	34	1.698,0	215	186
4 x 120 SM	1.411,0	40	2.459,0	245	216
4 x 150 SM	1.764,0	43	2.594,0	275	246
4 x 185 SM	2.176,0	50	3.777,0	313	285
4 x 240 SM	2.822,0	54	4.106,0	364	338
4 x 150 SE	1.764,0	45	2.594,0	275	246
5 x 25 RM	368,0	26	1.018,0	102	81
5 x 35 RM	515,0	30	1.316,0	121	99
5 x 50 SM	781,0	32	1.549,0	144	119
5 x 70 SM	1.071,0	37	2.021,0	179	152
5 x 95 SM	1.484,0	41	2.598,0	215	186
5 x 120 SM	1.875,0	47	3.201,0	245	216

OUR FACTORY

3 Core XLPE Insulated Aluminium Conductor STA Armoured Power Cable NA2XBY 1

PROJECTS

3 Core XLPE Insulated Aluminium Conductor STA Armoured Power Cable NA2XBY 2

PARTNERS

3 Core XLPE Insulated Aluminium Conductor STA Armoured Power Cable NA2XBY 3

FAQ

‌Q1: What is NA2XBY cable?‌
A: It's a medium-voltage power cable with aluminum conductors, XLPE insulation, copper tape screening, and steel tape armor, mainly used in industrial power distribution systems

‌Q2: What do the letters in "NA2XBY" stand for?‌
A:N: German standard (DIN VDE 0276)

A: Aluminum conductor

2X: XLPE insulation

B: Steel tape armor (galvanized)

Y: PVC outer sheath

‌‌Q3: Where is this cable typically installed?‌
A3: Suitable for indoor cable ducts, outdoor environments, underground, and underwater applications

‌Q4: How does it compare to similar cables like NA2XSY?‌
A4: NA2XBY uses PVC sheath (Y) while NA2XSY may use PE sheath, with both sharing similar core construction

‌Q5: What are common installation precautions?‌
A5: Avoid sharp bends (>20× diameter), protect from mechanical damage during laying, and ensure proper grounding of screens

Tag:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Minimum Order Quantity:	To be negotiated
Price:	To be negotiated
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

3 Core XLPE Insulated Aluminium Conductor STA Armoured Power Cable NA2XBY

3 core XLPE insulated power cable

aluminium conductor STA armoured cable

NA2XBY armoured power cable
