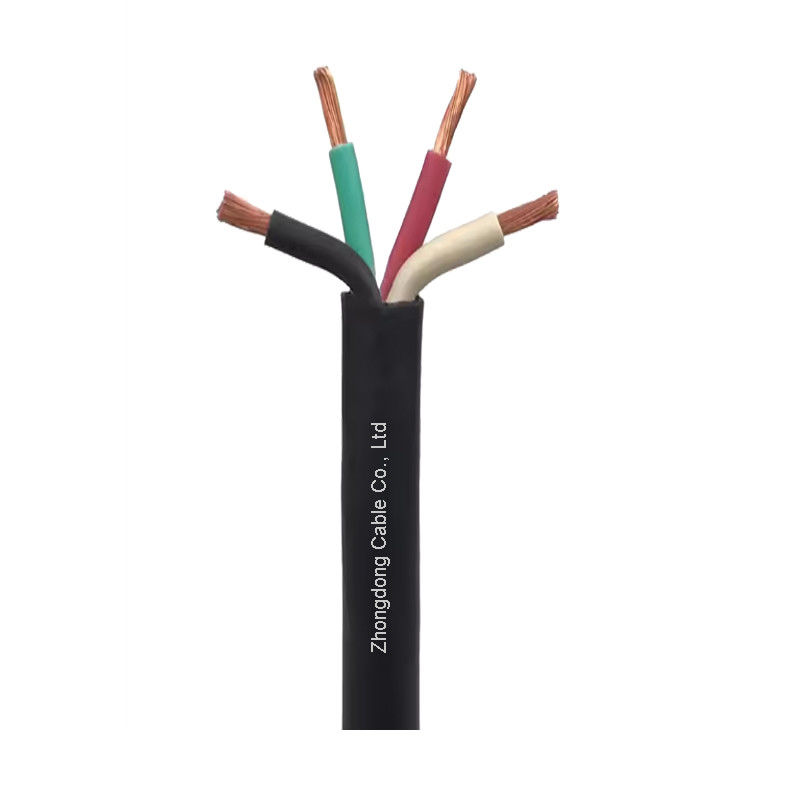

AWG Flexible Rubber Low Voltage Cable 300V 600V Rubber Power Cable for Construction
| Application: | Construction | Sheath: | Rubber |
| Insulation Options: | PVC, Rubber, Or EPR | Metric Cross-Sections: | 10mm² To 240mm² |
| Conductor Material: | Copper | Color: | Black, Orange, Red, Etc. |
| High Light: | 600V Construction Rubber Power Cable,Flexible Rubber Low Voltage Cable |
||
AWG Flexible Rubber Cable Low Voltage Cable 300V/600V
Application
Portable tools, equipment, small motors and associated machinery, appliances, equipment exposed to oils, solvents, flame, moisture and other electrical equipment where flexibility and durability are required
Construction
- Conductor: Highly flexible bare annealed copper or tinned copper wire
- Insulation Options: PVC, Rubber, or EPR (Ethylene Propylene Rubber)
- Sheath Variants:Natural rubber (YH type);Chloroprene/synthetic rubber (YHF type)
- Alternative options: PVC or CSP (Chlorosulfonated Polyethylene)
Specification
|
AWG Size |
No. of Cond. |
Conductor Stranding |
Nom. O.D. of Cable (in) |
Amps |
|
18 |
2 |
16/30 |
0.345 |
10 |
|
18 |
3 |
16/30 |
0.365 |
10 |
|
18 |
4 |
16/30 |
0.39 |
7 |
|
18 |
5 |
16/30 |
0.47 |
5.6 |
|
18 |
6 |
16/30 |
0.49 |
5.6 |
|
18 |
7 |
16/30 |
0.52 |
4.9 |
|
18 |
8 |
16/30 |
0.53 |
4.9 |
|
18 |
9 |
16/30 |
0.555 |
4.9 |
|
18 |
10 |
16/30 |
0.575 |
3.5 |
|
18 |
12 |
16/30 |
0.6 |
3.5 |
|
18 |
14 |
16/30 |
0.64 |
3.5 |
|
18 |
16 |
16/30 |
0.7 |
3.5 |
|
18 |
20 |
16/30 |
0.75 |
3.5 |
|
18 |
22 |
16/30 |
0.805 |
3.1 |
|
18 |
24 |
16/30 |
0.805 |
3.1 |
|
18 |
30 |
16/30 |
0.88 |
3.1 |
|
18 |
50 |
16/30 |
1.1 |
2.5 |
|
16 |
2 |
26/30 |
0.37 |
13 |
|
16 |
3 |
26/30 |
0.39 |
13 |
|
16 |
4 |
26/30 |
0.42 |
10 |
|
16 |
5 |
26/30 |
0.5 |
8 |
|
16 |
6 |
26/30 |
0.53 |
8 |
|
16 |
7 |
26/30 |
0.53 |
7 |
|
16 |
8 |
26/30 |
0.565 |
7 |
|
16 |
9 |
26/30 |
0.6 |
7 |
|
16 |
10 |
26/30 |
0.615 |
5 |
|
16 |
12 |
26/30 |
0.7 |
5 |
|
16 |
14 |
26/30 |
0.725 |
5 |
|
16 |
16 |
26/30 |
0.76 |
5 |
|
16 |
18 |
26/30 |
0.795 |
5 |
|
16 |
20 |
26/30 |
0.825 |
5 |
|
16 |
24 |
26/30 |
0.875 |
4.5 |
|
16 |
37 |
26/30 |
1.065 |
4 |
|
16 |
39 |
26/30 |
1.08 |
4 |
|
16 |
40 |
26/30 |
1.1 |
4 |
|
16 |
44 |
26/30 |
1.18 |
4 |
|
16 |
60 |
26/30 |
1.335 |
3.5 |
