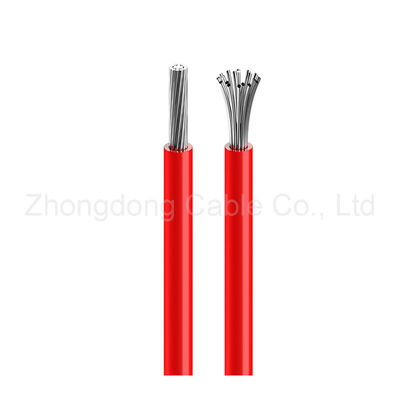

PV1-F Solar Panel Cables Electric PV Wire 50mm 70mm With Copper Conductor

Basic Properties
Place of Origin: Hebei，China
Brand Name: PV1-F Solar Cable
Certification: ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Model Number: PV1-F
Trading Properties
Minimum Order Quantity: To be negotiated
Price: To be negotiated
Payment Terms: T/T,L/C
Supply Ability: 100KM/Week
Tags

Solar Panel Cable

Photovoltaic Solar Cable

PV Solar Cable
Specifications
Uv Resistance: Yes Insulation Material: Cross-linked Polyethylene (XLPE)
Certifications: TUV, UL, CE Conductor Material: Tinned Copper
Halogen Free: Yes Application: Solar Power Systems
High Light:

PV1-F Solar Panel Cables

,

Copper Conductor Electric PV Wire
Product Description

PV1-F Solar Cable Electric PV Wire 50MM 70MM Copper Conductor



Application

V1-F cable is specifically designed for photovoltaic (PV) systems, serving as a critical component in solar energy installations. Its primary applications include:

  1. ‌Interconnecting solar panels‌: Used to link photovoltaic modules in arrays.
  2. ‌DC side wiring‌: Connects solar panels to inverters, charge controllers, or junction boxes.
  3. ‌Outdoor and indoor installations‌: Suitable for both rooftop PV systems and large-scale solar farms.
  4. ‌Exposed or fixed installations‌: Can be mounted on cable trays, conduits, or directly on surfaces, thanks to its UV and weather resistance.

PV1-F Solar Panel Cables Electric PV Wire 50mm 70mm With Copper Conductor 0PV1-F Solar Panel Cables Electric PV Wire 50mm 70mm With Copper Conductor 1





Cable performance



        Properties such as moisture and heat resistance, high and low temperature resistance, acid and alkali resistance,ozone resistance, UV resistance, flame retardancy, etc







Description



  1. AC rated voltage(U0/U):0.6/1.0kV
  2. DC rated volate(U0):1.8kV
  3. Minimum bending radius: Φ ≦ 12mm:3XD   Φ > 12mm:4XD
  4. Maximum Voltage: Ambient Temperature: -40℃ ℃~ +90℃
  5. Short Circuit Temperature: 200℃/5 sec



Thermal Properties:



  1. Maximum Voltage: Ambient Temperature: -40ºC ~ +90ºC
  2. Maximum Temperature at Conductor: 120ºC (20000h) according to IEC/EN 60216-1
  3. Short Circuit Temperature: 200ºC/5 seconds
  4. Thermal Endurance Test: According to EN 60216-2 (temperature index +120° C)
  5. High Temperature Pressure Test: According to EN 60811-3-1
  6. Damp-Heat Resistance: According to EN 60068-2-78 with 85% humidity



Specifications





Cross section(mm²)

Conductor Construction(no/mm)

Conductor Stranded OD.max(mm)

Cable OD.(mm)

Approximate weight of cable
kg/km

Max Cond Resistance(Ω/km,20°C)

1×1.5

48/0.20

1.58

4.8

35

13.7

1×2.5

77/0.20

2.02

5.2

47

8.21

1×4

56/0.285

2.46

5.7

64

5.09

1×6

84/0.285

3.01

6.3

86

3.39

1×10

77/0.40

4.1

7.2

128

1.95

1×16

7×17/0.40

5.5

8.9

196

1.24

1×25

7×27/0.40

6.7

10.7

299

0.795

1×35

7×38/0.40

8.2

12.4

407

0.565

1×50

19×20/0.40

10.0

14.6

571

0.393

1×70

19×28/0.40

11.6

16.4

773

0.277

1×95

19×38/0.40

13.5

18.5

1024

0.210

1×120

24×38/0.40

14.4

19.8

1266

0.164

1×150

30×38/0.40

16.2

22.2

1584

0.132

1×185

37×38/0.40

18.2

25.0

1967

0.108

1×240

48×38/0.40

20.6

27.8

2518

0.0817
