Solid Stranded 70Sq.Mm Bare Copper Conductor For Overhead Power Line
| Range Of Application: | Overhead Transmission | Material: | Copper |
| Drum Packing: | Steel Wooden Drum | Per Drum Weight: | As Per Request |
| Voltage: | Up To 110KV | Product: | Bare Conductor |
| High Light: | 70Sq.Mm Bare Copper Conductor,Solid Stranded Bare Copper Conductor |
||

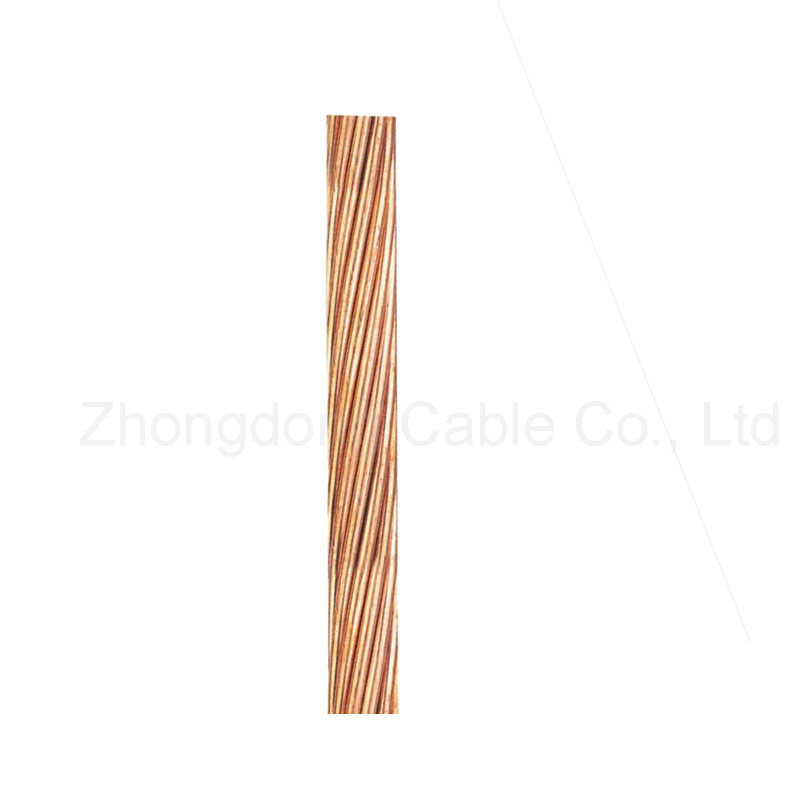

70Sq.mm Cu. Bare Copper Conductor for Overhead Power Line
Application
Solid and stranded bare copper conductors are suitable for overhead transmission and distribution applications. Stranded conductors of greater flexibility are suitable for uninsulated hook up, jumpers and grounds in electrical construction.
Construction
Bare stranded soft-drawn copper conductor is a concentric-lay-stranded conductor consisting of hard-drawn copper wires available in both single layer and multi-layer constructions
Descripction
- Conductor: stranded hard drawn copper
- No. of strands: 3, 7, 19, 37
- Conductor shape: round
- Lay direction of outer layer: right
- Conductor specification
Specification
|
Nominal Area |
Construction |
Overall Dia. |
Approx. weight |
Max. DC Resist. |
Min. Breaking Load |
|
10 |
7/1.35 |
4.05 |
89.82 |
1.829 |
3752 |
|
14 |
7/1.60 |
4.80 |
126.2 |
1.303 |
5267 |
|
16 |
3/2.65 |
5.70 |
148.3 |
1.106 |
6194 |
|
16 |
7/1.70 |
5.10 |
142.4 |
1.154 |
5946 |
|
25 |
7/2.10 |
6.30 |
217.3 |
0.7563 |
9073 |
|
32 |
3/3.75 |
8.06 |
296.9 |
0.5520 |
12400 |
|
32 |
7/2.46 |
7.38 |
298.2 |
0.5497 |
12442 |
|
35 |
7/2.50 |
7.50 |
308.0 |
0.5337 |
12860 |
|
50 |
7/3.00 |
9.00 |
443.5 |
0.3706 |
18520 |
|
50 |
19/1.80 |
9.00 |
435.8 |
0.3819 |
17700 |
|
70 |
7/3.55 |
10.65 |
621.1 |
0.2646 |
25930 |
|
70 |
19/2.10 |
10.50 |
593.2 |
0.2806 |
24090 |
|
95 |
19/2.50 |
12.50 |
840.7 |
0.1980 |
34140 |
|
100 |
7/4.30 |
12.90 |
911.2 |
0.1810 |
36540 |
|
120 |
19/2.80 |
14.00 |
1055 |
0.1578 |
42830 |
|
125 |
19/2.90 |
14.50 |
1131 |
0.1471 |
45940 |
|
150 |
19/3.20 |
16.00 |
1377 |
0.1208 |
55940 |
|
150 |
37/2.25 |
15.75 |
1334 |
0.1264 |
53880 |
|
185 |
19/3.55 |
17.75 |
1695 |
0.09815 |
68860 |
|
185 |
37/2.50 |
17.50 |
1647 |
0.1024 |
66490 |
-
