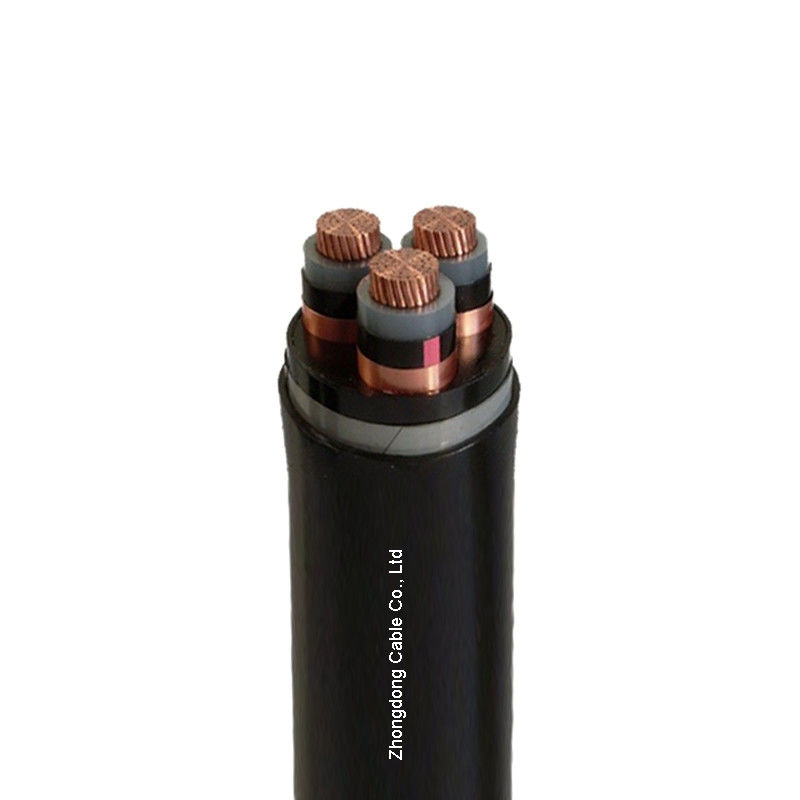

Copper Tape Shield Medium Voltage Armored Cable 6KV 10kV 600sq Underground Use
| Armored: | Steel Tape | Sheath Material: | PVC |
| Insulation: | XLPE | Rated Voltage: | 6/10kV |
| Conductor: | Copper | No of Core: | 3 |
| High Light: | Copper Tape Medium Voltage Armored Cable,10kV Medium Voltage Armored Cable,Underground Use MV Armored Cable |
||
Copper Tape Shield Medium Voltage 6/10kV Steel Tape Armoured 600sq Underground Use
Construction
- Conductor: Circular compacted stranded Copper or aluminium
- Conductor screen: Extruded semi-conductive compound
- Insulation: XLPE
- Insulation screen: Extruded semi-conductive compound
- Metallic screen: Copper Wire
- Binder tape: non-hygroscopic material
- Inner covering(bedding): PVC
- Metallic armor: Galvanized steel tape
Application
Suitable for urban underground power grids, power station outgoing lines, internal power supply lines of industrial and mining enterprises, etc.
Specification
YJV62 YJV22-6/10kV Cable Structure Parameters
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
3×25 |
6.0±0.1 |
15.6 |
43.5 |
2765 |
|
3×35 |
6.6±0.2 |
16.2 |
44.8 |
3094 |
|
3×50 |
7.6±0.2 |
17.2 |
47.5 |
3626 |
|
3×70 |
9.2±0.2 |
18.8 |
51.3 |
4464 |
|
3×95 |
10.9±0.2 |
20.5 |
55.2 |
5439 |
|
3×120 |
12.2±0.2 |
21.8 |
58.3 |
6338 |
|
3×150 |
13.6±0.2 |
23.2 |
61.5 |
7312 |
|
3×185 |
15.2±0.2 |
24.8 |
65.3 |
859% |
|
3×240 |
17.4±0.2 |
27.0 |
70.6 |
10543 |
|
3×300 |
19.5±0.2 |
29.1 |
75.6 |
12611 |
|
3×400 |
22.0±0.2 |
31.6 |
82.7 |
16102 |
|
3×500 |
24.8±0.2 |
35.2 |
91.0 |
19826 |
|
3×630 |
28.2±0.2 |
38.6 |
99.2 |
24528 |
|
|
|
|
|
|
