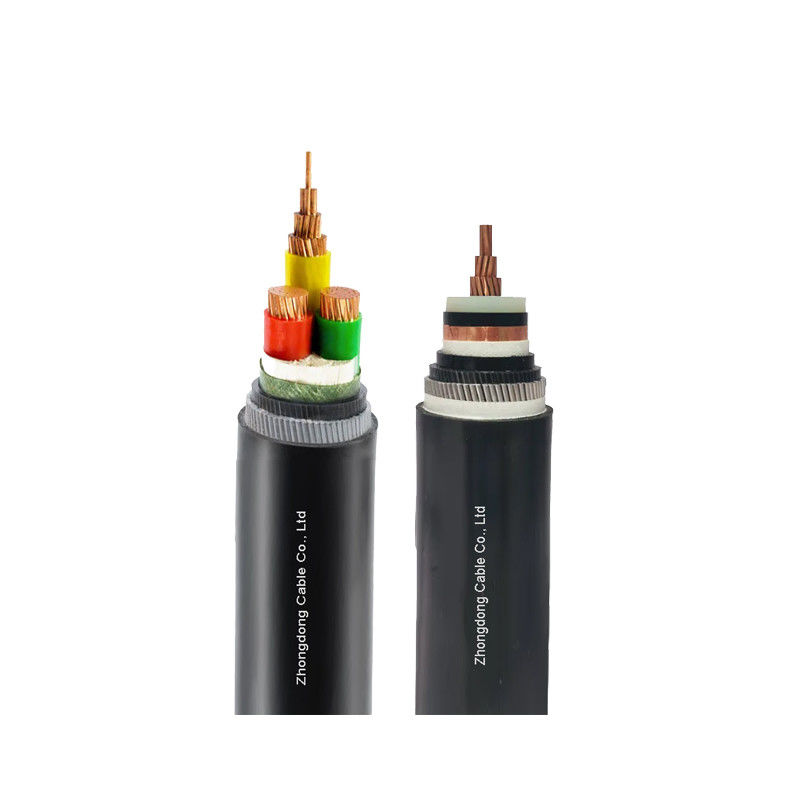

Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation
| Armored: | Steel Wire | Sheath Material: | PVC |
| Insulation: | XLPE | Rated Voltage: | 6/10kV |
| Conductor: | Copper | No of Core: | 1,3 |
| High Light: | Copper Conductor 15kV MV Cable,XLPE Insulation MV Power Cable |
||
Copper Conductor Medium Voltage Cable 8.7/15kV Cu/XLPE/PVC/SWA
Construction
- Conductor: Circular compacted stranded Copper or aluminium
- Conductor screen: Extruded semi-conductive compound
- Insulation: XLPE
- Insulation screen: Extruded semi-conductive compound
- Metallic screen: Copper Wire
- Binder tape: non-hygroscopic material
- Inner covering(bedding): PVC
- Metallic armor: Galvanized steel tape
Application
Medium-voltage cables (typically rated between 1 kV and 35 kV) are extensively used in power distribution networks to deliver electricity from substations to industrial, commercial, and residential areas. They are commonly employed in underground and overhead systems, industrial plants, renewable energy installations (e.g., solar farms, wind turbines), and infrastructure projects like airports, hospitals, and transportation hubs. These cables also serve in mining operations, oil and gas facilities, and urban grids due to their durability, high current-carrying capacity, and resistance to environmental stressors. Insulated with materials like XLPE, they ensure efficient energy transfer, safety in harsh conditions, and reliability in medium-voltage application
Specification
YJV62 YJV22-3.6/6kV Cable Structure Parameters
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
1×25 |
6.0±0.1 |
12.2 |
20.5 |
751 |
3×25 |
6.0±0.1 |
12.2 |
39.1 |
2415 |
|
|
1×35 |
6.6±0.2 |
12.8 |
21.1 |
853 |
3×35 |
6.6±0.2 |
12.8 |
40.8 |
2775 |
|
|
1×50 |
7.6±0.2 |
13.8 |
22.3 |
1006 |
3×50 |
7.6±0.2 |
13.8 |
43.1 |
3250 |
|
|
1×70 |
9.2±0.2 |
15.4 |
23.9 |
1248 |
3×70 |
9.2±0.2 |
15.4 |
46.9 |
4063 |
|
|
1×95 |
10.9±0.2 |
17.1 |
25.8 |
1551 |
3×95 |
10.9±0.2 |
17.1 |
50.7 |
5015 |
|
|
1×120 |
12.2±0.2 |
18.4 |
27.1 |
1813 |
3×120 |
12.2±0.2 |
18.4 |
54.1 |
5919 |
|
|
1×150 |
13.6±0.2 |
19.8 |
28.6 |
2118 |
3×150 |
13.6±0.2 |
19.8 |
57.4 |
6902 |
|
|
1×185 |
15.2±0.2 |
21.4 |
30.2 |
2499 |
3×185 |
15.2±0.2 |
21.4 |
61.1 |
8136 |
|
|
1×240 |
17.4±0.2 |
23.8 |
32.8 |
3103 |
3×240 |
17.4±0.2 |
23.8 |
66.8 |
10099 |
|
|
1×300 |
19.5±0.2 |
26.3 |
36.9 |
4116 |
3×300 |
19.5±0.2 |
26.3 |
72.7 |
12239 |
|
|
1×400 |
22.0±0.2 |
29.2 |
40.0 |
5008 |
3×400 |
22.0±0.2 |
29.2 |
81.0 |
15868 |
|
|
1×500 |
24.8±0.2 |
33.2 |
44.4 |
6222 |
3×500 |
24.8±0.2 |
33.2 |
90.1 |
19700 |
|
|
1×630 |
28.2±0.2 |
36.6 |
48.1 |
7695 |
3×630 |
28.2±0.2 |
36.6 |
98.3 |
24392 |
|
|
1×800 |
34.0±0.2 |
42.4 |
54.1 |
9734 |
|
|
|
|
|
