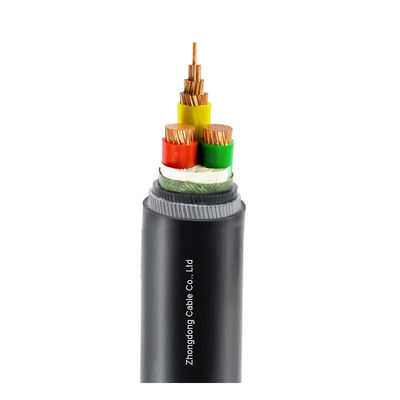

Single Core Steel Wire Armored XLPE Cable , Copper Conductor Medium Voltage Cable
| Armored: | Steel Wire | Sheath Material: | PVC |
| Insulation: | XLPE | Rated Voltage: | 6/10kV |
| Conductor: | Copper | No of Core: | 1,3 |
| High Light: | Steel Wire Armored XLPE Cable,Copper Conductor Armored XLPE Cable |
||
Copper Conductor XLPE Insulated Power Cable Cu/XLPE/PVC/SWA Medium Voltage Cable
Application
XLPE (Cross-Linked Polyethylene) insulated cables are widely used in power transmission and distribution systems due to their high thermal resistance, mechanical strength, and excellent electrical insulation properties. They are commonly applied in medium- to high-voltage networks, underground and submarine installations, industrial plants, and commercial or residential buildings. XLPE cables are ideal for harsh environments, as they withstand high temperatures (up to 90°C continuous operation), moisture, and chemical exposure. They also serve in renewable energy projects (e.g., solar and wind farms), transportation infrastructure (subways, railways), and utility grids, offering reliable performance, long service life, and higher current-carrying capacity compared to traditional PVC or PE insulation.
Construction
- Conductor: Circular compacted stranded Copper or aluminium
- Conductor screen: Extruded semi-conductive compound
- Insulation: XLPE
- Insulation screen: Extruded semi-conductive compound
- Metallic screen: Copper Wire
- Binder tape: non-hygroscopic material
- Inner covering(bedding): PVC
- Metallic armor: Galvanized steel tape
Specification
YJV62 YJV22-3.6/6kV Cable Structure Parameters
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
1×25 |
6.0±0.1 |
12.2 |
20.5 |
751 |
3×25 |
6.0±0.1 |
12.2 |
39.1 |
2415 |
|
|
1×35 |
6.6±0.2 |
12.8 |
21.1 |
853 |
3×35 |
6.6±0.2 |
12.8 |
40.8 |
2775 |
|
|
1×50 |
7.6±0.2 |
13.8 |
22.3 |
1006 |
3×50 |
7.6±0.2 |
13.8 |
43.1 |
3250 |
|
|
1×70 |
9.2±0.2 |
15.4 |
23.9 |
1248 |
3×70 |
9.2±0.2 |
15.4 |
46.9 |
4063 |
|
|
1×95 |
10.9±0.2 |
17.1 |
25.8 |
1551 |
3×95 |
10.9±0.2 |
17.1 |
50.7 |
5015 |
|
|
1×120 |
12.2±0.2 |
18.4 |
27.1 |
1813 |
3×120 |
12.2±0.2 |
18.4 |
54.1 |
5919 |
|
|
1×150 |
13.6±0.2 |
19.8 |
28.6 |
2118 |
3×150 |
13.6±0.2 |
19.8 |
57.4 |
6902 |
|
|
1×185 |
15.2±0.2 |
21.4 |
30.2 |
2499 |
3×185 |
15.2±0.2 |
21.4 |
61.1 |
8136 |
|
|
1×240 |
17.4±0.2 |
23.8 |
32.8 |
3103 |
3×240 |
17.4±0.2 |
23.8 |
66.8 |
10099 |
|
|
1×300 |
19.5±0.2 |
26.3 |
36.9 |
4116 |
3×300 |
19.5±0.2 |
26.3 |
72.7 |
12239 |
|
|
1×400 |
22.0±0.2 |
29.2 |
40.0 |
5008 |
3×400 |
22.0±0.2 |
29.2 |
81.0 |
15868 |
|
|
1×500 |
24.8±0.2 |
33.2 |
44.4 |
6222 |
3×500 |
24.8±0.2 |
33.2 |
90.1 |
19700 |
|
|
1×630 |
28.2±0.2 |
36.6 |
48.1 |
7695 |
3×630 |
28.2±0.2 |
36.6 |
98.3 |
24392 |
|
|
1×800 |
34.0±0.2 |
42.4 |
54.1 |
9734 |
|
|
|
|
|
