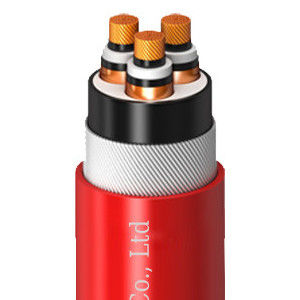

OEM Single Core Three Core XLPE Power Cable Cu XLPE PVC SWA Medium Voltage Cable
| Armored: | Steel Wire | Sheath Material: | PVC |
| Insulation: | XLPE | Rated Voltage: | 6/10kV |
| Conductor: | Copper | No of Core: | 1,3 |
| High Light: | OEM Three Core XLPE Power Cable,Cu XLPE PVC SWA Power Cable |
||

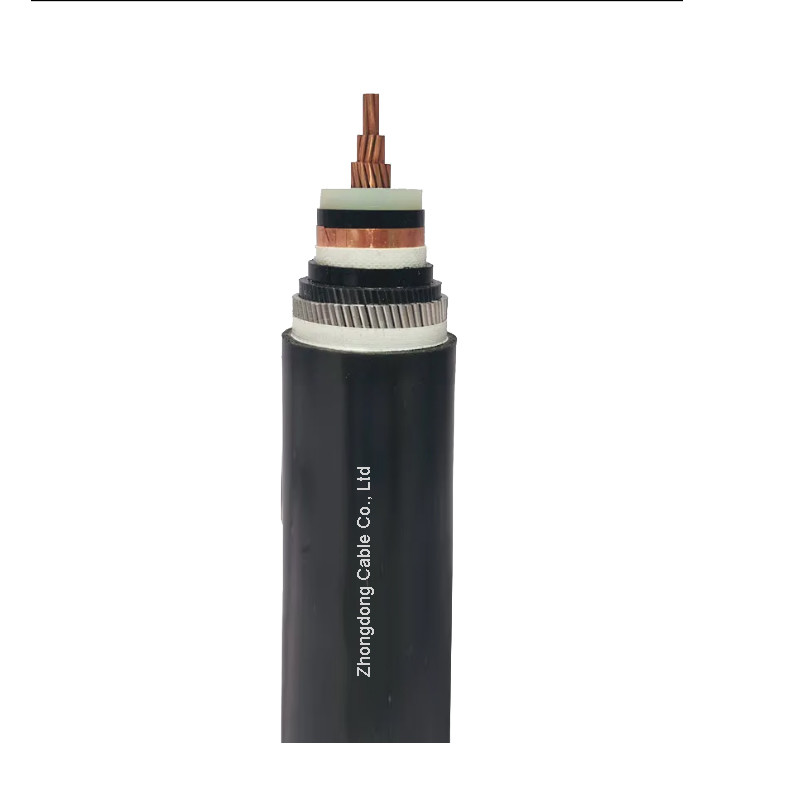

Single Core Three Core XLPE Insulated Power Cable Cu/XLPE/PVC/SWA Medium Voltage Cable
Application
XLPE (Cross-Linked Polyethylene) insulated cables are widely used in power transmission and distribution systems due to their high thermal resistance, mechanical strength, and excellent electrical insulation properties. They are commonly applied in medium- to high-voltage networks, underground and submarine installations, industrial plants, and commercial or residential buildings
Construction
- Conductor: Circular compacted stranded Copper or aluminium
- Conductor screen: Extruded semi-conductive compound
- Insulation: XLPE
- Insulation screen: Extruded semi-conductive compound
- Metallic screen: Copper Wire
- Binder tape: non-hygroscopic material
- Inner covering(bedding): PVC
- Metallic armor: Galvanized steel tape
Specification
YJV62 YJV22-6/6kV(6/10kV) Cable Structure Parameters
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
1×25 |
6.0±0.1 |
15.6 |
22.5 |
844 |
3×25 |
6.0±0.1 |
15.6 |
43.5 |
2765 |
|
|
1×35 |
6.6±0.2 |
162 |
23.1 |
948 |
3×35 |
6.6±0.2 |
16.2 |
44.8 |
3094 |
|
|
1×50 |
7.6±0.2 |
172 |
24.3 |
1105 |
3×50 |
7.6±0.2 |
17.2 |
47.5 |
3626 |
|
|
1×70 |
9.2±0.2 |
18.8 |
25.9 |
1351 |
3×70 |
9.2±0.2 |
18.8 |
51.3 |
4464 |
|
|
1×95 |
10.9±0.2 |
20.5 |
27.7 |
1660 |
3×95 |
10.9±0.2 |
20.5 |
55.2 |
5439 |
|
|
1×120 |
12.2±0.2 |
21.8 |
29.0 |
1926 |
3×120 |
12.2±0.2 |
21.8 |
58.3 |
6338 |
|
|
1×150 |
13.6±0.2 |
23.2 |
30.6 |
2237 |
3×150 |
13.6±0.2 |
23.2 |
61.5 |
7312 |
|
|
1×185 |
15.2±0.2 |
24.8 |
32.2 |
2623 |
3×185 |
15.2±0.2 |
24.8 |
65.3 |
859% |
|
|
1×240 |
17.4±0.2 |
27.0 |
35.9 |
3552 |
3×240 |
17.4±0.2 |
27.0 |
70.6 |
10543 |
|
|
1×300 |
19.5±0.2 |
29.1 |
38.1 |
4211 |
3×300 |
19.5±0.2 |
29.1 |
75.6 |
12611 |
|
|
1×400 |
22.0±0.2 |
31.6 |
41.0 |
5095 |
3×400 |
22.0±0.2 |
31.6 |
82.7 |
16102 |
|
|
1×500 |
24.8±0.2 |
352 |
44.8 |
6258 |
3×500 |
24.8±0.2 |
35.2 |
91.0 |
19826 |
|
|
1×630 |
28.2±0.2 |
38.6 |
48.5 |
7733 |
3×630 |
28.2±0.2 |
38.6 |
99.2 |
24528 |
|
|
1×800 |
34.0±0.2 |
44.4 |
54.5 |
9776 |
|
|
|
|
|
