IEC Standard Industrial Power Cable XLPE Insulated Cu Conductor PVC Sheathed
| Model: | XLPE Insulated | Conductor Material: | Copper Or Al-alloy |
| Insulation Material: | PVC/XLPE | Jacket Color: | As Required |
| Jacket: | PVC/LSZH/LSOH | Voltage: | 0.6/1kV |
| High Light: | Industrial Power Cable XLPE Insulated,IEC Standard Cable XLPE Insulated,Cu Conductor XLPE Insulated Cable |
||

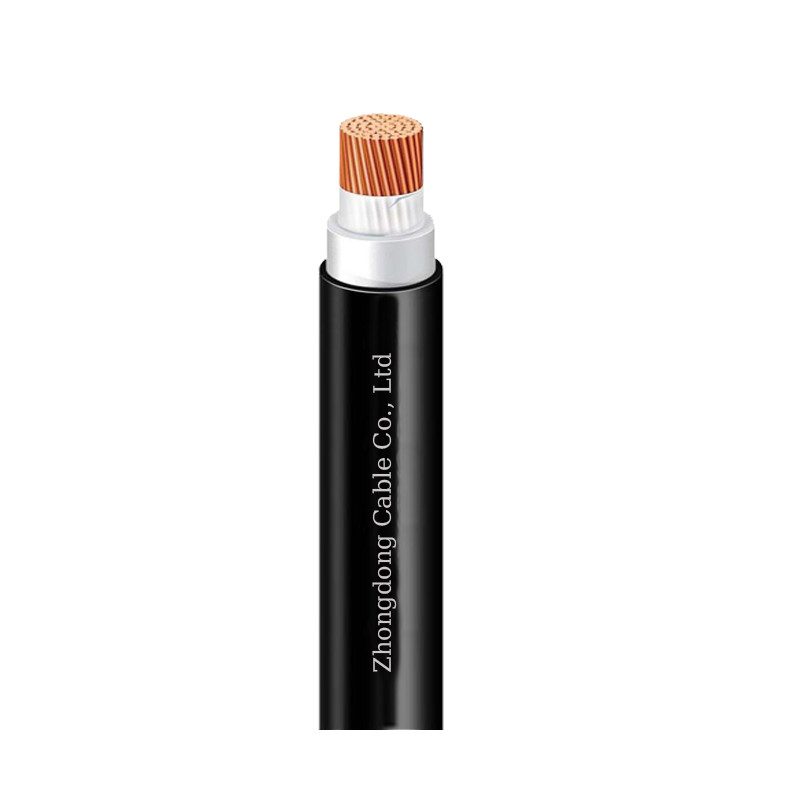

IEC Standard Industrial Power Cable XLPE Insulated Cu-conductor PVC Sheathed
Application
XLPE (cross-linked polyethylene) insulated power cables are widely used in electrical distribution and transmission systems due to their excellent performance characteristics. Here’s an overview of their features, benefits, and applications.
Construction
- Conductor: Plain Annealed copper conductor or Al-Alloy
- Mica tape:Each individual conductor is wrapped mica tape which can withstand the flame temperature up to 1100 °C.
- Insulation:Cross-linked polyethylene (XLPE)
- Armouring: Steel Tape
- Sheath:Fire resistant PVC outer sheath
Advanatge
- High Thermal Resistance
- Superior Electrical Properties
- Chemical Resistance
- Low Smoke and Low Toxicity
- Long Lifespan:
Feature:
- Rated voltage: 6/10kV(6.35/11kV)
- Max. Conductor Temp.: no (90°C), short circuit no more than 5 s (160°C when section-area below 300mm2, 140°C when section-area above 300mm2)
- Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
- Min. Bending Radius: single core cable 20(d+D)±5%
- Multi-core cable 15(d+D)±5%
Specification
|
Specification |
Outer diameter |
Approx. outer diameter of cable |
Approx. weight of cable |
Max. D.C. resistance of conductor at 20℃ |
||
|
mm2 |
mm |
mm |
kg/km |
Ω/km |
||
|
|
|
|
Cu |
Al |
Cu |
Al |
|
1×25 |
6 |
23.2 |
885.2 |
732.9 |
0.727 |
1.2 |
|
1×35 |
7 |
24.2 |
1012.5 |
800.2 |
0.524 |
0.868 |
|
1×50 |
8.4 |
25.6 |
1191.2 |
894.6 |
0.387 |
0.641 |
|
1×70 |
10 |
27.2 |
1449.8 |
1028.4 |
0.268 |
0.443 |
|
1×95 |
11.5 |
28.8 |
1736.4 |
1159 |
0.193 |
0.32 |
|
1×120 |
13 |
30.4 |
2033.4 |
1303 |
0.153 |
0.253 |
|
1×150 |
14.5 |
32 |
2365.6 |
1447.9 |
0.124 |
0.206 |
|
1×185 |
16.2 |
33.8 |
2767.5 |
1631.3 |
0.0991 |
0.164 |
|
1×240 |
18.4 |
37.4 |
3372 |
1892.4 |
0.0754 |
0.125 |
|
1×300 |
20.5 |
39.7 |
4004.9 |
2147.7 |
0.0601 |
0.1 |
|
1×400 |
23.5 |
43 |
4986.6 |
2564.4 |
0.047 |
0.0778 |
|
1×500 |
26.5 |
46.3 |
6103.5 |
3025.8 |
0.0366 |
0.0605 |
|
1×630 |
30 |
50.2 |
7424.3 |
3570 |
0.0283 |
0.0469 |
