Home > Products> Electrical Wire> PVC Insulation Industrial Electrical Wire Solid Twisted Copper Cable For Bvr Equipment

PVC Insulation Industrial Electrical Wire Solid Twisted Copper Cable For Bvr Equipment

Basic Information

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,IEC,VDE,TUV,ISO
Model Number:	BV BVR

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	7-30 days based on different Qty
Payment Terms:	L/C,T/T
Supply Ability:	1000KM/Week

Get Best Price Contact Now

Detail Information

Conductor Size:	12 AWG	Keywords:	Earth Cable, Ground Wire
Insulation Material:	PVC	Type:	Insulated
Material:	Copper	Length:	Customizable
Highlight:	PVC Insulation Industrial Electrical Wire , Bvr Equipment Copper Electrical Wire , Solid Twisted Electrical Copper Cable

Product Description

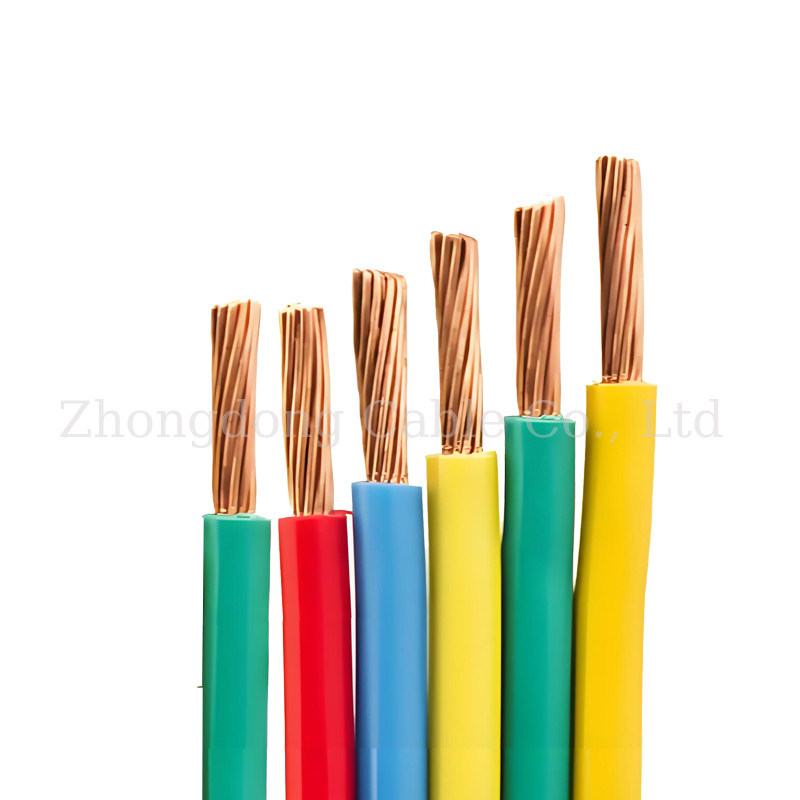

PVC Insulation Industrial Electrical Wire Solid Twisted Copper Wire Cables for Bvr Electrical Equipment

Application

Indoor 300/500V AWG PVC Insulated Copper Wire Power plant, Household Appliances, meters and telecommunication equipment with AC voltage up to and including 450/750.

Product Introduction

Indoor 300/500V AWG PVC Insulated Copper Wire
Product : PVC insulated electric wire
Conductor:Single or stranded copper
PVC insulation
Rated voltage: 300/500V,450/750V
The long-time working temperature should not beyond 70ºC.
Adopt standard thickness easy truncation.

Parameters

model	Specification mm	Conductor structure BC	outside diameter	colour
BVR	0.75	7/0.37	2.2	Red, yellow, orange, blue, green, black, white, gray, purple, brown, yellow/green
BVR	1.0	7/0.43	2.6
BVR	1.5	7/0.52	3.1
BVR	2.5	19/0.41	3.7
BVR	4.0	19/0.52	4.3
BVR	6.0	19/0.64	5.0

Please contact us for more informaton!
