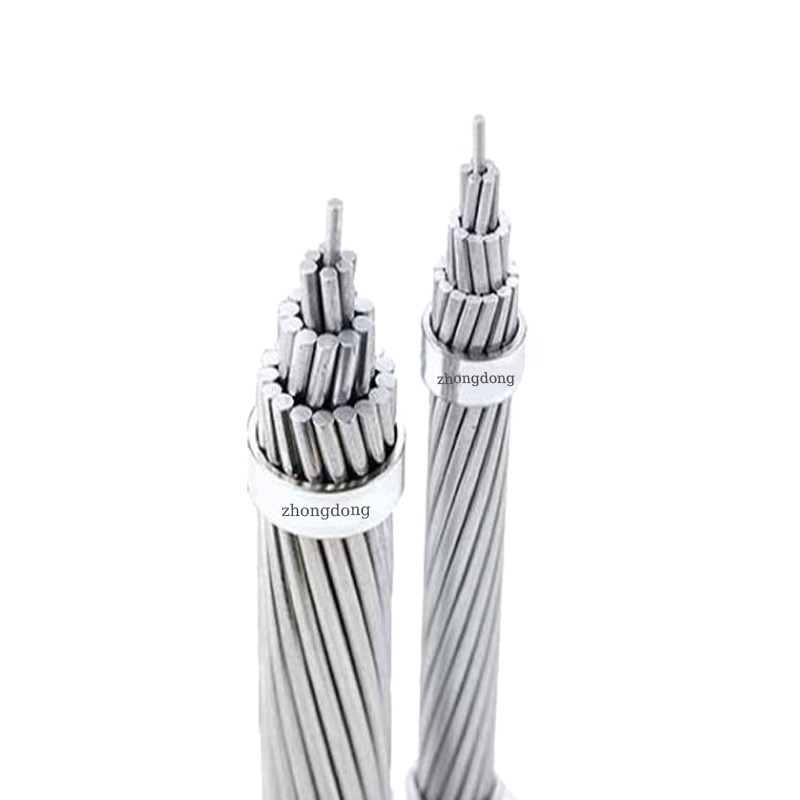

Overhead Bare Conductor ACSR Steel Reinforced Aluminum AAC AAAC Conductor
| Usage: | Long Distance Distribution | Model Name: | Bare Aluminum Conductor |
| Number Of Wires: | 7-91 | Experience: | More Than 20 Years |
| Third Party Inspection: | Accepted | Specification: | Bare Conductor Hard Drawn Copper |
| High Light: | Overhead Bare Conductor ACSR,Steel Reinforced Aluminum AAAC Conductor |
||
Overhead Bare Conductor ACSR Steel Reinforced Aluminum AAC AAAC Conductor
Application
Bare conductors are extensively used for overhead distribution and transmission lines adjacent to ocean coastlines where there can be a problem of corrosion in the steel of an ACSR construction.
The inductive effect of the ACSR's steel core is eliminated, hence increasing the operating efficiency of the line.
Brief Description
- This conductor is made from aluminium-magnesium silicon alloy of high electrical conductivity containing enough magnesium silicide to give it better mechanical properties after treatment. These conductors are generally made out of aluminium alloy 6201.
- AAAC CONDUCTOR has a better corrosion resistance and better strength to weight ratio and improved electrical conductivity than ACSR CONDUCTOR on equal diameter basis.
Physical contents of alluminium alloy
- Density - 2.70 kgm/dm3 at 20°C
- Coefficient of Linear Expansion - 23 x 10-6 / °C
- Resistivity - 0.0326 Ohms mm2/m at 20°C
- Constant Mass Temperature Coefficient (a) - 0.00360/ °C
- Material - Heat treated Al. Mg. Si. Alloy
Specification
|
All Aluminium Alloy Conductors ASTM B 399 |
||||||
|
AREA |
Stranding and wire diameter |
Approx. overall diameter |
Weight |
Nominal Breaking Load |
Nom. DC resistance at 20 Deg. |
|
|
Nominal |
Actual |
|||||
|
AWGorMCM |
(mm2) |
(mm) |
(mm) |
(kg/km) |
(kN) |
(ohm/km) |
|
6 |
13.3 |
7/1.554 |
4.67 |
37 |
4.22 |
2.5199 |
|
4 |
21.15 |
1/1.961 |
5.89 |
58 |
6.71 |
1.5824 |
|
2 |
33.63 |
7/2.474 |
7.42 |
93 |
10.68 |
0.9942 |
|
1/0 |
53.48 |
7/3.119 |
9.36 |
148 |
16.97 |
0.6256 |
|
2/0 |
67.42 |
7/3.503 |
10.51 |
186 |
20.52 |
0.4959 |
|
|
|
|
|
|
|
|
|
3/0 |
85.03 |
7/3.932 |
11.8 |
234 |
25.86 |
0.3936 |
|
4/0 |
107.23 |
7/4.417 |
13.26 |
296 |
32.63 |
0.3119 |
|
250 |
126.66 |
19/2.913 |
14.57 |
349 |
38.93 |
0.2642 |
|
300 |
152.1 |
19/63.193 |
15.97 |
419 |
46.77 |
0.2199 |
|
350 |
177.35 |
19/3.447 |
17.24 |
489 |
52.25 |
0.1887 |
|
|
|
|
|
|
|
|
|
400 |
202.71 |
19/3.686 |
18.43 |
559 |
59.74 |
0.1650 |
|
450 |
228 |
19/3.909 |
19.55 |
629 |
67.19 |
0.1467 |
|
500 |
253.35 |
19/4.120 |
20.6 |
698 |
74.64 |
0.1321 |
|
550 |
278.6 |
37/3.096 |
21.67 |
768 |
83.80 |
0.1202 |
|
600 |
303.8 |
37/3.233 |
22.63 |
838 |
91.38 |
0.1102 |
|
|
|
|
|
|
|
|
|
650 |
329.25 |
37/3.366 |
23.56 |
908 |
97.94 |
0.1016 |
|
700 |
354.55 |
37/3.493 |
24.45 |
978 |
102.20 |
0.0944 |
|
750 |
380.2 |
37/3.617 |
25.32 |
1049 |
109.60 |
0.0880 |
|
800 |
405.15 |
37/3.734 |
26.14 |
1117 |
116.80 |
0.0826 |
|
900 |
456.16 |
37/3.962 |
27.73 |
1258 |
131.50 |
0.0733 |
|
1000 |
506.71 |
37/4.176 |
29.23 |
1399 |
146.10 |
0.0660 |
-
