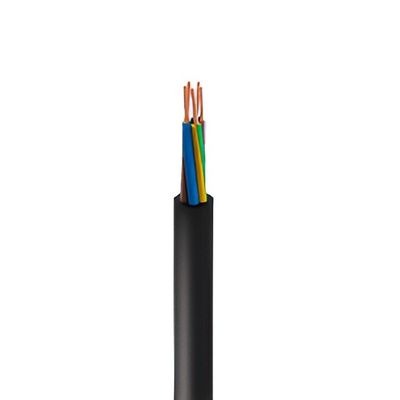

H07RN-F Flexible 5 Core Rubber Cable Copper Conductor Rubber Electrical Cable

H07RN-F Flexible 5 Core Rubber Cable Copper Conductor Rubber Electrical Cable
H07RN-F Flexible 5 Core Rubber Cable Copper Conductor Rubber Electrical Cable H07RN-F Flexible 5 Core Rubber Cable Copper Conductor Rubber Electrical Cable
Basic Information
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: VDE,CCC,ISO,TUV
Model Number: H07RN-F
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10work days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Get Best Price Contact Now
Detail Information
Insulation Material: EPR Application: Industrial
Conductor Material: Copper Jacket: PCP
Voltage: 450/750v Color: Bleck, Red, Yellow, Green
Highlight:

H07RN-F Flexible 5 Core Rubber Cable

,

Copper Conductor Rubber Electrical Cable

Product Description

H07RN-F Flexible Rubber Cable  5 Core  Copper Conductor



Application



The H07RN-F flexible rubber cable is a reliable and durable solution for applications requiring high flexibility and resistance to harsh conditions. Its robust design, combined with excellent weather and oil resistance, makes it a preferred choice for industrial, construction, agricultural, and entertainment applications. Whether used in temporary installations or mobile equipment, the H07RN-F cable ensures safe and efficient power delivery in demanding environments.

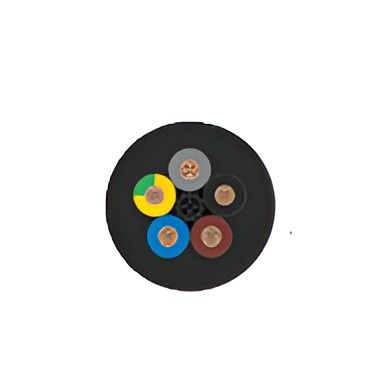

Construction



Conductor :Class 5 flexible copper conductor
Insulation :EPR (Ethylene Propylene Rubber)
Sheath :PCP (Polychloroprene)



Characteristics



Voltage Rating U/Uo
450/750V Suitable for 1kV in fixed application.
Temperature Rating
Fixed: -30°C to +90°C
Flexed: - 15oC to +90oC
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 6 x overall diamete



Conductors



Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS
SECTIONAL AREA
mm²		 MAXIMUM DIAMETER OF WIRES
N  CONDUCTOR
mm		 MAXIMUM RESISTANCE OF CONDUCTOR AT 20℃
ohms/km
1  0.21  19.5
1.5  0.26  13.3
2.5  0.26  7.98
4  0.31  4.95
6  0.31  3.3
10  0.41  1.91
16  0.41  1.21
25  0.41  078
35  0.41  0.554
50  0.41  0.386
70  0.51  0.272
95  0.51  0.206
120  0.51  0.161
150  0.51  0.129
185  0.51  0.106
240  0.51  0.0801
300  0.51  0.0641
400  0.51  0.0486
500  0.61  0.0384
630  0.61  00287
