Single/multi Core BV/BVR Electrical Wire 1.5mm 2.5mm 4mm 6mm 10mm Copper Conduct

Description

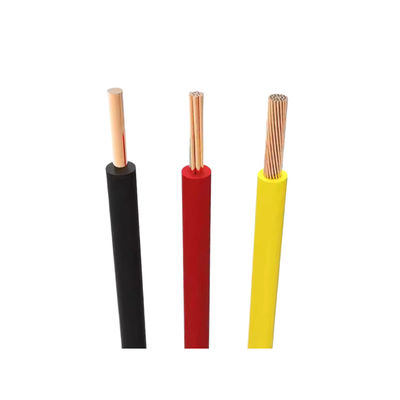

BV wire consists of a single solid copper conductor with a polyvinyl chloride (PVC) insulation layer. It is rigid and suitable for fixed installations.

BVR wire is made of multiple stranded copper conductors with a PVC insulation layer. It is more flexible than BV wire, making it suitable for applications requiring bending and movement.

Applications

Household Wiring,Electrical Equipment,Fixed Installations, Industrial Use

parameter

Product name:  Copper Core PVC Insulation Wire(BV)

Conductor:        Plain annealed copper

Insulation:         RoHS 70℃ PVC,The maximum temperature of the conductor is not exceeding 70℃;

                            The maximum temperature of the BV-90 conductor is not exceeding 90℃

Rated voltage:  450/750V(1.5-400mm2), 300/500V(0.5-1mm2)

colour:              Red,Yellow,Blue,Green,Black,White,Green/Yellow

Specifications
