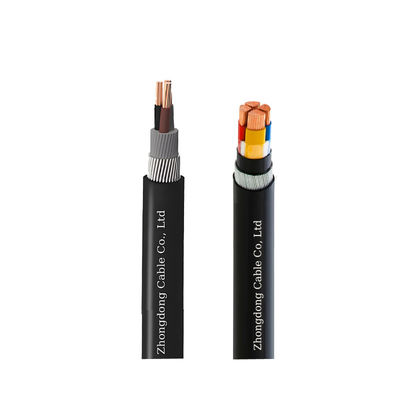

Ateşe dayanıklı düşük voltajlı tel kablosu XLPE yalıtım PVC kablosu Çelik tel zırhlı

İsimsel bölüm alanı

Toplam çapı yaklaşık

Kablonun yaklaşık ağırlığı

Işıncının maksimum DC direnci

mm2

mm

kg/km

Ω/km

Cu

Al

20°C Cu

20°C Al

3×1.5 RE

12.4

252.3

- Evet.

12.1

- Evet.

3×2.5 RE

13.3

300.7

254

7.41

12.1

3×4 RE

15.2

394.5

319.9

4.61

7.41

3×6 RE

16.3

487

375.1

3.08

4.61

3×10 CC

18.5

663.2

476.7

1.83

3.08

3×16 CC

20.7

901.8

603.3

1.15

1.91

3×25 CC

24.1

1250.7

784.3

0.727

1.2

3x35 CC

26.3

1578.1

925.2

0.524

0.868

3×50 SM

25.8

1997.4

1064.7

0.387

0.641

3×70 SM

29

2635.8

1330

0.268

0.443

3×95 SM

34.2

3799.8

2027.6

0.193

0.32

3×120 SM

37.6

4620.3

2381.9

0.153

0.253

3×150 SM

41.9

5661.4

2863.4

0.124

0.206

3×185 SM

46.8

6965.8

3514.9

0.0991

0.164

3×240 SM

52

8782.1

4305.2

0.0754

0.125

3×300 SM

57.3

10747.9

5151.8

0.0601

0.1

4×1.5 RE

13.2

291.1

- Evet.

12.1

- Evet.

4x2.5 RE

14.2

351.9

289.7

7.41

12.1

4×4 RE

16.3

469

369.5

4.61

7.41

4×6 RE

17.5

586.9

437.7

3.08

4.61

4×10 CC

20

798.9

550.2

1.83

3.08

4×16 CC

22.4

1079.7

681.8

1.15

1.91

4×25 CC

26.3

1549.9

928.1

0.727

1.2

4x35 CC

28.8

1985.4

1114.9

0.524

0.868

4×50 SM

30

2604.6

1361

0.387

0.641

4×70 SM

34.8

3778.7

2037.7

0.268

0.443

4×95 SM

39.1

4920.9

2558.1

0.193

0.32

4×120 SM

41.8

5956.6

2972

0.153

0.253

4×150 SM

46.9

7418.1

3687.3

0.124

0.206

4×185 SM

52.5

9021.2

4419.9

0.0991

0.164

4×240 SM

57.5

11374.5

5405.2

0.0754

0.125

4×300 SM

63.2

13951.3

6489.8

0.0601

0.1
