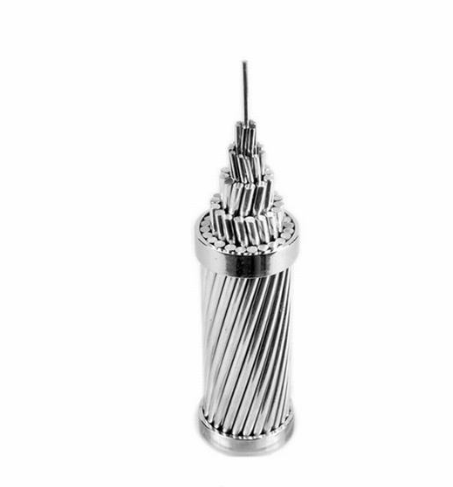

AACSR/AC Aluminum Alloy Conductor Aluminum Clad Steel Reinforced IEC 61089
| Material: | Aluminium Alloy | Usage: | Overhead |
| Standard: | IEC61089 | ||
| High Light: | AACSR aluminum alloy conductor cable,AC aluminum clad steel reinforced cable,low voltage AACSR power cable |
||
AACSR/AC Aluminum Alloy Conductor Aluminum Clad Steel Reinforced IEC 61089
Application
AACSR/AC (Aluminum Alloy Conductor Aluminum Clad Steel Reinforced) is widely used for overhead power transmission and distribution. It offers high tensile strength, excellent corrosion resistance, and reliable conductivity, making it ideal for long-span lines, coastal areas, and harsh environmental conditions. This conductor ensures stable and efficient power transmission in medium and high voltage networks.
Features:
- Aluminum alloy strands for improved strength and conductivity
- Aluminum-clad steel core for enhanced tensile performance
- Excellent resistance to corrosion, suitable for coastal and polluted environments
- For long-span installations and heavy load conditions
Typical Use:
- Medium and high voltage overhead lines
- River crossings and long-span routes
- Coastal, humid, and industrial areas
Standards:
- ASTM B711 – Aluminum Alloy Steel Reinforced (AACSR)
- ASTM B502 – Aluminum-Clad Steel Core Wire
- IEC 61089 – Round Wire Concentric Lay Overhead Electrical Conductors
Specification:
AACSR/AW-AACSR/AC/1120 AS 3607
| Code | Stranding and Wire Diameter(mm) |
Nominal Overall Diameter(mm) |
Cross-sectional Area(mm²) |
Approx.Mass (kg/km) |
Break.Load (kN ) |
Equiv.Aluminium Area(mm²) |
20℃(Ω) | |
| 1120 | Steel | |||||||
| Archery 1120 | 6/3.00 | 1/3.00 | 9.0 | 49.48 | 163 | 18.4 | 42.7 | 0.662 |
| Baseball 1120 | 6/3.75 | 1/3.75 | 11.3 | 77.31 | 254 | 27.6 | 66.7 | 0.424 |
| Bowls 1120 | 6/4.75 | 7/1.60 | 14.3 | 120.4 | 385 | 40.0 | 106 | 0.267 |
| Boxing 1120 | 18/3.50 | 1/3.50 | 17.5 | 182.8 | 540 | 51.5 | 167 | 0.169 |
| Cricket 1120 | 30/2.50 | 7/2.50 | 17.5 | 181.6 | 636 | 75.2 | 151 | 0.188 |
| Darts 1120 | 30/3.00 | 7/3.00 | 21.0 | 261.5 | 913 | 108 | 217 | 0.130 |
| Dice 1120 | 30/3.25 | 7/3.25 | 22.8 | 306.9 | 1070 | 127 | 254 | 0.111 |
| Diving 1120 | 30/3.50 | 7/3.50 | 24.5 | 356.0 | 1240 | 143 | 295 | 0.0961 |
| Golf 1120 | 54/3.00 | 7/3.00 | 27.0 | 431.2 | 1380 | 150 | 377 | 0.0750 |
| Gymnastics1120 | 54/3.25 | 7/3.25 | 29.3 | 506.0 | 1620 | 176 | 442 | 0.0639 |
| Hurdles 1120 | 54/3.50 | 7/3.50 | 31.5 | 586.9 | 1880 | 197 | 513 | 0.0552 |
FAQ
1. What is AACSR/AC conductor?
AACSR/AC (Aluminum Alloy Conductor Aluminum Clad Steel Reinforced) is an overhead conductor made of aluminum alloy strands with an aluminum-clad steel core, designed for high strength and corrosion resistance in power transmission.
2. What are the main advantages of AACSR/AC conductor?
AACSR/AC offers high tensile strength, excellent corrosion resistance, good conductivity, and improved sag performance, making it suitable for long-span and harsh environment applications.
3.How does AACSR/AC differ from ACSR conductor?
Compared to ACSR, AACSR/AC uses aluminum alloy instead of pure aluminum and aluminum-clad steel instead of galvanized steel, providing better corrosion resistance and higher strength, especially in aggressive environments.
4. What standards does AACSR/AC comply with?
AACSR/AC conductor is typically manufactured according to ASTM B711, ASTM B502, and IEC 61089, depending on project requirements.
-
