Detail Information

Insulation Material:	Xlpe	Jacket:	PE
Conductor Material:	Stranded Circular Or Segmental (Milliken) Compacted Copper Conductor	Nominal Voltage:	110kV
Core:	1 Core	Application:	Underground

Product Description

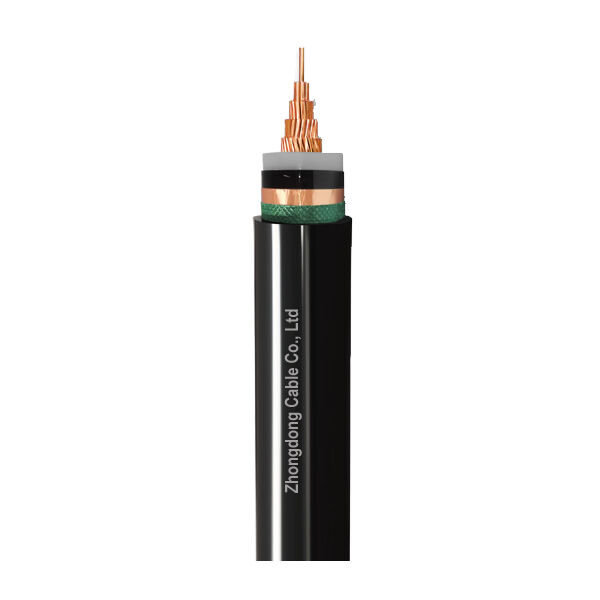

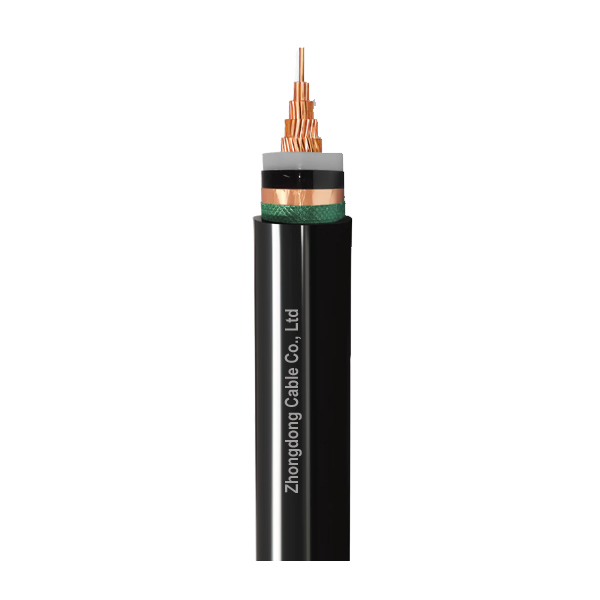

630mm2 High Voltage Cable 110kV Electric Single Core Copper Water Proof Resistant Power

APPLICATION

For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force.

CONSTRUCTION

630mm2 High Voltage Cable 110kV Electric Single Core Copper Water Proof Resistant Power 0

High Voltage: Designed for power distribution and construction applications.

XLPE Insulation: Provides superior electrical insulation and durability.

Copper Conductor: Ensures reliable and efficient power transmission.

Wide Range of Sizes: Available in sizes from 240 to 1600mm².

Professional Packaging: Environmentally friendly and convenient.

Customization Services: Tailored solutions to meet your specific project requirements.

In-House Laboratory: Equipped with advanced testing facilities for rigorous quality control.

Dedicated Testing Room: Comprehensive performance and safety evaluations on every batch.

Extensive Warehouse Network: Large inventory across multiple locations enables fast delivery.

STANDARD

IEC 60840 IEC 62067 IEC60502-3

CHARACTERISTIC

Voltage Rating Uo/U: 64/110kV(123kV)
‌Continuous Operation: ‌+90°C‌ Conductor Temp
‌Emergency Overload‌:‌+105°C‌ Conductor Temp (≤100 hrs/year, ≤500 hrs/lifetime)
Short Circuit:‌‌+250°C‌ Conductor Temp (for calculated duration, typically 1-5s)
‌Installation‌ ‌≥ 0°C‌
‌Ambient Operation ‌≥ -40°C

PARAMETERS

Conductor					Insulation					Nominal Area of Copper Wires	Outer Jacket
Nominal Area	Max.DC resistance at 20℃		Max.AC resistance at 90℃		Nominal Thickness of Insulation Layers						Nominal Thickness		Approx. Overall Diameter		Approx. Overall Weight
					Cond. Screen	XLPE		Ins. Screen
mm²	Ω/km		Ω/km		mm	mm		mm		mm²	mm		mm		kg/m
300 R		0.0601		0.0787	1.2		15		1	95	3.5	67.9		6.47
400 R		0.047		0.0627	1.2		15		1	95	3.5	70.5		7.41
500 R		0.0366		0.0502	1.2		15		1	95	4	74.9		8.79
630 R		0.0283		0.0407	1.2		15		1	95	4	78.4		10.21
800 R		0.0221		0.0338	1.2		15		1	95	4	82.4		12.17
1000 S		0.0176		0.024	1.5		15		1.2	95	4	92.1		14.74
1200 S		0.0151		0.0211	1.5		15		1.2	95	4.5	97.1		17
1400 S		0.0129		0.0185	1.5		15		1.2	95	4.5	99.1		18.99
1600 S		0.0113		0.0168	1.5		15		1.2	95	4.5	103.1		20.72
2000 S		0.009		0.0143	1.5		15		1.2	95	4.5	108.1		24.42
2500 S		0.0072		0.0125	1.5		15		1.2	95	4.5	116.1		29.99

630mm2 High Voltage Cable 110kV Electric Single Core Copper Water Proof Resistant Power 3

630mm2 High Voltage Cable 110kV Electric Single Core Copper Water Proof Resistant Power 4

630mm2 High Voltage Cable 110kV Electric Single Core Copper Water Proof Resistant Power 5

630mm2 High Voltage Cable 110kV Electric Single Core Copper Water Proof Resistant Power 6

FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer. We have Three Factory Production Base We can control your order from the first beggining to the last.Welcome to visit our factory .

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What’s your Minimum Order Quantity?
For some in-stock wires or cables, the moq Normally is 100m,. However, the cable is very heavy.You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. What kind of wires and cables we can proive ?
Power cable from 0.6-110kV, armourded cable, sheathed power cords, solar cable, high-flexible cables, shielded cable series, instrument cable, multi-core control cables, flat wires, electronic wires, and etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,Express Delivery,DAF,DES；
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

6. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
