Copper-tape Screened Control Cable CU/PVC/PVC 450/750V Copper Fire Rated Cable
| Conductor Material: | Copper | Insulation Material: | PVC |
| Application: | Industrial | Jacket: | PVC |
| Color: | Optional | cores: | 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 |
| High Light: | copper control cable 450/750V,fire rated control cable PVC,screened control cable copper tape |
||
Copper-tape Screened Control Cable CU/PVC/PVC 450/750V Copper Fire Rated Cable
APPLICATION
450/750V PVC Insulation Screened Control Cable is widely used for in control, monitoring and protection circuits of rated voltage 450/750V and below. Fire resistance, no halogen, flame retardant and other feathers are available.

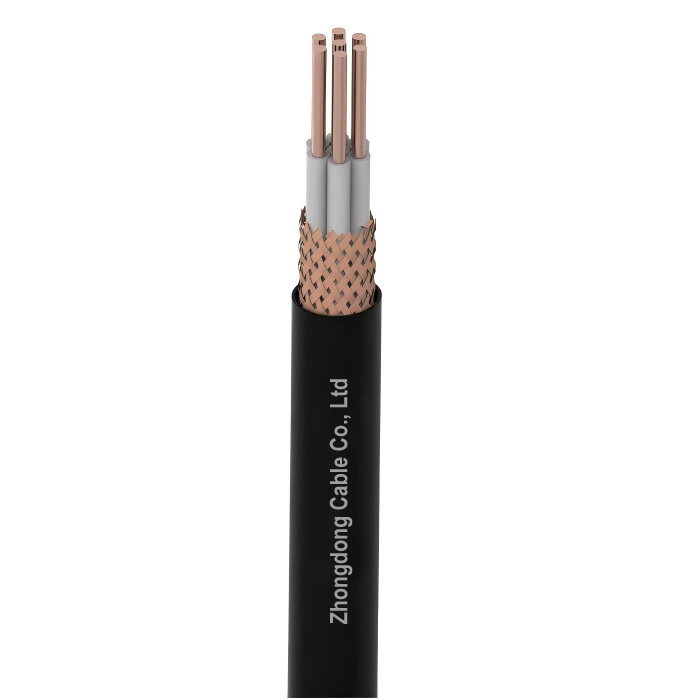

CONSTRUCTION
1) Conductor: solid / stranded copper
2) Insulation: PVC
3) Screen: braided copper wire, copper tape or aluminum plastic composite tape
4) Oversheath: PVC
SPECIFICATION
Voltage Rating: Uo/U 450/750V
Cable Structure: CU/PVC Insulation/Braid Screened/PVC Sheathed
Conductor temperature: Maximum conductor temperature in normal use: 70°CInstallation temperature: Ambient temperature under installation shall not be below 0°CMax.temperature of conductor under short circuit:
PVC Insulated:160°C
Preferred Permissible bending radius:
For non-armoured PVC insulated cable not less than: 6 times of cable diameter
FAQ
1.What is our payment term?
Our payment term is T/T 30% advanced, then the balance paid before picking up the goods or L/C at sight.
2.What is the lead time?
The lead time usually is 7– 30 working days.
3.What is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
4.Could we provide the free sample for customer?
Sure, we provide the free sample for customer to checking.
Yes, could print your company name.
Please feel free to leave your requirement, We will reply you in 12 hours.
