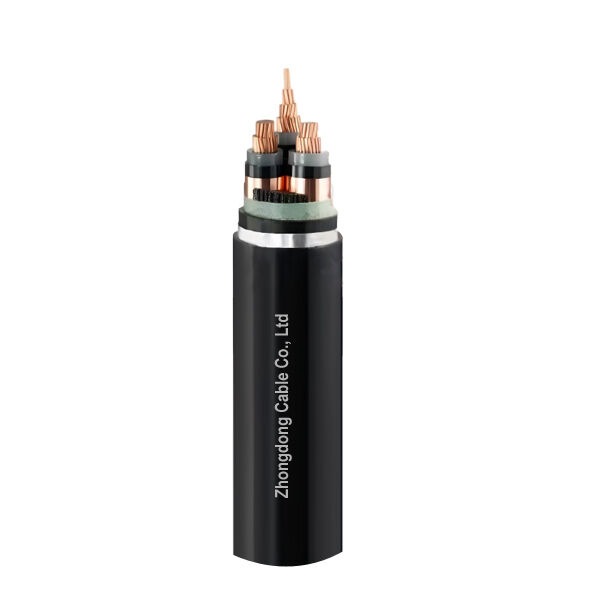

Philippine Standards Medium Voltage XLPE Insulated Power Cable for Industrial Use USE-2 Cable
APPLICATION
Suitable for power supply lines with flame retardant requirements, such as urban underground power grids, power station outgoing lines, and internal power lines of industrial and mining enterprises.
CONSUCTRUCTION
Conductor:Class 2 stranded plain copper conductor
Conductor screen:Semi-conducting material
Insulation:XLPE
Insulation Screen:Semi-conducting material
Metallic Screen: copper tape screen
Armouring:Single Core: Steel Tape Armoured
Sheath:PVC (Polyvinyl Chloride)
CHARACTERISTIC
Voltage Rating Uo/U
3.6/6(7.2)kV, 6/6(7.2)kV,6/10(12)kV, 8.7/10(12)kV,
8.7/15(17.5)kV, 12/20(24)kV, 18/20(24)kV,
18/30(36)kV, 21/35(40.5) kV, 26/35(40.5)kV
Temperature Rating
Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -15℃~+55℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius
Single Core 15D
Three Core 12D
(D is the actual outer diameter of the cable)
SPECIFICATION
12/20kV
|
Specs mm²
|
Conductor diameter mm
|
Nominal thickness of insulation ±1.0mm
|
Approx outer diameter of cable mm
|
Approx cable weight kg/km
|
|
Specs mm²
|
Conductor diameter mm
|
Nominal thickness of insulation ±1.0mm
|
Approx outer diameter of cable mm
|
Approx cable weight kg/km
|
|
1×35
|
6.6±0.2
|
20.0
|
27.2
|
1174
|
|
3×35
|
6.6±0.2
|
20.0
|
54.1
|
4058
|
|
1×50
|
7.6±0.2
|
21.0
|
28.2
|
1327
|
3×50
|
7.6±0.2
|
21.0
|
56.6
|
4631
|
|
1×70
|
9.2±0.2
|
22.6
|
30.0
|
1597
|
3×70
|
9.2±0.2
|
22.6
|
60.2
|
5482
|
|
1×95
|
10.9±0.2
|
24.3
|
31.7
|
1905
|
3×95
|
10.9±0.2
|
24.3
|
64.2
|
6590
|
|
1×120
|
12.2±0.2
|
25.6
|
33.2
|
2195
|
3×120
|
12.2±0.2
|
25.6
|
67.3
|
7536
|
|
1×150
|
13.6±0.2
|
27.0
|
35.9
|
2833
|
3×150
|
13.6±0.2
|
27.0
|
70.6
|
8572
|
|
1×185
|
15.2±0.2
|
28.6
|
37.6
|
3262
|
3×185
|
15.2±0.2
|
28.6
|
74.5
|
9994
|
|
1×240
|
17.4±0.2
|
30.8
|
40.0
|
3909
|
3×240
|
17.4±0.2
|
30.8
|
81.0
|
12891
|
|
1×300
|
19.5±0.2
|
32.9
|
42.5
|
4606
|
3×300
|
19.5±0.2
|
32.9
|
85.9
|
15246
|
|
1×400
|
22.0±0.2
|
35.4
|
45.1
|
5479
|
3×400
|
22.0±0.2
|
35.4
|
91.9
|
18071
|
|
1×500
|
24.8±0.2
|
39.0
|
49.1
|
6715
|
3×500
|
24.8±0.2
|
39.0
|
100.2
|
21862
|
|
1×630
|
28.2±0.2
|
42.4
|
52.8
|
8230
|
3×630
|
28.2±0.2
|
42.4
|
108.1
|
26592
|
|
1×800
|
33.7±0.2
|
47.9
|
58.5
|
10273
|
|
|
|
|
|
CONTACTR US FOR MORE VOLATAGE SPECIFICATIONS
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.Welcome to visit us.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.You'd better order a suitable quantity to avoid the high freight.Sea transportation is the best option.
4. what services can we provide?
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company
