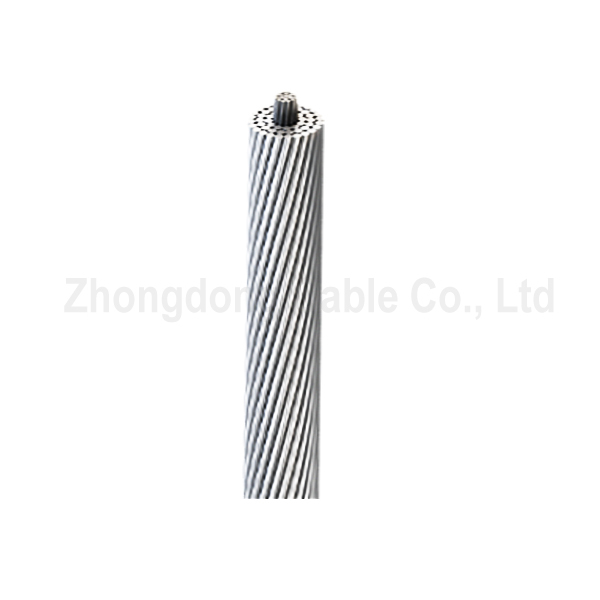

Steel-Aluminum Wire ACSR Bare Conductor Type AS-400/51 for 110KV Overhead Transmission with Aluminum-Steel Construction

Basic Properties
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: CCC,IEC,VDE,TUV,ISO
Model Number: AACSR
Trading Properties
Minimum Order Quantity: Negotiable
Price: Negotiable
Payment Terms: ,L/C,T/T
Supply Ability: 500KM/Week
Tags

Bare Copper Conductor

Aluminium Bare Conductor

Overhead Line Conductor
Specifications
Range Of Application: Overhead Transmission, Overhead Ground Material: Aluminum
Drum Packing: Steel Wooden Drum Product Name: AAC/AAAC/ACSR/ACSS/ACCC
Per Drum Weight: As Per Request Voltage: Up To 110KV
High Light:

AS-400/51 ACSR Bare Conductor

,

110KV Overhead Transmission Conductor

,

Aluminum-Steel Construction Steel-Aluminum Wire
Product Description
Steel-Aluminum Wire ACSR Bare Conductor Type AS-400/51 for Russian Market
Product Overview

ACSR (Aluminum Conductor Steel Reinforced) bare conductor designed specifically for the Russian market, featuring optimal strength and conductivity for power transmission applications.

Applications
  • Low Voltage (LV) power systems
  • Medium Voltage (MV) power systems
  • High Voltage (HV) power systems
  • Overhead power transmission lines
  • Overhead power distribution lines
Construction Details
Component Parameter Value
Aluminum Part Number of wires 54 pcs
Nominal diameter of wires 3.05 mm
Number of leads 3 pcs
Steel Core Number of wires 7 pcs
Nominal diameter of wires 3.05 mm
Number of leads 1 pc
Technical Specifications
Conductor resistance: 0.0747 Ω/km
Total cross-section: 445.10 mm²
Aluminum cross-section: 394.00 mm²
Steel cross-section: 51.10 mm²
Conductor diameter: 27.50 mm
Wire diameter: 3.05 mm
Failing load: 120.48 kN
Total cores: 61
Aluminum cores: 54
Steel cores: 7
Conductor type: ACSR 400/51
Conductor material: Aluminum & Steel
Operating temperature: -25°C to +80°C
Weight: 1490.00 kg/km
Product Images
ACSR Steel-Aluminum Wire conductor cross-section view ACSR conductor manufacturing process ACSR wire close-up detail ACSR conductor spool packaging ACSR wire installation application
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a direct factory with 20+ years of experience. We provide factory-direct price and ODM OEM service.
Which international standards do you follow?
We comply with IEC, BS, ASTM, VDE, AS/NZS, and UL standards.
Can you customize the cable printing?
Yes, we can print your logo, company name, and meter markings on the jacket.
What is the standard length per drum?
Usually 500m or 1000m for standard package, also depends on the order situation and customer's requirement.
What are your payment terms?
30% T/T deposit, 70% before shipment or against B/L.
What is the MOQ?
We have a flexible MOQ requirement.
