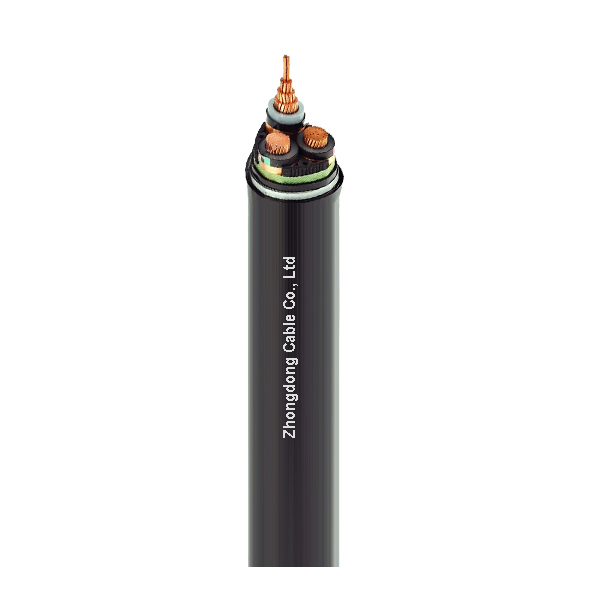

26/35kV Xlpe Insulated Swa Armoured Medium Voltage Pure 3x240mm2 Copper Underground Power Cable
APPLICATION
Suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in wateras well as for installation on cable trays for industries, switchboards and power stations.
CONSUCTRUCTION
Conductor material: Copper
Conductor flexibility: Stranded class 5
Insulation: XLPE(Cross-linked Polyethylene
Inner sheath: PVC
Armour type: Galvanized steel wires/steel tape
Outer sheath: PVC /PE
Colour: Black
CHARACTERISTIC
Voltage Rating Uo/U
3.6/6(7.2)kV, 6/6(7.2)kV,6/10(12)kV, 8.7/10(12)kV,
8.7/15(17.5)kV, 12/20(24)kV, 18/20(24)kV,
18/30(36)kV, 21/35(40.5) kV, 26/35(40.5)kV
Temperature Rating
Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -15℃~+55℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius
Single Core 15D
Three Core 12D
(D is the actual outer diameter of the cable)
SPECIFICATION
26/35kV
|
Specs
|
Conductor diameter
|
Outer thickness of insulation
|
Approx outer diameter of cable
|
Approx cable weight
|
|
Specs
|
Conductor diameter
|
Outer thickness of insulation
|
Approx outer diameter of cable
|
Approx cable weight
|
|
mm²
|
mm
|
±1.0mm
|
mm
|
kg/km
|
mm²
|
mm
|
±1.0mm
|
mm
|
kg/km
|
|
1×50
|
7.6±0.2
|
312
|
44.1
|
3697
|
3×50
|
7.6±0.2
|
31.2
|
85.5
|
10922
|
|
1×70
|
9.2±0.2
|
32.8
|
45.8
|
4073
|
3×70
|
9.2±0.2
|
32.8
|
89.3
|
12127
|
|
1×95
|
10.9±0.2
|
34.5
|
47.5
|
4481
|
3×95
|
10.9±0.2
|
34.5
|
93.3
|
13610
|
|
1×120
|
12.2±0.2
|
35.8
|
49.0
|
4874
|
3×120
|
12.2±0.2
|
35.8
|
96.5
|
14791
|
|
1×150
|
13.6±0.2
|
37.2
|
50.6
|
5299
|
3×150
|
13.6±0.2
|
37.2
|
99.9
|
16179
|
|
1×185
|
15.2±0.2
|
38.8
|
52.3
|
5778
|
3×185
|
15.2±0.2
|
38.8
|
103.5
|
17856
|
|
1×240
|
17.4±0.2
|
41.0
|
54.5
|
6530
|
3×240
|
17.4±0.2
|
41.0
|
108.7
|
20327
|
|
1×300
|
19.5±0.2
|
43.1
|
57.0
|
7360
|
3×300
|
19.5±0.2
|
43.1
|
115.3
|
24487
|
|
1×400
|
22.0±0.2
|
45.6
|
59.7
|
8363
|
3×400
|
22.0±0.2
|
45.6
|
121.4
|
27921
|
|
1×500/35
|
24.8±0.2
|
492
|
66.0
|
10213
|
3×500/35
|
24.8±0.2
|
49.2
|
134.8
|
34088
|
|
1×630/35
|
28.2±0.2
|
52.6
|
69.7
|
11899
|
3×630/35
|
28.2±0.2
|
52.6
|
1,448
|
42268
|
|
1×800/35
|
33.7±0.2
|
58.1
|
76.8
|
15129
|
|
|
|
|
|
CONTACTR US FOR MORE VOLATAGE
