66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2

Basic Information
Place of Origin: Hebei,China
Brand Name: Single Core HV Cable
Certification: CCC,IEC,VDE,TUV,ISO
Model Number: 2XS(FL)2Y
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: woodern drum
Delivery Time: 10work days
Payment Terms: L/C,T/T
Supply Ability: 500KM/Week
Detail Information
Insulation Material: Xlpe Jacket: PE
Conductor Material: Stranded Circular Or Segmental (Milliken) Compacted Copper Conductor Nominal Voltage: 110kV
Core: 1 Core Application: Underground

Product Description

66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2


APPLICATION

For laying indoors,in tunnel cable trench,well or direct in ground,able to  bear external mechanical forces and  certain pulling force.

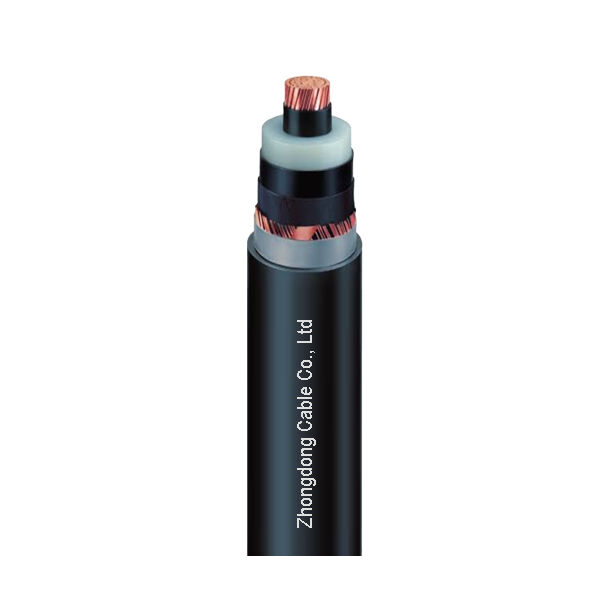

CONSTRUCTION

  66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2 066KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2 1


  • Conductor: Stranded circular or segmental (Milliken) compacted copper conductor
  • Conductor shield:Semi-conductive shield
  • Insulation: Cross-Linked Polyethylene(XLPE)
  • Insulation shield: Semi-conductive shield
  • Metal shielding layer:Corrugated Aluminum Sheath or Lead Sheath or Aluminum Laminated Tape
  • Binder tape:Non-woven fabrics
  • Metal Laminate Foil: Aluminum laminated tape
  • Outer sheath: PE


STANDARD


IEC 60840 IEC 62067


CHARACTERISTIC


  • Voltage Rating Uo/U: 64/110kV(123kV)
  • ‌Continuous Operation: ‌+90°C‌ Conductor Temp
  • ‌Emergency Overload‌:‌+105°C‌ Conductor Temp (≤100 hrs/year, ≤500 hrs/lifetime)
  • Short Circuit:‌‌+250°C‌ Conductor Temp (for calculated duration, typically 1-5s)
  • ‌Installation‌≥ 0°C
  • ‌Ambient Operation ‌≥ -40°C


PARAMETERS


Conductor

Insulation

Nominal Area of Copper Wires

Outer Jacket

Nominal
  Area

Max.DC
resistance at 20

Max.AC
resistance at 90

Nominal Thickness of Insulation
          Layers

Nominal
Thickness

Approx.
Overall
Diameter

Approx.
Overall
Weight

Cond.
Screen

XLPE

Ins.
Screen

mm²

Ω/km

Ω/km

mm

mm

mm

mm²

mm

mm

kg/m

300 R

0.0601

0.0787

1.2

15

1

95

3.5

67.9

6.47

400 R

0.047

0.0627

1.2

15

1

95

3.5

70.5

7.41

500 R

0.0366

0.0502

1.2

15

1

95

4

74.9

8.79

630 R

0.0283

0.0407

1.2

15

1

95

4

78.4

10.21

800 R

0.0221

0.0338

1.2

15

1

95

4

82.4

12.17

1000 S

0.0176

0.024

1.5

15

1.2

95

4

92.1

14.74

1200 S

0.0151

0.0211

1.5

15

1.2

95

4.5

97.1

17

1400 S

0.0129

0.0185

1.5

15

1.2

95

4.5

99.1

18.99

1600 S

0.0113

0.0168

1.5

15

1.2

95

4.5

103.1

20.72

2000 S

0.009

0.0143

1.5

15

1.2

95

4.5

108.1

24.42

2500 S

0.0072

0.0125

1.5

15

1.2

95

4.5

116.1

29.99


OUR FACTORY


66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2 2


PROJECT

66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2 3


APPLICATION

66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2 4


CERTIFICATES


66KV 69kv 110kv 132KV HV Cable XLPE Insulation High Voltage Cable 1000MM2 1500MM2 2500M2 5



FAQ

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express  account or prepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

(5).What is your payment term ?

Our payment term is usually T/T 30% in advanced, the balance before shipping or L/C at sight.
