110kV Distribution Networks High Voltage Power Cable CU/XLPE/CWS/STA/PE
| Insulation Material: | Xlpe | Conductor Material: | Aluminium Or Copper |
| Type: | High Voltage | Standard: | GB12706,GB12666,IEC60840,IEC60331 |
| Application: | Construction | Jacket: | PVC Or PE |
| High Light: | 630mm2 High Voltage Power Cable,XLPE Insulation HV Power Cable,Copper Screened XLPE Insulated Cable |
||

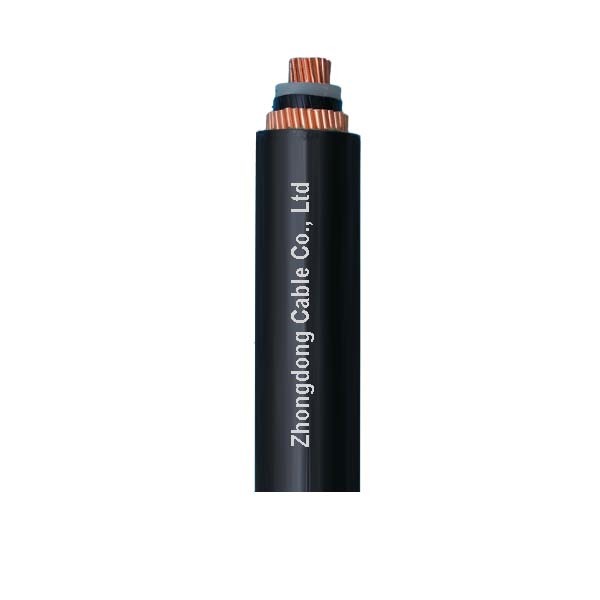

110kV Distribution Networks High Voltage Power Cable CU/XLPE/CWS/STA/PE
APPLICATION
This cable is designed for high-reliability, high-safety power transmission in complex environments, particularly for fixed installations in demanding conditions.
CONSTRUCTION
Conductor:Copper conductor
Conductor shield:Semi-conductive shield
Insulation:Cross-Linked Polyethylene(XLPE)
Insulation shield:Semi-conductive shield
Metal shielding layer: Copper Wire
Binder tape: Non-woven fabrics
Armour: Aluminum laminated tape
Outer sheath:PE
CHARACTERISTICS
Voltage Rating (Uo/U)(Um)64/110kV(123kV)
Temperature RatingOperating Temperature: -30°C to +90°C
Short Circuit Temperature: +250°C
Overload Temperature:+130'C(100h per year maximum)
Minimum Installation Temperature: -20°C
PARAMETERS
|
Conductor |
Insulation |
Nominal Area of Copper Wires |
Outer Jacket |
||||||||||||
|
Nominal |
Max.DC |
Max.AC |
Nominal Thickness of Insulation |
Nominal |
Approx. |
Approx. |
|||||||||
|
Cond. |
XLPE |
Ins. |
|||||||||||||
|
mm² |
Ω/km |
Ω/km |
mm |
mm |
mm |
mm² |
mm |
mm |
kg/m |
||||||
|
300 R |
0.0601 |
0.0787 |
1.2 |
15 |
1 |
95 |
3.5 |
67.9 |
6.47 |
||||||
|
400 R |
0.047 |
0.0627 |
1.2 |
15 |
1 |
95 |
3.5 |
70.5 |
7.41 |
||||||
|
500 R |
0.0366 |
0.0502 |
1.2 |
15 |
1 |
95 |
4 |
74.9 |
8.79 |
||||||
|
630 R |
0.0283 |
0.0407 |
1.2 |
15 |
1 |
95 |
4 |
78.4 |
10.21 |
||||||
|
800 R |
0.0221 |
0.0338 |
1.2 |
15 |
1 |
95 |
4 |
82.4 |
12.17 |
||||||
|
1000 S |
0.0176 |
0.024 |
1.5 |
15 |
1.2 |
95 |
4 |
92.1 |
14.74 |
||||||
|
1200 S |
0.0151 |
0.0211 |
1.5 |
15 |
1.2 |
95 |
4.5 |
97.1 |
17 |
||||||
|
1400 S |
0.0129 |
0.0185 |
1.5 |
15 |
1.2 |
95 |
4.5 |
99.1 |
18.99 |
||||||
|
1600 S |
0.0113 |
0.0168 |
1.5 |
15 |
1.2 |
95 |
4.5 |
103.1 |
20.72 |
||||||
|
2000 S |
0.009 |
0.0143 |
1.5 |
15 |
1.2 |
95 |
4.5 |
108.1 |
24.42 |
||||||
|
2500 S |
0.0072 |
0.0125 |
1.5 |
15 |
1.2 |
95 |
4.5 |
116.1 |
29.99 |
||||||
