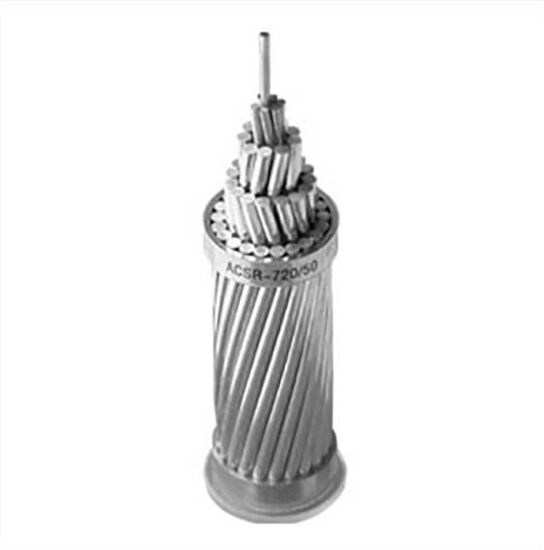

ACSR Overhead Line Conductor - Aluminum Conductor Steel Reinforced
High-performance overhead line conductor featuring aluminum conducting layers surrounding a galvanized steel core for superior mechanical strength and electrical conductivity.
Applications
ACSR cables are specialized power cables designed for:
- High-voltage transmission networks
- Railway electrification systems
- Industrial power applications
- Energy transmission and distribution systems
Construction
Steel Core
Serves as the mechanical strength backbone, composed of single or multiple strands of galvanized steel wires.
Aluminum Conducting Layers
High-purity aluminum wires concentrically stranded around the steel core using a helical layering process.
Characteristics
Electrical Properties
- Density at 20℃: 2.703 kg/dm³
- Temperature Coefficient at 20°C: 0.00403/°C
- Resistivity at 20°C: 0.028264 Ω•mm²/m
- Coefficient of linear expansion: 23 * 10⁻⁶/°C
Service Conditions
- Seismic Acceleration: 0.12 - 0.05g
- Ambient Temperature: -5°C - 50°C
- Wind Pressure: 80 - 130 kg/m²
- Isokeraunic Level: 10 - 18
- Relative Humidity: 5 - 100%
Specifications
| Section |
Aluminum Part |
Steel Part |
Min. Breaking Strength |
| 16/2.7 | 6 wires, 2.70 mm | 1 wire, 1.85 mm | 6,220 N |
| 25/4.2 | 6 wires, 2.30 mm | 1 wire, 2.30 mm | 9,296 N |
| 35/6.2 | 6 wires, 2.80 mm | 1 wire, 2.80 mm | 13,524 N |
| 50/8.0 | 6 wires, 3.20 mm | 1 wire, 3.20 mm | 17,112 N |
| Nov-70 | 6 wires, 3.80 mm | 1 wire, 3.80 mm | 24,130 N |
| 70/72 | 18 wires, 2.20 mm | 19 wires, 2.20 mm | 96,862 N |
| 95/16 | 6 wires, 4.50 mm | 1 wire, 4.50 mm | 33,369 N |
| 120/19 | 26 wires, 2.40 mm | 7 wires, 1.85 mm | 41,521 N |
| 120/27 | 30 wires, 2.20 mm | 7 wires, 2.20 mm | 49,465 N |
| 150/19 | 24 wires, 2.80 mm | 7 wires, 1.85 mm | 46,307 N |
| 150/24 | 26 wires, 2.70 mm | 7 wires, 2.10 mm | 52,279 N |
| 150/34 | 30 wires, 2.50 mm | 7 wires, 2.50 mm | 62,643 N |
| 185/24 | 24 wires, 3.15 mm | 7 wires, 2.10 mm | 58,075 N |
| 185/29 | 26 wires, 2.98 mm | 7 wires, 2.30 mm | 62,055 N |
| 185/43 | 30 wires, 2.80 mm | 7 wires, 2.80 mm | 77,767 N |
| 205/27.0 | 24 wires, 3.30 mm | 7 wires, 2.20 mm | 63,740 N |
| 240/32 | 24 wires, 3.60 mm | 7 wires, 2.40 mm | 75,050 N |
| 240/39 | 26 wires, 3.40 mm | 7 wires, 2.65 mm | 80,895 N |
| 240/56 | 30 wires, 3.20 mm | 7 wires, 3.20 mm | 98,253 N |
| 300/39 | 24 wires, 4.00 mm | 7 wires, 2.65 mm | 90,574 N |
| 300/48 | 26 wires, 3.80 mm | 7 wires, 2.95 mm | 100,623 N |
| 300/204 | 54 wires, 2.65 mm | 37 wires, 2.65 mm | 284,579 N |
| 330/43.0 | 54 wires, 2.80 mm | 7 wires, 2.80 mm | 103,784 N |
| 400/18 | 42 wires, 3.40 mm | 7 wires, 1.85 mm | 85,600 N |
| 400/51 | 54 wires, 3.05 mm | 7 wires, 3.05 mm | 120,481 N |
| 400/64 | 26 wires, 4.34 mm | 7 wires, 3.40 mm | 129,183 N |
| 400/93 | 30 wires, 4.15 mm | 19 wires, 2.50 mm | 173,715 N |
| 500/27 | 76 wires, 2.84 mm | 7 wires, 2.20 mm | 112,188 N |
| 500/64 | 54 wires, 3.40 mm | 7 wires, 3.40 mm | 148,257 N |
| 600/72 | 54 wires, 3.70 mm | 19 wires, 2.20 mm | 183,835 N |
