Name: Photovoltaic PV Cable Solar Cable H1Z2Z2-K with Copper Core XLPO Jacket for 1500V Solar Systems
Brand: Zhongdong Cable Co., Ltd.
SKU: H1z2z2-k
Availability: InStock

Detail Information

Voltage:	1.0/ 1.5kV	Armoring:	No
Insulation:	PVC	Core:	Multi Cores
Temperature Range:	- 30℃ To + 70℃	Sheathed:	PVC
Highlight:	Copper Core Solar Cable , XLPO Jacket Photovoltaic PV Cable , 1500V H1Z2Z2-K Cable

Product Description

The H1Z2Z2-K photovoltaic cable with copper core and XLPO jacket (6mm²/4mm², 1500V) is specifically engineered for solar energy systems, connecting photovoltaic panels to inverters and grids while ensuring efficient power transmission in demanding outdoor environments.

Applications

Designed for comprehensive solar energy system integration, this cable excels in:

DC connections between solar panels, junction boxes, and combiner boxes
Harsh environmental conditions with UV resistance and extreme temperature tolerance (-40°C to +90°C)
Safety-critical installations featuring halogen-free and flame-retardant properties for rooftops and large-scale solar farms

This cable complies with international standards including EN 50618 and is suitable for both residential and utility-scale solar projects.

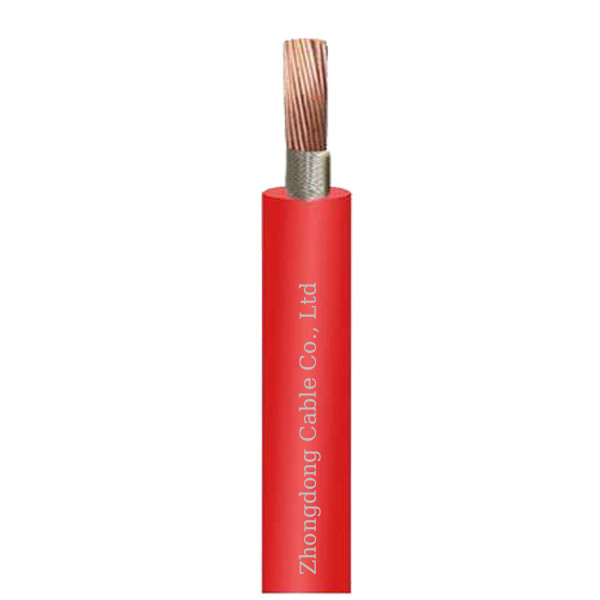

Construction

Conductor: Class 5 tinned copper conductors
Insulation: Halogen-free flame-retardant insulation material
Outer Sheath: Halogen-free flame-retardant sheath material

Technical Characteristics

Voltage Rating: Uo/U: 1.0/1.0kV, Um: 1.5kV
Maximum operating temperature of conductor: +120℃
Operating ambient temperature: -40℃ to +90℃
Cable laying temperature: Not less than -25℃
Minimum Bending Radius: 6D

Specifications

Cross Section (mm²)	Conductor Construction (no/mm)	Conductor Stranded OD.max (mm)	Cable OD. (mm)	Approximate Weight (kg/km)	Max Conductor Resistance (Ω/km, 20°C)
1*1.5	48/0.20	1.58	4.8	35	13.7
1*2.5	77/0.20	2.02	5.2	47	8.21
1*4	56/0.285	2.46	5.7	64	5.09
1*6	84/0.285	3.01	6.3	86	3.39
1*10	77/0.40	4.1	7.2	128	1.95
1*16	7*17/0.40	5.5	8.9	196	1.24
1*25	7*27/0.40	6.7	10.7	299	0.795
1*35	7*38/0.40	8.2	12.4	407	0.565
1*50	19*20/0.40	10.0	14.6	571	0.393
1*70	19*28/0.40	11.6	16.4	773	0.277
1*95	19*38/0.40	13.5	18.5	1024	0.210
1*120	24*38/0.40	14.4	19.8	1266	0.164
1*150	30*38/0.40	16.2	22.2	1584	0.132
1*185	37*38/0.40	18.2	25.0	1967	0.108
1*240	48*38/0.40	20.6	27.8	2518	0.0817

Our Manufacturing Facility

Project Applications

Industry Partnerships

Global Delivery

Frequently Asked Questions

What certifications do your photovoltaic cables comply with?

Our H1Z2Z2-K solar cables meet international standards such as EN 50618 (Europe), TÜV, and UL, ensuring safety and performance in solar systems.

Can your cables withstand extreme temperatures?

Yes, our XLPO-jacketed cables operate reliably from -40°C to +90°C, suitable for deserts and cold climates.

What customization options do you offer for project-specific needs?

We can tailor cable lengths, colors, and connectors based on customer requirements for seamless integration.

What is the lead time for bulk orders?

Standard production takes 15-20 days; expedited options are available for urgent projects.

Do you provide technical support for installation?

Yes, our team offers guidance on routing, bending radius, and compliance with local electrical codes.

How are your cables tested for quality assurance?

Each batch undergoes rigorous tests including insulation resistance, voltage withstand, and mechanical stress simulation.
