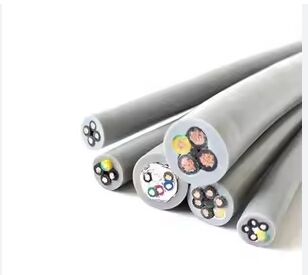

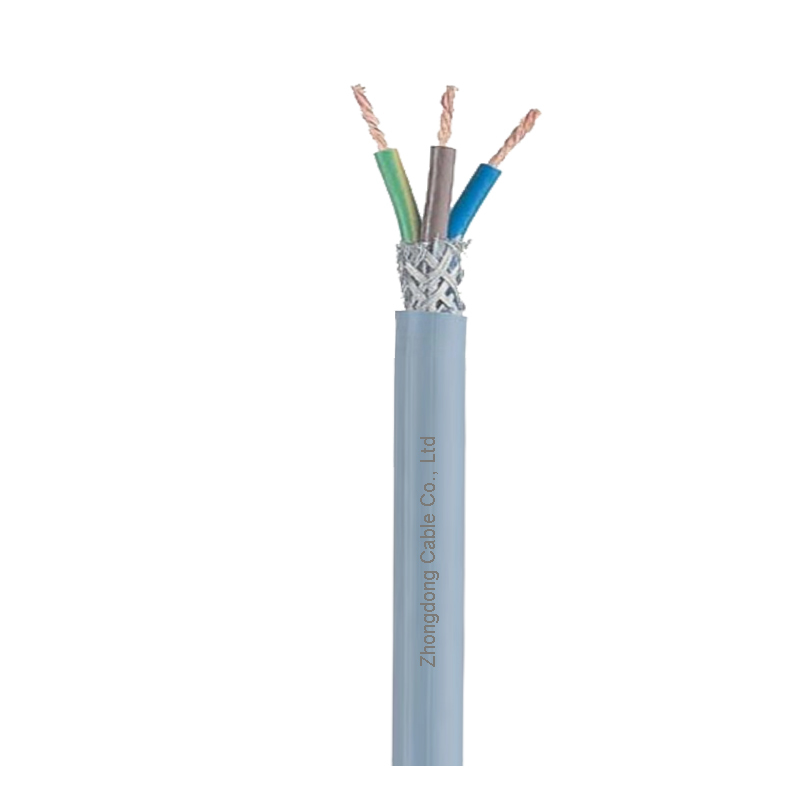

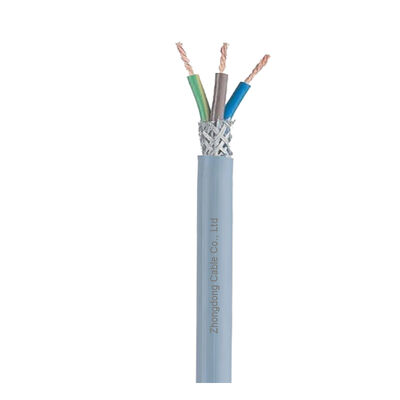

Name: CY PVC YSLCY Flexible Control Cable with Copper Braiding and PVC Sheath for instrumentation
Brand: Zhongdong Cable Co., Ltd.
SKU: KVVP NYCY
Availability: InStock

CY PVC YSLCY Flexible Control Cable with Copper Braiding and PVC Sheath for instrumentation

Basic Information

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO,VDE,ISO,TUV
Model Number:	KVVP NYCY

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Steel Drums
Delivery Time:	10Work days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Get Best Price Contact Now

Conductor Material:

Copper

Insulation Material:

PVC

Application:

Industrial

Jacket:

PVC

Color:

Optional

Cores:

4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Highlight:

Copper Braiding Control Cable

PVC Sheath Flexible Control Cable

EMI Shielding Instrumentation Cable

APPLICATION

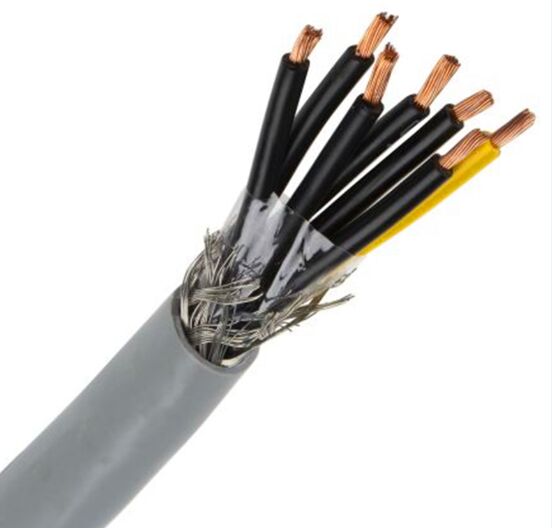

CY PVC (YSLCY) Flexible Control Cable with Copper Braiding and PVC Sheath is designed for instrumentation and control systems in industrial environments. Its copper braiding provides excellent electromagnetic interference (EMI) shielding, ensuring signal integrity in noisy settings. The PVC insulation and sheath offer durability, flexibility, and resistance to moisture, chemicals, and abrasion.

This cable is commonly used in:

Industrial automation‌ for connecting sensors, actuators, and control panels.

Instrumentation‌ in measurement and control systems where signal accuracy is critical.

Harsh environments‌ due to its robust construction, suitable for manufacturing plants and outdoor installations.

Its flexibility and shielding make it ideal for applications requiring reliable data transmission in challenging conditions.

CHARACTERISTIC

Voltage Rating Uo/U: 300/500V

Temperature Rating

Maximum operating temperature of conductor:+70℃

Operating ambient temperature: -15℃~+45℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius: 6D (D is the actual outer diameter of the cable)

SPECIFICATION

Spec

mm²

Conductor No core/mm

Conductor diameter mm

Approximate outer diameter of cable mm

Approximate cable weight kg/km

None

2×0.5

1/0.85

0.85

7.7

8.0

7.7

74.0

80.0

74.0

2×0.75

1/1.02

1.02

8.1

8.3

8.1

83.2

89.5

83.2

2×1

1/1.13

1.13

8.4

8.6

8.4

91.5

98.1

91.5

2×1.5

1/1.38

1.38

9.3

9.6

9.3

114.5

122.1

114.5

2×2.5

1/1.76

1.76

10.5

10.8

10.5

151.0

159.8

151.0

2×4

1/2.22

2.22

11.5

11.7

11.5

192.2

202.3

192.2

2×6

1/2.74

2.74

12.6

12.8

12.6

244.6

256.1

244.6

2×10

7/1.35

4.0

16.9

18.0

16.9

417.4

458.0

417.4

3×0.5

1/0.85

0.85

8.1

8.3

8.1

83.5

91.5

83.5

3×0.75

1/1.02

1.02

8.5

8.7

8.5

95.1

103.8

95.1

3×1

1/1.13

1.13

8.8

9.1

8.8

108.8

115.4

108.8

3×1.5

1/1.38

1.38

9.8

10.1

9.8

138.8

146.2

138.8

3×2.5

1/1.76

1.76

11.1

11.4

11.1

187.4

196.2

187.4

3×4

1/2.22

2.22

12.1

12.4

12.1

244.3

254.1

244.3

3×6

1/2.74

2.74

13.9

14.2

13.9

334.8

346.9

334.8

3×10

7/1.35

4.0

18.0

19.0

18.0

539.0

579.9

539.0

4×0.5

1/0.85

0.85

8.7

8.9

8.7

97.4

106.1

97.4

4×0.75

1/1.02

1.02

9.1

9.4

9.1

112.3

121.7

112.3

4×1

1/1.13

1.13

9.5

9.7

9.5

126.2

136.2

126.2

4×1.5

1/1.38

1.38

10.6

10.9

10.6

162.7

175.0

162.7

4×2.5

1/1.76

1.76

12.0

12.3

12.0

228.9

238.3

228.9

4×4

1/2.22

2.22

13.8

14.0

13.8

319.9

331.6

319.9

4×6

1/2.74

2.74

15.4

15.6

15.4

432.6

446.2

432.6

4×10

7/1.35

4.0

19.6

20.6

19.6

673.3

717.5

673.3

5×0.5

1/0.85

0.85

9.3

9.5

9.3

114.6

121.5

114.6

5×0.75

1/1.02

1.02

9.8

10.0

9.8

133.2

140.5

133.2

5×1

1/1.13

1.13

10.2

10.4

10.2

150.4

158.0

150.4

5×1.5

1/1.38

1.38

11.4

11.7

11.4

196.2

205.0

196.2

5×2.5

1/1.76

1.76

13.6

13.9

13.6

289.2

300.7

289.2

5×4

1/2.22

2.22

15.2

15.4

15.2

397.7

411.0

397.7

5×6

1/2.74

2.74

16.7

16.9

16.7

517.5

532.7

517.5

5×10

7/1.35

4.0

21.8

22.8

21.8

830.3

880.5

830.3

6×0.5

1/0.85

0.85

9.9

10.2

9.9

130.2

137.7

130.2

6×0.75

1/1.02

1.02

10.5

10.7

10.5

152.2

160.2

152.2

6×1

1/1.13

1.13

10.9

11.2

10.9

172.6

181.1

172.6

6×1.5

1/1.38

1.38

12.3

12.6

12.3

226.7

236.6

226.7

6×2.5

1/1.76

1.76

15.0

15.2

15.0

351.3

364.6

351.3

6×4

1/2.22

2.22

16.4

16.7

16.4

462.6

477.7

462.6

6×6

1/2.74

2.74

18.0

18.3

18.0

605.2

622.6

605.2

Contact us for more details

FAQ

What types of cable products does your company primarily manufacture?
We specialize in the production of various types of power cables, control cables, communication cables, and specialty cables, including but not limited to PVC-insulated cables, XLPE power cables, mining cables, marine cables, and photovoltaic cables.
Which international standards do your products comply with?
Our products comply with various international standards, such as IEC, BS, UL, ASTM, GB, etc., depending on the product type. We can provide products compliant with different international standards.
What quality certifications do you hold?
We have obtained ISO and CCC quality management system certifications, and some products have also obtained international certifications. We can also apply for specific certifications based on customer requirements.
What is the delivery lead time?
Standard products are typically in stock and can be shipped within 7-15 days. Customized products require 15-45 days depending on quantity.
Do you accept customized products?
We provide OEM and ODM service, we can customize cable products according to customer's special requirements, including specifications, colors, packaging and so on.
