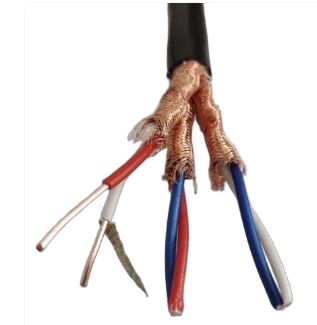

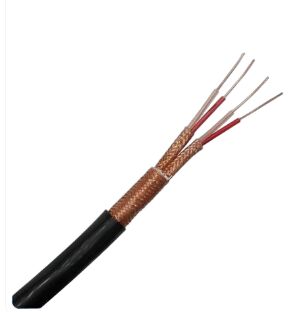

Product Overview
Copper Braided Screened Control Cable with PVC Insulation and Sheath, also known as Computer Cable, designed for reliable signal transmission in demanding industrial environments.
Applications
This versatile cable is widely used across various industrial and commercial applications:
- Industrial Control Systems: Connecting sensors, actuators, and controllers in manufacturing plants
- Building Automation: Wiring for HVAC, lighting, and security systems
- Data Communication: Providing shielded connections for computer networks and telecommunications equipment
- Power Distribution: Assisting in low-voltage power supply circuits within control panels
The copper braid shielding ensures immunity to electromagnetic interference (EMI), while the PVC insulation and sheath offer durability and protection in harsh environments.

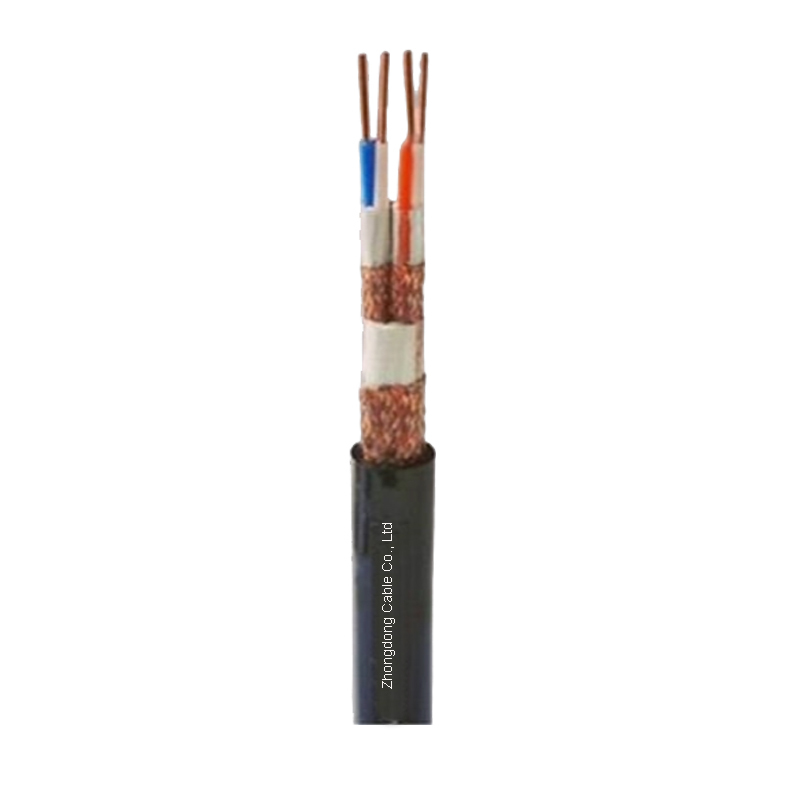

Construction Details
Conductor: First or second type of copper conductor
Insulation: Low density polyethylene (LLDPE)
Filler (optional): Filling rope
Separate shielding: Braided shielding (P)
Overall shield: Braided shielding (P)
Outer sheath: Polyvinyl chloride ST2 (PVC)
Cable Performance
Voltage Rating Uo/U: 300/500V
Maximum system voltage (Um): 600V
Maximum operating temperature of conductor: +70℃
Operating ambient temperature: -20℃ to +45℃
Cable laying temperature: Not less than 0℃ (preheating required when ambient temperature is below 0℃)
Minimum Bending Radius: During installation: 12D | After installation: 10D
Specifications
| No of Pair |
No of Core |
Section (mm²) |
Insulation Thickness (mm) |
Shielding Wire Diameter (mm) |
Overall Shielding Wire Diameter (mm) |
Outer Sheath Thickness (mm) |
Approx Outer Diameter (mm) |
Approx Cable Weight (kg/km) |
| 2 | 2 | 0.5 | 0.5 | 0.15 | 0.15 | 1.1 | 12.5 | 164 |
| 3 | 2 | 0.5 | 0.5 | 0.15 | 0.15 | 1.2 | 13.5 | 205 |
| 4 | 2 | 0.5 | 0.5 | 0.15 | 0.2 | 1.2 | 14.8 | 263 |
| 5 | 2 | 0.5 | 0.5 | 0.15 | 0.2 | 1.2 | 15.9 | 310 |
| 6 | 2 | 0.5 | 0.5 | 0.15 | 0.2 | 1.3 | 17.5 | 367 |
| 7 | 2 | 0.5 | 0.5 | 0.15 | 0.2 | 1.3 | 17.5 | 392 |
| 8 | 2 | 0.5 | 0.5 | 0.15 | 0.2 | 1.3 | 19.4 | 457 |
| 9 | 2 | 0.5 | 0.5 | 0.15 | 0.2 | 1.3 | 20.8 | 514 |
| 10 | 2 | 0.5 | 0.5 | 0.15 | 0.2 | 1.4 | 22.0 | 567 |
| 11 | 2 | 0.5 | 0.5 | 0.15 | 0.2 | 1.4 | 22.0 | 593 |
| 12 | 2 | 0.5 | 0.5 | 0.15 | 0.2 | 1.4 | 22.7 | 634 |
| 13 | 2 | 0.5 | 0.5 | 0.15 | 0.2 | 1.4 | 23.7 | 685 |
| 14 | 2 | 0.5 | 0.5 | 0.15 | 0.2 | 1.4 | 23.7 | 711 |
| 15 | 2 | 0.5 | 0.5 | 0.15 | 0.25 | 1.4 | 25.1 | 793 |
| 16 | 2 | 0.5 | 0.5 | 0.15 | 0.25 | 1.4 | 25.1 | 819 |
| 17 | 2 | 0.5 | 0.5 | 0.15 | 0.25 | 1.5 | 26.7 | 889 |
| 18 | 2 | 0.5 | 0.5 | 0.15 | 0.25 | 1.5 | 26.7 | 915 |
| 19 | 2 | 0.5 | 0.5 | 0.15 | 0.25 | 1.5 | 26.7 | 936 |
| 20 | 2 | 0.5 | 0.5 | 0.15 | 0.25 | 1.5 | 28.0 | 1005 |
Contact us for more details
Our Factory
Our Projects
Application Examples
Frequently Asked Questions
What is the primary purpose of this cable?
Designed for transmitting low-voltage signals in industrial control systems, automation, and computer networks, with enhanced EMI protection.
Why is copper braid shielding used?
The copper braid provides excellent electromagnetic interference (EMI) and radio frequency interference (RFI) shielding, ensuring signal integrity in noisy environments.
Can it be used outdoors or in damp environments?
Yes, the PVC sheath provides weather resistance, but for extreme conditions, additional protection (e.g., conduit or armored versions) may be required.
How does it compare to unshielded cables?
Shielded cables offer superior noise immunity and signal clarity, making them ideal for sensitive electronic equipment and high-interference areas.
What bending radius should be maintained during installation?
Follow manufacturer guidelines (usually 4-6 times the cable diameter) to avoid damaging the conductors or shielding.
How do I ensure proper termination of the shielding?
Use appropriate shielding termination techniques (e.g., grounding clips, connectors with integrated shields) to maintain EMI effectiveness.
