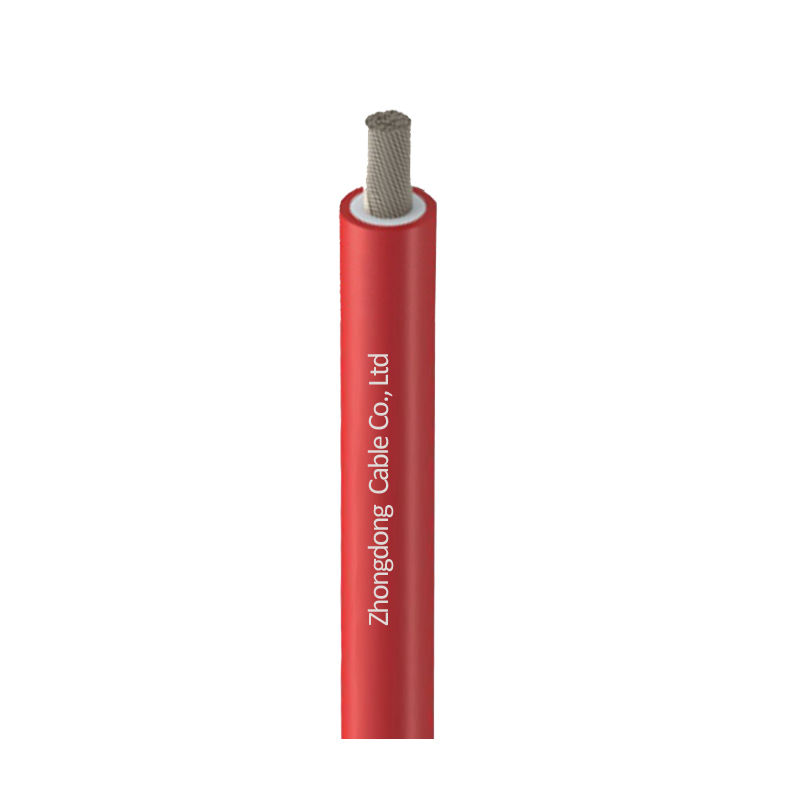

H1Z2Z2-K Solar Cable 1X2.5mm2 1x4mm2 1x6mm2 EAC Certified for Solar Field
APPLICATION
- Solar panel connections: Linking photovoltaic modules in series/parallel arrays, with 1.5mm²-6mm² conductors supporting 33-57A current
- DC power transmission: Rated for 1500V DC in solar fields, ensuring efficient energy distribution over long distances
- Harsh environments: Withstands -40°C to +125°C temperatures and UV exposure, ideal for outdoor installations
- Safety compliance: EAC certification meets Eurasian standards, while flame-retardant XLPO insulation reduces fire risks
CONSTRUCTION
- Conductor: Class 5 tinned copper conductors
- Insulation: Halogen free flame-retardant insulation material for solar cables
- Outer sheath:Halogen free flame retardant sheath material for solar cables
CHARACTERISTIC
- Voltage Rating: Uo/U:1.0/1.0kV Um:1.5kV
- Maximum operating temperature of conductor:+120℃
- Operating ambient temperature: -40℃~+90℃
- Cable laying temperature:Not less than -25℃
- Minimum Bending Radius: 6D
SPECIFICATIONS
|
Cross section(mm²)
|
Conductor Construction(no/mm)
|
Conductor Stranded OD.max(mm)
|
Cable OD.(mm)
|
Approximate weight of cable
kg/km
|
Max Conductor Resistance(Ω/km,20°C)
|
|
1×1.5
|
48/0.20
|
1.58
|
4.8
|
35
|
13.7
|
|
1×2.5
|
77/0.20
|
2.02
|
5.2
|
47
|
8.21
|
|
1×4
|
56/0.285
|
2.46
|
5.7
|
64
|
5.09
|
|
1×6
|
84/0.285
|
3.01
|
6.3
|
86
|
3.39
|
|
1×10
|
77/0.40
|
4.1
|
7.2
|
128
|
1.95
|
|
1×16
|
7×17/0.40
|
5.5
|
8.9
|
196
|
1.24
|
|
1×25
|
7×27/0.40
|
6.7
|
10.7
|
299
|
0.795
|
|
1×35
|
7×38/0.40
|
8.2
|
12.4
|
407
|
0.565
|
|
1×50
|
19×20/0.40
|
10.0
|
14.6
|
571
|
0.393
|
|
1×70
|
19×28/0.40
|
11.6
|
16.4
|
773
|
0.277
|
|
1×95
|
19×38/0.40
|
13.5
|
18.5
|
1024
|
0.210
|
|
1×120
|
24×38/0.40
|
14.4
|
19.8
|
1266
|
0.164
|
|
1×150
|
30×38/0.40
|
16.2
|
22.2
|
1584
|
0.132
|
|
1×185
|
37×38/0.40
|
18.2
|
25.0
|
1967
|
0.108
|
|
1×240
|
48×38/0.40
|
20.6
|
27.8
|
2518
|
0.0817
|
OUR FACTORY
PROJECTS
PARTNER
Why Choose us
FAQ
What are the primary applications of this solar cable?
Designed for connecting photovoltaic panels in solar power systems, including rooftop arrays, ground-mounted installations, and solar farms, ensuring efficient DC power transmission.
Why is EAC certification important for this cable?
EAC certification confirms compliance with Eurasian Economic Union safety standards, ensuring the cable meets rigorous quality and performance requirements for regional markets.
What conductor sizes are available, and how are they used?
Available in 1×2.5mm², 1×4mm², and 1×6mm² sizes, tailored for different current loads in solar panel connections, with 6mm² supporting higher amperage for larger installations.
How does the cable perform in extreme temperatures?
Operates effectively in temperatures ranging from -40°C to +125°C, making it suitable for outdoor use in diverse climates, from freezing winters to hot summers.
Is the cable resistant to UV and environmental exposure?
Yes, it features durable insulation that withstands UV radiation, moisture, and harsh weather conditions, ensuring long-term reliability in open solar fields.
What voltage rating does this cable support?
Rated for 1500V DC, it is ideal for high-voltage solar applications, minimizing energy loss over long distances in large-scale solar projects.
Does the cable include flame-retardant properties?
Yes, it incorporates flame-retardant materials to reduce fire risks, enhancing safety in critical installations like buildings and public infrastructure.
Where should the cable be installed for optimal performance?
Suitable for both indoor and outdoor environments, including cable trays, ducts, or direct burial, providing flexibility in solar system design.
