64/110kV HV High Voltage Power Cable 1X630mm IEC 60840 IEC 62067
APPLICATION
- Urban Power Distribution: Transmits electricity efficiently in densely populated areas.
- Industrial Power Supply: Supports large-scale industrial facilities with high energy demands.
- Renewable Energy Integration: Connects wind/solar farms to the grid.
CONSTRUCTION

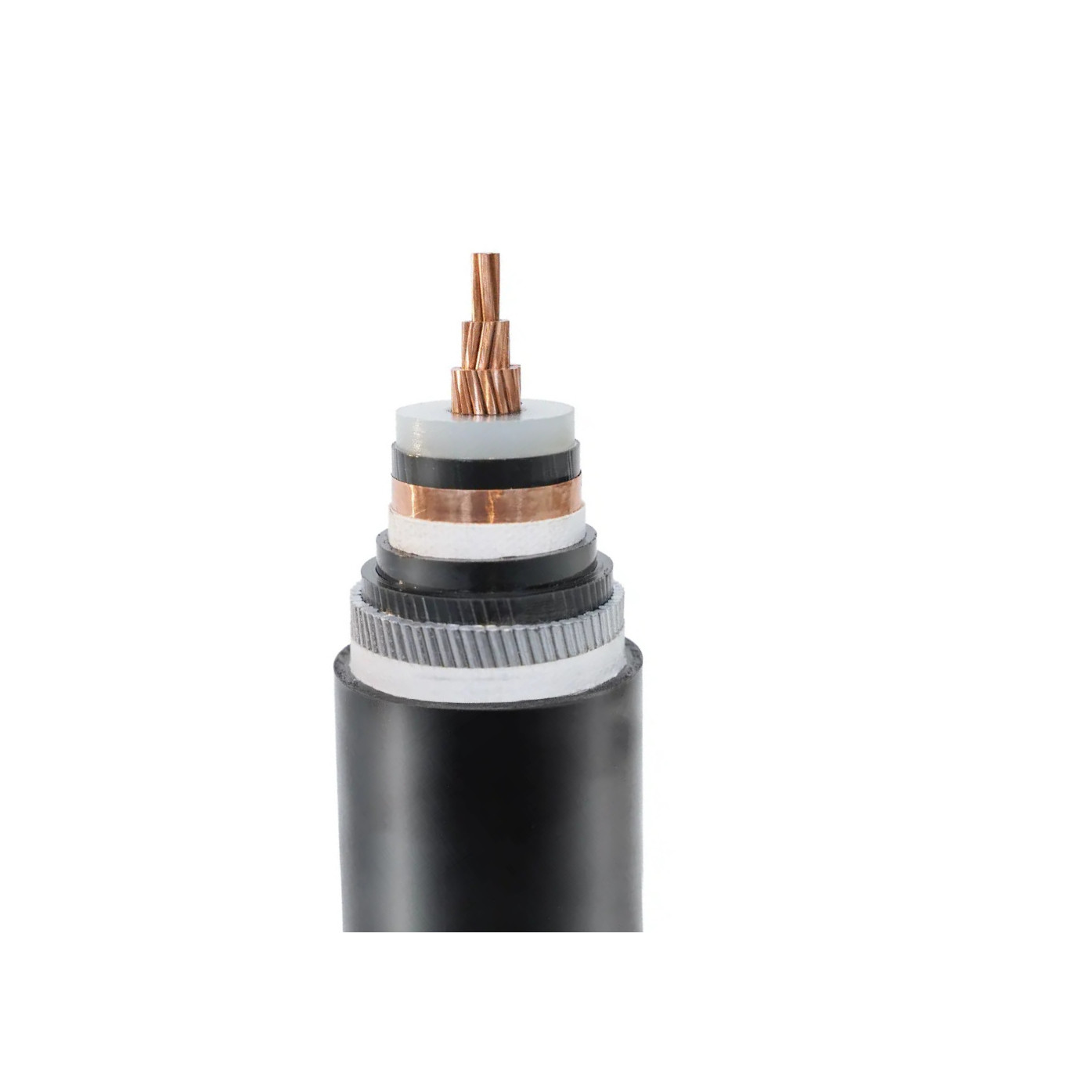

- Conductor: Stranded circular or segmental (Milliken) compacted copper conductor
- Conductor shield:Semi-conductive shield
- Insulation: Cross-Linked Polyethylene(XLPE)
- Insulation shield: Semi-conductive shield
- Metal shielding layer:Corrugated Aluminum Sheath or Lead Sheath or Aluminum Laminated Tape
- Binder tape:Non-woven fabrics
- Metal Laminate Foil: Aluminum laminated tape
- Outer sheath: PE
STANDARD
IEC 60840 IEC 62067
CHARACTERISTIC
- Voltage Rating Uo/U: 64/110kV(123kV)
- Continuous Operation: +90°C Conductor Temp
- Emergency Overload:+105°C Conductor Temp (≤100 hrs/year, ≤500 hrs/lifetime)
- Short Circuit:+250°C Conductor Temp (for calculated duration, typically 1-5s)
- Installation ≥ 0°C
- Ambient Operation ≥ -40°C
PARAMETERS
|
Conductor
|
Insulation
|
Nominal Area of Copper Wires
|
Outer Jacket
|
|
Nominal
Area
|
Max.DC
resistance at 20℃
|
Max.AC
resistance at 90℃
|
Nominal Thickness of Insulation
Layers
|
Nominal
Thickness
|
Approx.
Overall
Diameter
|
Approx.
Overall
Weight
|
|
Cond.
Screen
|
XLPE
|
Ins.
Screen
|
|
mm²
|
Ω/km
|
Ω/km
|
mm
|
mm
|
mm
|
mm²
|
mm
|
mm
|
kg/m
|
|
300 R
|
0.0601
|
0.0787
|
1.2
|
15
|
1
|
95
|
3.5
|
67.9
|
6.47
|
|
400 R
|
0.047
|
0.0627
|
1.2
|
15
|
1
|
95
|
3.5
|
70.5
|
7.41
|
|
500 R
|
0.0366
|
0.0502
|
1.2
|
15
|
1
|
95
|
4
|
74.9
|
8.79
|
|
630 R
|
0.0283
|
0.0407
|
1.2
|
15
|
1
|
95
|
4
|
78.4
|
10.21
|
|
800 R
|
0.0221
|
0.0338
|
1.2
|
15
|
1
|
95
|
4
|
82.4
|
12.17
|
|
1000 S
|
0.0176
|
0.024
|
1.5
|
15
|
1.2
|
95
|
4
|
92.1
|
14.74
|
|
1200 S
|
0.0151
|
0.0211
|
1.5
|
15
|
1.2
|
95
|
4.5
|
97.1
|
17
|
|
1400 S
|
0.0129
|
0.0185
|
1.5
|
15
|
1.2
|
95
|
4.5
|
99.1
|
18.99
|
|
1600 S
|
0.0113
|
0.0168
|
1.5
|
15
|
1.2
|
95
|
4.5
|
103.1
|
20.72
|
|
2000 S
|
0.009
|
0.0143
|
1.5
|
15
|
1.2
|
95
|
4.5
|
108.1
|
24.42
|
|
2500 S
|
0.0072
|
0.0125
|
1.5
|
15
|
1.2
|
95
|
4.5
|
116.1
|
29.99
|
