110kV High Voltage Cable XLPE Insulation Copper Wire Screen Power Cable Transmission Cable
| Insulation Material: | Xlpe | Jacket: | PE |
| Conductor Material: | Stranded Circular Or Segmental (Milliken) Compacted Copper Conductor | Nominal Voltage: | 38/66kV(72.5kV) |
| Core: | 1 Core | Application: | Underground |
| High Light: | 110kV XLPE insulation power cable,high voltage copper wire screen cable,XLPE transmission cable with warranty |
||
110kV High Voltage Cable XLPE Insulation Copper Wire Screen Power Cable Transmission Cable
APPLICATION
1. Urban Power Supply
- Replaces overhead lines to enhance reliability
- Saves space and improves city aesthetics.
2. Industrial Power
- Supports high-load facilities (steel plants, data centers).
- Connects renewable energy (wind/solar farms) to the grid.

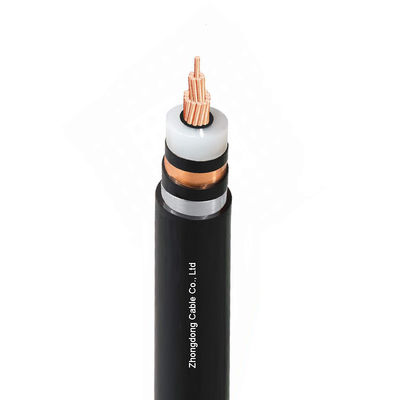

CONSTRUCTION
- Conductor: Stranded circular or segmental (Milliken) compacted copper conductor
- Conductor shield:Semi-conductive shield
- Insulation: Cross-Linked Polyethylene(XLPE)
- Insulation shield: Semi-conductive shield
- Metal shielding layer:Corrugated Aluminum Sheath or Lead Sheath or Aluminum Laminated Tape
- Binder tape:Non-woven fabrics
- Metal Laminate Foil: Aluminum laminated tape
- Outer sheath: PE
STANDARD
IEC 60840 IEC 62067
CHARACTERISTIC
- Voltage Rating Uo/U: 64/110kV(123kV)
- Continuous Operation: +90°C Conductor Temp
- Emergency Overload:+105°C Conductor Temp (≤100 hrs/year, ≤500 hrs/lifetime)
- Short Circuit:+250°C Conductor Temp (for calculated duration, typically 1-5s)
- Installation ≥ 0°C
- Ambient Operation ≥ -40°C
PARAMETERS
|
Conductor |
Insulation |
Nominal Area of Copper Wires |
Outer Jacket |
||||||||||||
|
Nominal |
Max.DC |
Max.AC |
Nominal Thickness of Insulation |
Nominal |
Approx. |
Approx. |
|||||||||
|
Cond. |
XLPE |
Ins. |
|||||||||||||
|
mm² |
Ω/km |
Ω/km |
mm |
mm |
mm |
mm² |
mm |
mm |
kg/m |
||||||
|
300 R |
0.0601 |
0.0787 |
1.2 |
15 |
1 |
95 |
3.5 |
67.9 |
6.47 |
||||||
|
400 R |
0.047 |
0.0627 |
1.2 |
15 |
1 |
95 |
3.5 |
70.5 |
7.41 |
||||||
|
500 R |
0.0366 |
0.0502 |
1.2 |
15 |
1 |
95 |
4 |
74.9 |
8.79 |
||||||
|
630 R |
0.0283 |
0.0407 |
1.2 |
15 |
1 |
95 |
4 |
78.4 |
10.21 |
||||||
|
800 R |
0.0221 |
0.0338 |
1.2 |
15 |
1 |
95 |
4 |
82.4 |
12.17 |
||||||
|
1000 S |
0.0176 |
0.024 |
1.5 |
15 |
1.2 |
95 |
4 |
92.1 |
14.74 |
||||||
|
1200 S |
0.0151 |
0.0211 |
1.5 |
15 |
1.2 |
95 |
4.5 |
97.1 |
17 |
||||||
|
1400 S |
0.0129 |
0.0185 |
1.5 |
15 |
1.2 |
95 |
4.5 |
99.1 |
18.99 |
||||||
|
1600 S |
0.0113 |
0.0168 |
1.5 |
15 |
1.2 |
95 |
4.5 |
103.1 |
20.72 |
||||||
|
2000 S |
0.009 |
0.0143 |
1.5 |
15 |
1.2 |
95 |
4.5 |
108.1 |
24.42 |
||||||
|
2500 S |
0.0072 |
0.0125 |
1.5 |
15 |
1.2 |
95 |
4.5 |
116.1 |
29.99 |
||||||
