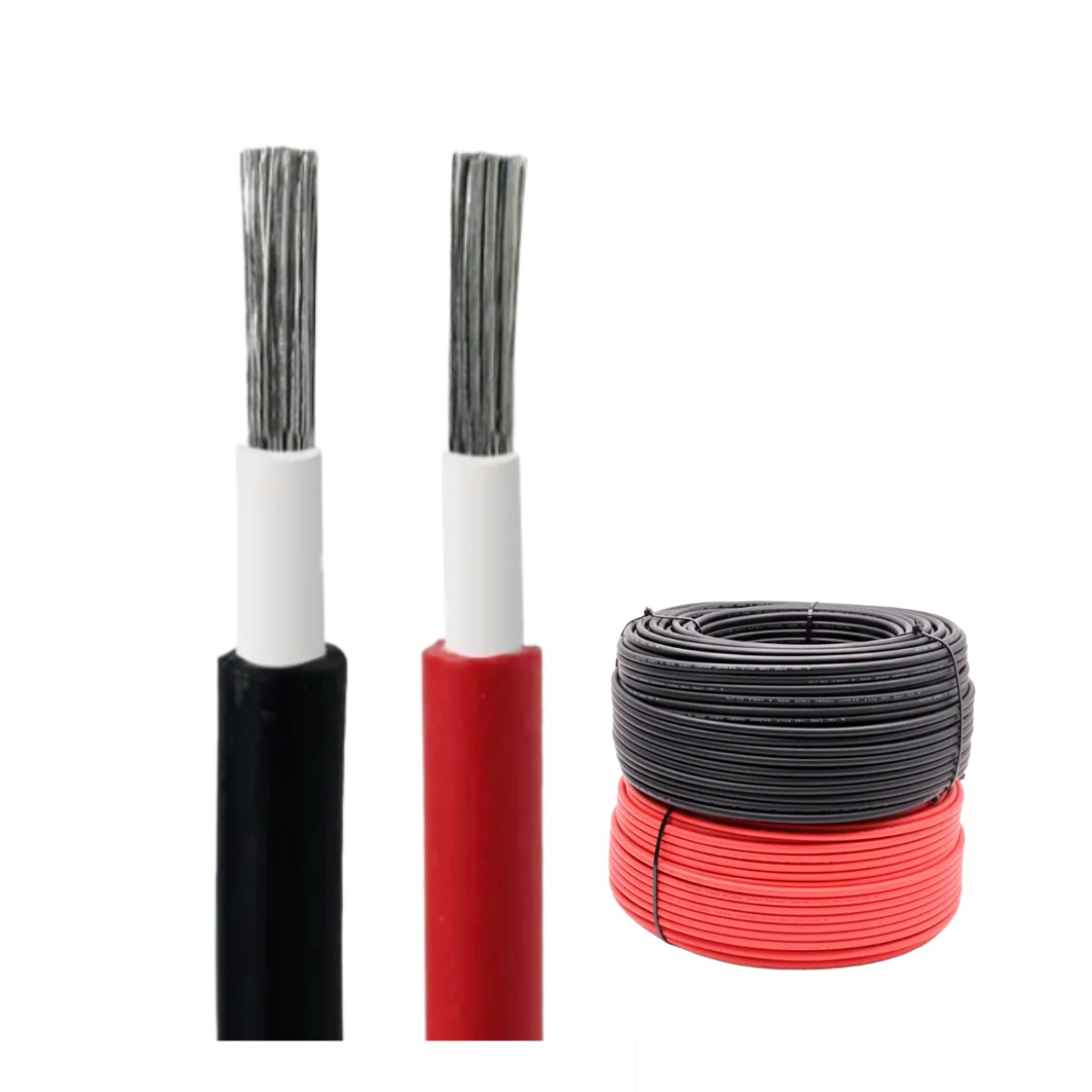

DC Solar Cable H1z2z2-k 6mm2 4mm2 1500v Flame Retardant Sheath for Solar Panel

APPLICATION

• The interconnection between photovoltaic modules
• Parallel connection between series and between modules and DC distribution boxes (combiner boxes)
• Connection between DC distribution boxes and inverters.

CONSTRUCTION

• Conductor: Class 5 tinned copper conductors
• Insulation: Halogen free flame-retardant insulation material for solar cables
• Outer sheath:Halogen free flame retardant sheath material for solar cables

CHARACTERISTIC

• Voltage Rating:  Uo/U:1.0/1.0kV  Um:1.5kV
• Maximum operating temperature of conductor:+120℃
• Operating ambient temperature: -40℃~+90℃
• Cable laying temperature:Not less than -25℃
•  Minimum Bending Radius: 6D

SPECIFICATIONS

OUR FACTORY

PROJECTS

PARTNER

FAQ

Q. What certifications does your company hold for cable production?‌
Answer‌: We comply with ‌ISO 9001, IEC 60502, and RoHS‌ standards, with additional certifications for regional markets (e.g., UL, CE, TÜV).

Q. Do you provide custom cable lengths?‌
Answer‌: Yes, we offer ‌cut-to-length services‌ with MOQ (Minimum Order Quantity) of ‌500m per order‌.

Q. What flame-retardant standards do your cables meet?‌
Answer‌: ‌IEC 60332-1/2‌ (single/bundle flame tests) and ‌LSZH (Low Smoke Zero Halogen)‌ options.

Q. What is the lead time for bulk orders?‌
Answer‌: ‌15–30 days‌ after order confirmation, depending on quantity and customization.

Q. Do you provide testing reports for each batch?‌
Answer‌: Yes, we include ‌third-party test reports‌ (e.g., conductor resistance, insulation thickness).

Q. What is your warranty policy?‌
Answer‌: ‌10 years‌ for material defects, subject to proper installation and usage conditions.
