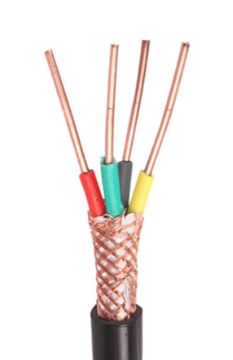

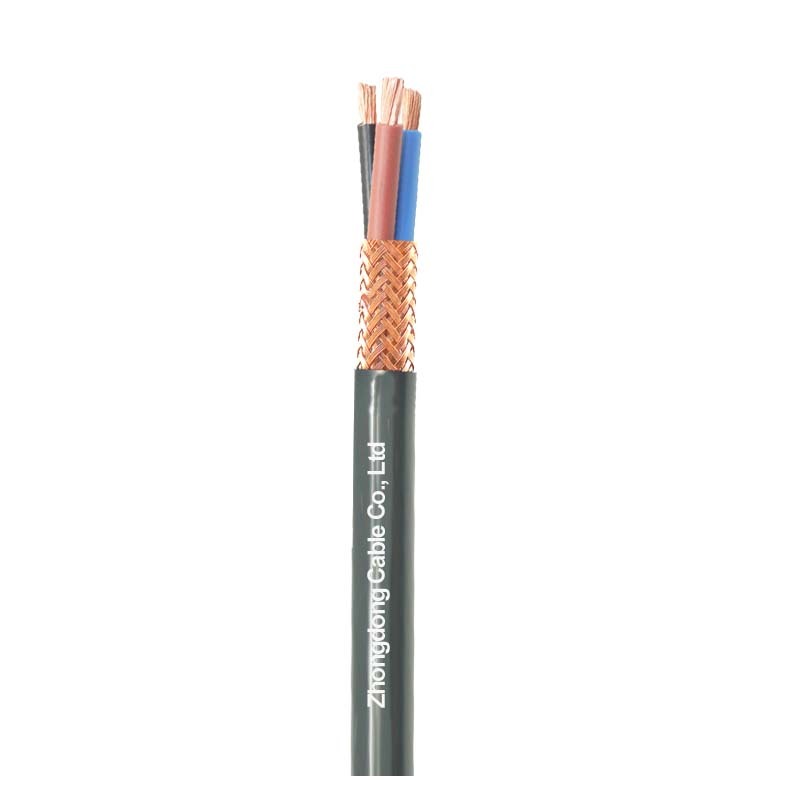

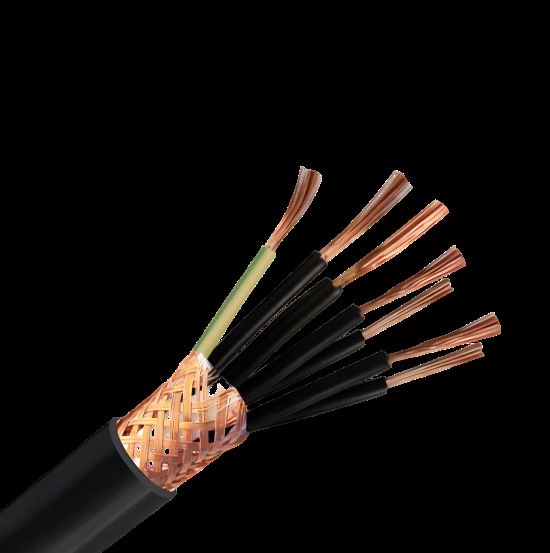

EAC Certificated Screened Control Cable KVVGeng CU/PVC/CWS/PVC Braided Shielded Flame-retardant
| Conductor Material: | Copper | Insulation Material: | PVC |
| Application: | Industrial | Jacket: | PVC |
| Color: | Optional | cores: | 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 |
| High Light: | copper wire control cable,PVC insulated control cable,braided screened control cable |
||
EAC Certificated Screened Control Cable KVVGeng CU/PVC/CWS/PVC Braided Shielded Flame-retardant
APPLICATION
This product is suitable for use in control, monitoring circuits, and protection circuits in circuits with a rated voltage of 450/750V and below
CONSTRUCTION
- Conductor: Circular solid copper conductor(A) or circular stranded copper conductor(B)
- Insulation: Polyvinyl chloride (PVC)
- Filler: Polypropylene netting tear cord or flame-retardant filling
- Braiding: Soft round copper wire or tin plated round copper wire
- Outer sheath: Polyvinyl chloride (PVC)
CHARACTERISTIC
- Voltage Rating Uo/U: 450/750V
- Temperature Rating
- Maximum operating temperature of conductor:+70℃
- Operating ambient temperature: -15℃~+45℃
- Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
- Minimum Bending Radius: 6D (D is the actual outer diameter of the cable)
SPECIFICATION
|
Spec mm² |
Conductor No core/mm |
Conductor diameter mm |
Approximate outer diameter of cable mm |
Approximate cable weight kg/km |
||||||
|
None |
ZA |
ZB |
ZC |
None |
ZA |
ZB |
ZC |
|||
|
2×0.5 |
1/0.85 |
0.85 |
7.7 |
8.0 |
8.0 |
7.7 |
74.0 |
80.0 |
80.0 |
74.0 |
|
2×0.75 |
1/1.02 |
1.02 |
8.1 |
8.3 |
8.3 |
8.1 |
83.2 |
89.5 |
89.5 |
83.2 |
|
2×1 |
1/1.13 |
1.13 |
8.4 |
8.6 |
8.6 |
8.4 |
91.5 |
98.1 |
98.1 |
91.5 |
|
2×1.5 |
1/1.38 |
1.38 |
9.3 |
9.6 |
9.6 |
9.3 |
114.5 |
122.1 |
122.1 |
114.5 |
|
2×2.5 |
1/1.76 |
1.76 |
10.5 |
10.8 |
10.8 |
10.5 |
151.0 |
159.8 |
159.8 |
151.0 |
|
2×4 |
1/2.22 |
2.22 |
11.5 |
11.7 |
11.7 |
11.5 |
192.2 |
202.3 |
202.3 |
192.2 |
|
2×6 |
1/2.74 |
2.74 |
12.6 |
12.8 |
12.8 |
12.6 |
244.6 |
256.1 |
256.1 |
244.6 |
|
2×10 |
7/1.35 |
4.0 |
16.9 |
18.0 |
18.0 |
16.9 |
417.4 |
458.0 |
458.0 |
417.4 |
|
3×0.5 |
1/0.85 |
0.85 |
8.1 |
8.3 |
8.3 |
8.1 |
83.5 |
91.5 |
91.5 |
83.5 |
|
3×0.75 |
1/1.02 |
1.02 |
8.5 |
8.7 |
8.7 |
8.5 |
95.1 |
103.8 |
103.8 |
95.1 |
|
3×1 |
1/1.13 |
1.13 |
8.8 |
9.1 |
9.1 |
8.8 |
108.8 |
115.4 |
115.4 |
108.8 |
|
3×1.5 |
1/1.38 |
1.38 |
9.8 |
10.1 |
10.1 |
9.8 |
138.8 |
146.2 |
146.2 |
138.8 |
|
3×2.5 |
1/1.76 |
1.76 |
11.1 |
11.4 |
11.4 |
11.1 |
187.4 |
196.2 |
196.2 |
187.4 |
|
3×4 |
1/2.22 |
2.22 |
12.1 |
12.4 |
12.4 |
12.1 |
244.3 |
254.1 |
254.1 |
244.3 |
|
3×6 |
1/2.74 |
2.74 |
13.9 |
14.2 |
14.2 |
13.9 |
334.8 |
346.9 |
346.9 |
334.8 |
|
3×10 |
7/1.35 |
4.0 |
18.0 |
19.0 |
19.0 |
18.0 |
539.0 |
579.9 |
579.9 |
539.0 |
|
4×0.5 |
1/0.85 |
0.85 |
8.7 |
8.9 |
8.9 |
8.7 |
97.4 |
106.1 |
106.1 |
97.4 |
|
4×0.75 |
1/1.02 |
1.02 |
9.1 |
9.4 |
9.4 |
9.1 |
112.3 |
121.7 |
121.7 |
112.3 |
|
4×1 |
1/1.13 |
1.13 |
9.5 |
9.7 |
9.7 |
9.5 |
126.2 |
136.2 |
136.2 |
126.2 |
|
4×1.5 |
1/1.38 |
1.38 |
10.6 |
10.9 |
10.9 |
10.6 |
162.7 |
175.0 |
175.0 |
162.7 |
|
4×2.5 |
1/1.76 |
1.76 |
12.0 |
12.3 |
12.3 |
12.0 |
228.9 |
238.3 |
238.3 |
228.9 |
|
4×4 |
1/2.22 |
2.22 |
13.8 |
14.0 |
14.0 |
13.8 |
319.9 |
331.6 |
331.6 |
319.9 |
|
4×6 |
1/2.74 |
2.74 |
15.4 |
15.6 |
15.6 |
15.4 |
432.6 |
446.2 |
446.2 |
432.6 |
|
4×10 |
7/1.35 |
4.0 |
19.6 |
20.6 |
20.6 |
19.6 |
673.3 |
717.5 |
717.5 |
673.3 |
|
5×0.5 |
1/0.85 |
0.85 |
9.3 |
9.5 |
9.5 |
9.3 |
114.6 |
121.5 |
121.5 |
114.6 |
|
5×0.75 |
1/1.02 |
1.02 |
9.8 |
10.0 |
10.0 |
9.8 |
133.2 |
140.5 |
140.5 |
133.2 |
|
5×1 |
1/1.13 |
1.13 |
10.2 |
10.4 |
10.4 |
10.2 |
150.4 |
158.0 |
158.0 |
150.4 |
|
5×1.5 |
1/1.38 |
1.38 |
11.4 |
11.7 |
11.7 |
11.4 |
196.2 |
205.0 |
205.0 |
196.2 |
|
5×2.5 |
1/1.76 |
1.76 |
13.6 |
13.9 |
13.9 |
13.6 |
289.2 |
300.7 |
300.7 |
289.2 |
|
5×4 |
1/2.22 |
2.22 |
15.2 |
15.4 |
15.4 |
15.2 |
397.7 |
411.0 |
411.0 |
397.7 |
|
5×6 |
1/2.74 |
2.74 |
16.7 |
16.9 |
16.9 |
16.7 |
517.5 |
532.7 |
532.7 |
517.5 |
|
5×10 |
7/1.35 |
4.0 |
21.8 |
22.8 |
22.8 |
21.8 |
830.3 |
880.5 |
880.5 |
830.3 |
|
6×0.5 |
1/0.85 |
0.85 |
9.9 |
10.2 |
10.2 |
9.9 |
130.2 |
137.7 |
137.7 |
130.2 |
|
6×0.75 |
1/1.02 |
1.02 |
10.5 |
10.7 |
10.7 |
10.5 |
152.2 |
160.2 |
160.2 |
152.2 |
|
6×1 |
1/1.13 |
1.13 |
10.9 |
11.2 |
11.2 |
10.9 |
172.6 |
181.1 |
181.1 |
172.6 |
|
6×1.5 |
1/1.38 |
1.38 |
12.3 |
12.6 |
12.6 |
12.3 |
226.7 |
236.6 |
236.6 |
226.7 |
|
6×2.5 |
1/1.76 |
1.76 |
15.0 |
15.2 |
15.2 |
15.0 |
351.3 |
364.6 |
364.6 |
351.3 |
|
6×4 |
1/2.22 |
2.22 |
16.4 |
16.7 |
16.7 |
16.4 |
462.6 |
477.7 |
477.7 |
462.6 |
|
6×6 |
1/2.74 |
2.74 |
18.0 |
18.3 |
18.3 |
18.0 |
605.2 |
622.6 |
622.6 |
605.2 |
Contact us for more details
OUR FACTORY
PROJECTS
APPLICATION
WHY US
FAQ
What is the primary application of EAC-certified KVVGeng flame-retardant control cable?
Designed for industrial automation systems, this cable ensures reliable signal transmission in fire-prone environments, such as power plants and manufacturing facilities, due to its flame-retardant PVC insulation and copper braided shielding
Why is the copper braided shield critical in KVVGeng cables?
The copper braid provides electromagnetic interference (EMI) protection, safeguarding signal integrity in high-noise environments like motor control centers
How does the flame-retardant PVC sheath enhance safety?
The PVC material self-extinguishes upon ignition, minimizing flame spread and toxic smoke emission per GOST 22483 standards
Is KVVGeng suitable for outdoor installations?
Yes, provided it’s installed in conduits or trays to shield it from UV exposure and mechanical stress
Does the cable comply with EAC regulations?
Yes, it meets EAC certification (Customs Union Technical Regulation) for safety and performance in Eurasian markets.
How to distinguish KVVGeng from similar cables?
Look for the “ng” suffix (indicating flame-retardant) and braided shielding, unlike unshielded variants like KVV
