High Voltage Bare Copper Overhead Conductor Solid Flexible 10~185mm2
| Range Of Application: | Overhead Transmission | Material: | Coppper |
| Drum Packing: | Steel Wooden Drum | Per Drum Weight: | As Per Request |
| Voltage: | Up To 110KV | Product: | Bare Conductor |
| High Light: | High Voltage Copper Overhead Conductor,Overhead Transmission Bare Copper Conductor |
||
Solid Flexible Copper Bare Conductor Electric Grounding Cable Bare Copper Wire
Application
This high voltage bare copper conductor is used in overhead power transmission lines. It can also be used as bus line in power stations or other applications where high current carrying capacity is required.
Descripction

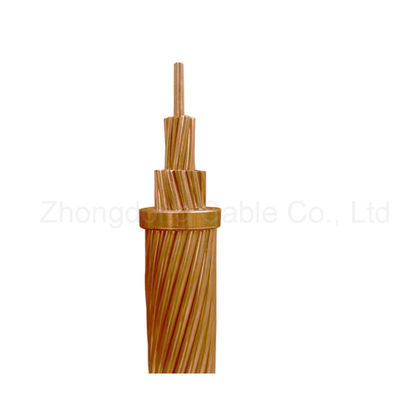

- Conductor: stranded hard drawn copper
- No. of strands: 3, 7, 19, 37
- Conductor shape: round
- Lay direction of outer layer: right
- Conductor specification
Specification
|
Nominal Area |
Construction |
Overall Dia. |
Approx. weight |
Max. DC Resist. |
Min. Breaking Load |
|
10 |
7/1.35 |
4.05 |
89.82 |
1.829 |
3752 |
|
14 |
7/1.60 |
4.80 |
126.2 |
1.303 |
5267 |
|
16 |
3/2.65 |
5.70 |
148.3 |
1.106 |
6194 |
|
16 |
7/1.70 |
5.10 |
142.4 |
1.154 |
5946 |
|
25 |
7/2.10 |
6.30 |
217.3 |
0.7563 |
9073 |
|
32 |
3/3.75 |
8.06 |
296.9 |
0.5520 |
12400 |
|
32 |
7/2.46 |
7.38 |
298.2 |
0.5497 |
12442 |
|
35 |
7/2.50 |
7.50 |
308.0 |
0.5337 |
12860 |
|
50 |
7/3.00 |
9.00 |
443.5 |
0.3706 |
18520 |
|
50 |
19/1.80 |
9.00 |
435.8 |
0.3819 |
17700 |
|
70 |
7/3.55 |
10.65 |
621.1 |
0.2646 |
25930 |
|
70 |
19/2.10 |
10.50 |
593.2 |
0.2806 |
24090 |
|
95 |
19/2.50 |
12.50 |
840.7 |
0.1980 |
34140 |
|
100 |
7/4.30 |
12.90 |
911.2 |
0.1810 |
36540 |
|
120 |
19/2.80 |
14.00 |
1055 |
0.1578 |
42830 |
|
125 |
19/2.90 |
14.50 |
1131 |
0.1471 |
45940 |
|
150 |
19/3.20 |
16.00 |
1377 |
0.1208 |
55940 |
|
150 |
37/2.25 |
15.75 |
1334 |
0.1264 |
53880 |
|
185 |
19/3.55 |
17.75 |
1695 |
0.09815 |
68860 |
|
185 |
37/2.50 |
17.50 |
1647 |
0.1024 |
66490 |
-
