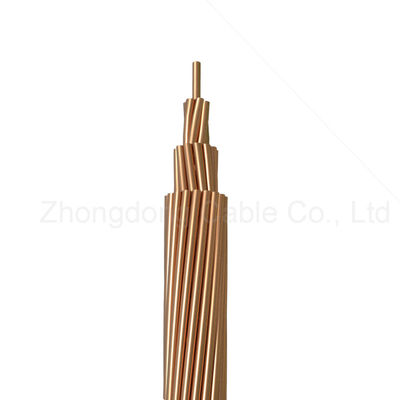

Corrosion Resistant Solid Flexible Bare Copper Conductor Wire For Grounding Cable
| Range Of Application: | Overhead Transmission | Material: | Copper |
| Drum Packing: | Steel Wooden Drum | Per Drum Weight: | As Per Request |
| Voltage: | Up To 110KV | Product: | Bare Conductor |
| High Light: | Corrosion Resistant Bare Copper Conductor,Solid Flexible Bare Copper Conductor Wire |
||
Solid Flexible Copper Bare Conductor Electric Grounding Cable Bare Copper Wire
Application
Bare Copper is used for the realization of earth sockets in the building but also for the realization of the equipotential bonding in industrial applications. Grounding is mandatory for industrial, domestic installations and the distribution of electricalenergy.
Description
- High Electrical Conductivity: Copper ranks second only to silver in conductivity, ensuring efficient power transmission with minimal energy lose
- Superior Thermal Conductivity: Effectively dissipates heat, making it suitable for high-temperature environment
- Corrosion Resistance: Resists oxidation and degradation in humid, saline, or chemically aggressive condition
- Ductility and Flexibility: Can be drawn into ultra-fine wires or shaped into thin foils without structural compromise
- Mechanical Strength: Withstands physical stress, such as stretching and compression, in demanding installations
- High-Temperature Stability: Maintains performance in industrial or automotive settings with elevated temperatures
- Recyclability: Environmentally friendly due to copper’s high recyclability
Construction
| Section (mm²) |
Composition (mm) |
Diameter of conductor (mm) |
Nomnal Wei ght Kg/km |
Maximum DC Resistance at 20 c (ohms/km) |
| 1.5 | 7x0.53 | 1.59 | 13 | 12.1 |
| 2.5 | 7x0.67 | 2.01 | 21 | 7.41 |
| 4 | 7x0.85 | 2.55 | 35 | 4.61 |
| 6 | 7x1.05 | 3.15 | 52 | 3.08 |
| 10 | 7x1.35 | 3.85 | 87 | 1.83 |
| 16 | 7x1.74 | 4.8 | 137 | 1.15 |
| 25 | 7x2.19 | 5.8 | 215 | 0.727 |
| 35 | 7x262 | 6.9 | 300 | 0.524 |
| 50 | 10x2.62 | 8.2 | 410 | 0.387 |
| 70 | 14x 2.62 | 9.7 | 595 | 0.268 |
| 95 | 19x2.62 | 11.4 | 820 | 0.193 |
-
Afast delivery and good quality, so as the service
