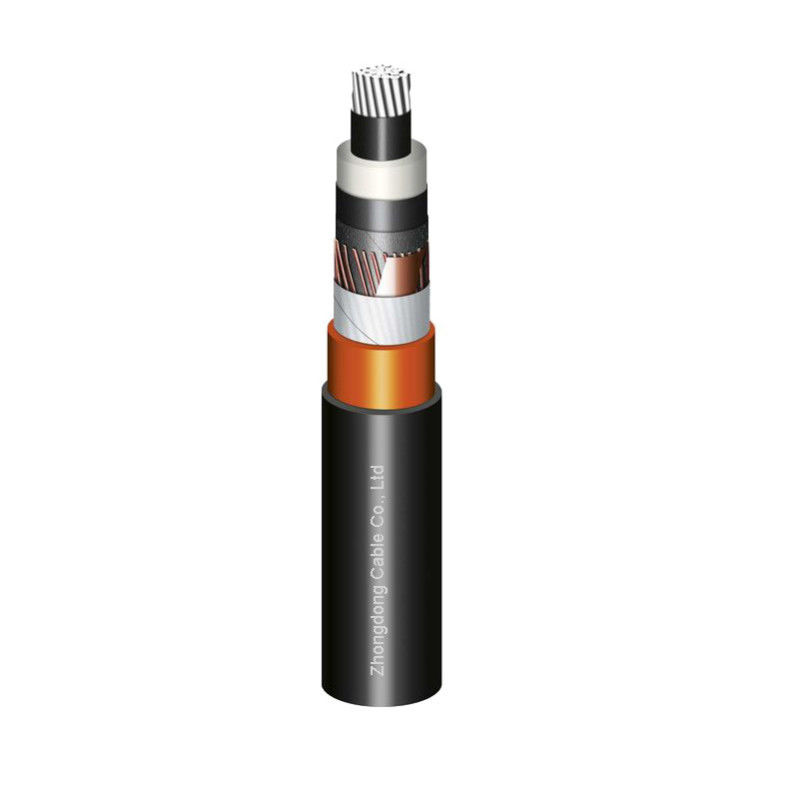

XLPE Insulated Medium Voltage Power Cables With Aluminium Alloy Conductor
| Insulation: | XLPE HPDE | Voltage: | 12/20kV |
| Conductor Material: | Aluminium Alloy Conductor | Application: | Overhead Or Underground,Pipe Laying, Trench Laying, Tunnel Laying, Vertical Shaft And Bridge Laying |
| Shield: | Copper Wire Or Copper Tape | No of Core: | Single Core |
| High Light: | Aluminium Alloy Conductor XLPE Cables,XLPE Medium Voltage Power Cables |
||
Aluminium Alloy Conductor XLPE Insulated Power Cable Copper Wire Shield XLPE/PVC/STA Medium Voltage
Application
Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.
Construction
- Conductor
- Conductor Shield
- Insulation
- Metal Shield Layer
- Filler
- Binder Tape
- Armouring
- Outer sheath
Laying Method
Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.
Specification
12/20kV Single Core Cable Structure Parameters
|
Specs |
Conductor diameter |
Outer thickness of insulation |
Approx outer diameter of cable |
Approx cable weight |
|
1×35 |
6.6±0.2 |
20.0 |
27.8 |
965 |
|
1×50 |
7.6±0.2 |
21.0 |
28.8 |
1066 |
|
1×70 |
9.2±0.2 |
22.6 |
30.6 |
1203 |
|
1×95 |
10.9±0.2 |
24.3 |
32.3 |
1340 |
|
1×120 |
12.2±0.2 |
25.6 |
33.8 |
1483 |
|
1×150 |
13.6±0.2 |
27.0 |
36.5 |
1955 |
|
1×185 |
15.2±0.2 |
28.6 |
38.2 |
2164 |
|
1×240 |
17.4±0.2 |
30.8 |
40.6 |
2455 |
|
1×300 |
19.5±0.2 |
32.9 |
43.1 |
2773 |
|
1×400 |
220±0.2 |
35.4 |
45.7 |
3217 |
|
1×500 |
24.8±0.2 |
39.0 |
49.7 |
3750 |
|
1×630 |
282±0.2 |
42.4 |
53.4 |
4360 |
|
1×800 |
34.0±0.2 |
48.2 |
59.4 |
5192 |
