Detail Information

Insulation Colour:	Natural	Sheath Colour:	Black
Voltage Rating:	0.6/1kV	Operating Voltage:	90˚C
Insulated:	XLPE	Sheathed:	PVC
Highlight:	3.5KV Prefab Branch Cable , Prefab Branch PVC Insulated Power Cable

Product Description

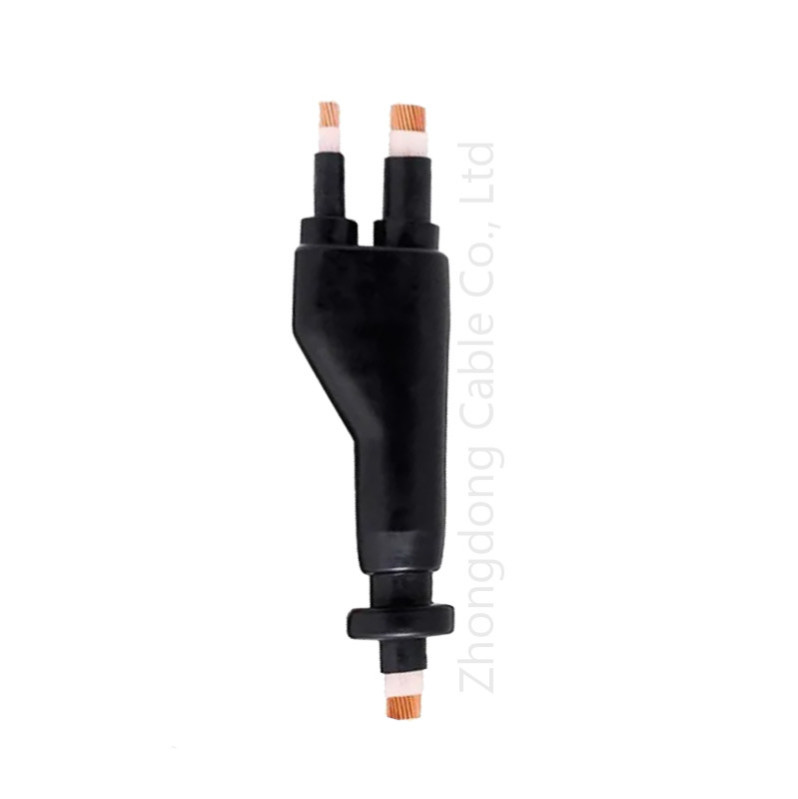

3.5KV Customized Prefabricated Branch Cable XLPE/PVC Insulted Pre-branch Cable

Application

The cable is to connect the required number of branch cables at the specified trunk cable position according to the actual needs of users during production. During construction, the cable reel can be set out evenly by hanging with a hook, which is very convenient. Besides, the cable branch joints have been specially treated, and have reliable power supply and certain waterproof performance. It greatly shortens the construction period, reduces the material cost and construction cost, and ensures the reliability of power distribution

Construction

Plain annealed copper, XLPE insulated, unarmoured, PVC compound sheathed cable

Standards

Our factory has complied with factory standards according to the IEC60502 and JIS376A. The insulation performance is much superior than IEC60502, and the joint is tested according to the standard of GB9732.

Type & Name

Type	Name
YDF-YJV	Copper Conductor XLPE insulated PVC sheathed prefab branch cable
YDF-VV	Copper Conductor PVC insulated PVC sheathed prefab branch cable
YDF-ZR-YJV	Copper Conductor XLPE insulated PVC sheathed flame resistance prefab branch cable
YDF-ZR-VV	Copper Conductor PVC insulated PVC sheathed flame resistance prefab branch cable
YDF-NH-YJV	Copper Conductor XLPE insulated PVC sheathed fire resistance prefab branch cable
YDF-NH-VV	Copper Conductor PVC insulated PVC sheathed fire resistance prefab branch cable
YDF-WL-YJE	Copper Conductor XLPE insulated polyolefine sheathed halogen free low smoke flame resistance prefab branch cable
YDF-WL-EE	Copper Conductor polyolefine insulated PVC sheathed halogen free low smoke flame resistance prefab branch cable
YDF-DL-YJV	Copper Conductor XLPE insulated PVC sheathed low halogen low smoke flame resistance prefab branch cable
YDF-DL-VV	Copper Conductor PVC insulated PVC sheathed low halogen low smoke flame resistance prefab branch cable

Tag:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,TUV,ISO,CCC
Model Number:	YDF

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	woodern drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	100km/week
