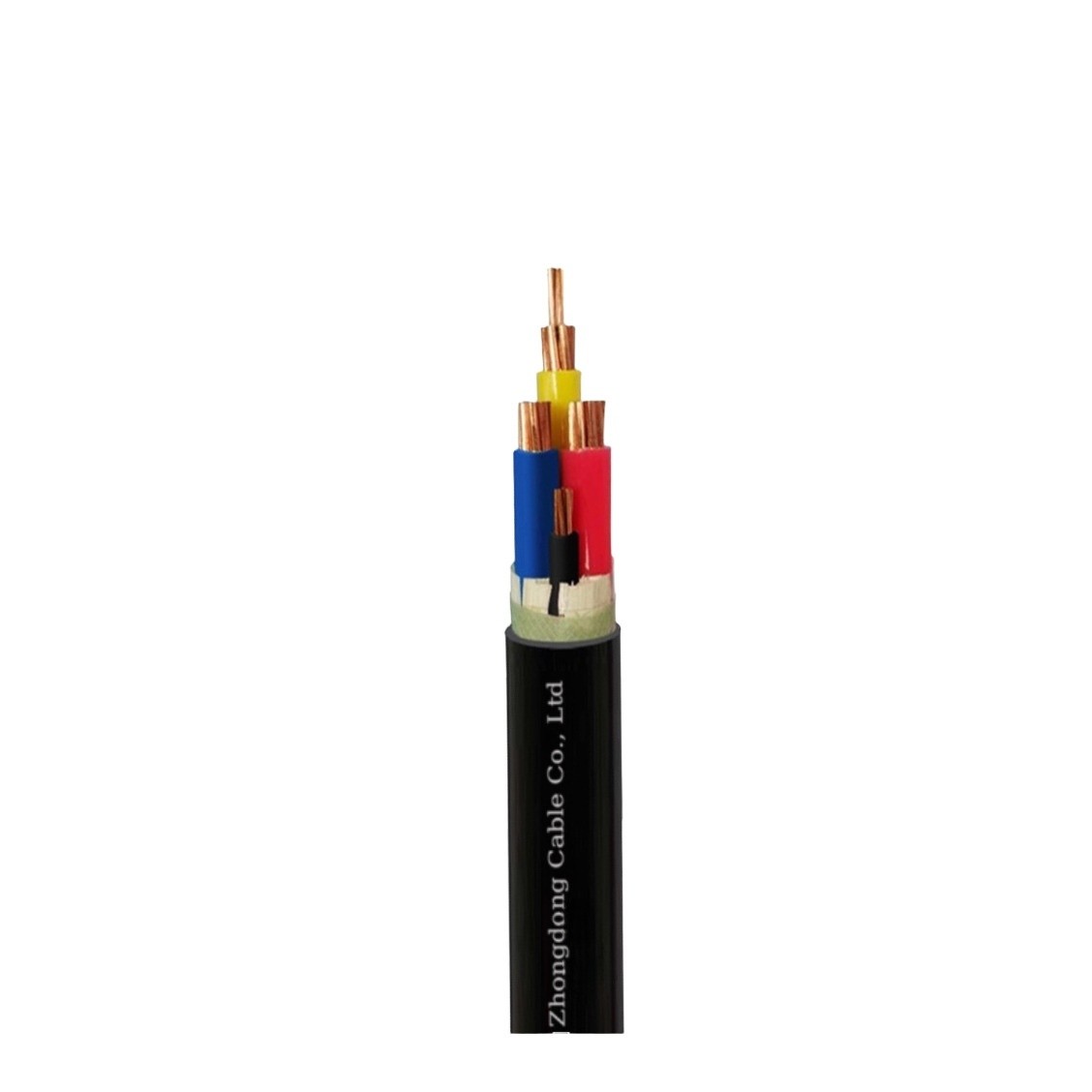

Copper Conductor N2X2y XLPE Power Cable , LV XLPE Insulated Cable UV Resistant
| Model: | XLPE Insulated | Conductor Material: | Copper |
| Insulation Material: | PVC/XLPE | Jacket: | PVC/LSZH/LSOH |
| Voltage: | 6.35/11kV | Armouring: | SWA |
| High Light: | UV Resistant XLPE Power Cable,LV N2X2y XLPE Power Cable,Copper Conductor XLPE Insulated Cable |
||
N2X2y XLPE Insulated Power Cable 0.6/1 Kv Cu/XLPE/HDPE
Application
Power distribution cables in power stations, industrial installations and switchgears, as well as in local mains. For fi xed installation underground, in interior premises, cable ducts, in the open air and in water – as permitted by the local building regulations – under severe mechanical stress during installation and operation.
Construction
- Copper conductor, round stranded (RM), resp. sector-shaped stranded (SM)
- Core insulation (XLPE)
- Inner covering (EPDM)
- Sheath (HDPE black, UV resistant)
Description
- Standard: DIN VDE 0276-603 (HD 603)
- Rated voltage: 0.6/1 kV
- Test voltage: 4 kV/50 Hz
- laying temperature: min. -20 °C
- operating temperature: -50 °C up to +90 °C
- conductor temperature: max. +90 °C
- short-circuit temperature: max. +250 °C/5 s
- Bending radius (min. ): 12 x of cable
Tecnical Data
|
Number of cores x nominal cross section |
Max. conductor resistance |
Current rating in the ground |
Current rating in the air |
Outer diameter |
Total weight |
|
(mm) |
(/km) |
(A) |
(A) |
(mm) |
(kg/km) |
|
4 x 16 RM |
1.15 |
112 |
98 |
22 |
1020 |
|
4 x 25 RM |
0.727 |
145 |
133 |
26.7 |
1510 |
|
4 x 35 RM |
0.524 |
174 |
162 |
29.3 |
1960 |
|
4 x 50 SM |
0.387 |
206 |
197 |
34.4 |
2340 |
|
4 x 70 SM |
0.268 |
254 |
250 |
38.1 |
3,160 |
|
4 x 95 SM |
0.193 |
305 |
308 |
43.2 |
4,280 |
|
4 x 120 SM |
0.153 |
348 |
359 |
46.6 |
5,240 |
|
4 x 150 SM |
0.124 |
392 |
412 |
48.6 |
6,360 |
|
4 x 185 SM |
0.099 |
444 |
475 |
50.4 |
6,980 |
|
4 x 240 SM |
0.075 |
517 |
564 |
55.2 |
9,130 |
