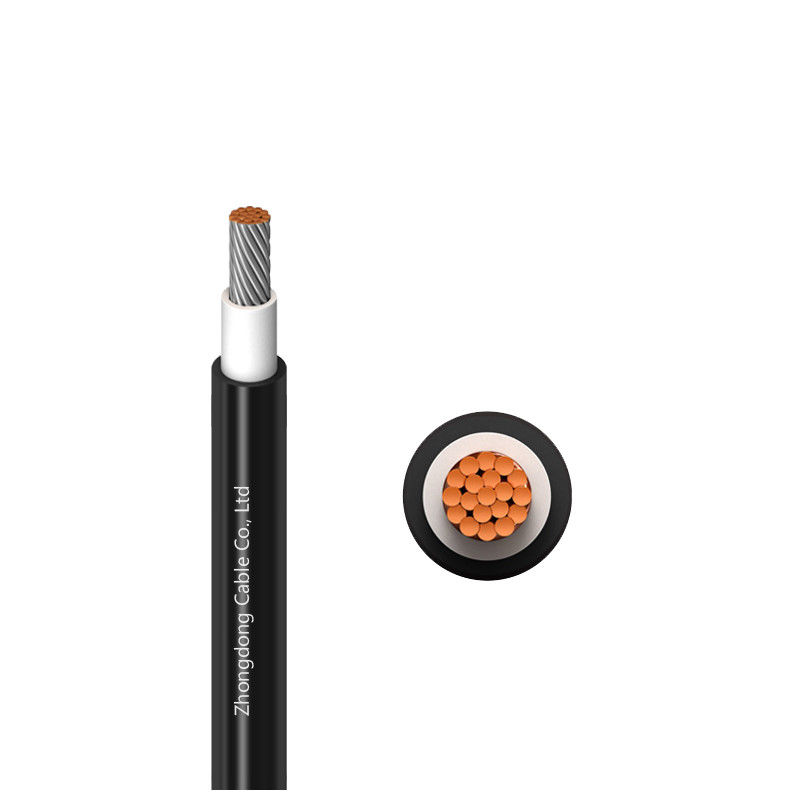

UV Resistant Copper Core PV Solar Cable XLPO Jacket Solar Panel Cable Wire
| Insulation Material: | Xlpe | Jacket: | XLPO |
| Conductor Material: | Class 5 Tinned Copper | Application: | Construction |
| Core: | 1 Core | Colour: | Black /Other Colours Available On Request |
| High Light: | UV Resistant PV Solar Cable,XLPO Jacket Solar Panel Cable Wire |
||
UV Resistant Copper Core Solar Cable XLPO Jacket Solar Photovoltaic Pv Cable
Description
- Photovoltaic cable power cables AC0.6/1kV(DC1.8KV)
- High temperature and UV radiation resistance, long lifespan and reliability
Structure
- Conductor: Tinned copper, offering excellent conductivity and corrosion resistance.
- Insulation: Cross-linked polyethylene (XLPO) or similar material, providing high thermal and mechanical resistance.
- Sheath: Halogen-free, flame-retardant material, ensuring safety and environmental compliance.
Applications
Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .For permanent installations.
Electrical Characteristics
|
No.of cores x Nominal section area |
Nominal Construction of conductor |
Nominal |
Nominal |
Nominal |
Nominal |
Max.Resistance of conductor |
Current Carrying Capacity |
|
PV Single core Solar cable |
|||||||
|
No.X mm² |
No.X mm |
mm |
mm |
mm |
kg/km |
<=(Ω/km) |
A |
|
1 x 1,5 |
30 x 0,25 |
0,8 |
0,8 |
4.8 |
38 |
13,7 |
30 |
|
1 x 2,5 |
50 x 0,25 |
0,85 |
0,9 |
5.4 |
46 |
8,21 |
41 |
|
1 x 4 |
56 x 0,30 |
0,85 |
1,0 |
6.1 |
61 |
5,09 |
55 |
|
1 x 6 |
84 x 0,30 |
0,9 |
1,1 |
7.0 |
90 |
3,39 |
70 |
|
1 x 10 |
80 x 0,40 |
0,9 |
1,2 |
8.2 |
131 |
1,95 |
98 |
|
1 x 16 |
128 x 0,40 |
0,9 |
1,2 |
9.3 |
187 |
1,24 |
132 |
|
1 x 25 |
200 x 0,40 |
0,9 |
1,2 |
10.7 |
278 |
0,795 |
176 |
|
1 x 35 |
280 x 0,40 |
0,9 |
1,2 |
12.4 |
374 |
0,565 |
218 |
|
PV Twin core Solar cable |
|||||||
|
No.X mm² |
No.X mm |
mm |
mm |
mm |
kg/km |
<=(Ω/km) |
A |
|
2 x 1,5 |
30 x 0,25 |
0,8 |
0,8 |
4.8x9.6 |
76 |
13,7 |
30 |
|
2 x 2,5 |
50 x 0,25 |
0,85 |
0,9 |
5.4x10.8 |
92 |
8,21 |
41 |
|
2 x 4 |
56 x 0,30 |
0,85 |
1,0 |
6.1x12.2 |
122 |
5,09 |
55 |
|
2x 6 |
84 x 0,30 |
0,9 |
1,1 |
7.0x14.0 |
180 |
3,39 |
70 |
|
2x 10 |
80 x 0,40 |
0,9 |
1,2 |
8.2x16.4 |
262 |
1,95 |
98 |
|
2 x 16 |
128 x 0,40 |
0,9 |
1,2 |
9.3x18.6 |
374 |
1,24 |
132 |
|
2 x 25 |
200 x 0,40 |
0,9 |
1,2 |
10.7x21.4 |
556 |
0,795 |
176 |
|
2x 35 |
280 x 0,40 |
0,9 |
1,2 |
12.4x24.8 |
748 |
0,565 |
218 |
-
