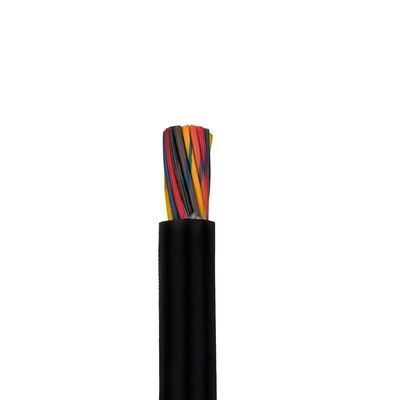

KVV Multi Cores Flexible Control Cable 0.75 1.0 1.5 2.5 Copper

Construction

1. Conductor

Material: Fine-stranded bare copper (Class 5 per IEC 60228) for high flexibility.

Structure: Multiple thin wires tightly bundled to allow repeated bending.

2. Insulation

Material: PVC (Polyvinyl Chloride).

Function: Provides electrical insulation and mechanical protection.

3. Sheath (Outer Jacket)

Material: PVC – Offers abrasion resistance and mild environmental protection.

Design: Smooth or ribbed surface for better handling.

Application

KVVR (Flexible PVC-Insulated PVC-Sheathed Control Cable) is designed for flexible wiring in control circuits, featuring fine-stranded copper conductors (Class 5) and PVC layers. Key uses include:

1.Industrial Control Systems

Connection of movable machinery (e.g., cranes, conveyors, robotic arms).

Control panels and signal transmission in automation equipment.

2.Stage & Entertainment

Temporary power and control wiring for lighting, audio systems, and stage machinery.

3.Building Automation

Flexible links for elevators, HVAC systems, and low-voltage control circuits.

Parameters

Voltage Rating: 300/500V or 450/750V.

Temperature Range: -15°C to +70°C (short-term up to +90°C).

Bending Radius: ≥6× cable diameter (flexible but not for drag chains).

Standard:IEC 60502
