HDPE Copper Screen High Voltage Cable 36/60 (72.5) KV for Distribution Networks
| Voltage: | 36/60kV | Armour: | Steel Tape |
| Screen: | Copper | Insulation: | XLPE |
| Sheath: | HDPE | Conductor: | Copper Or Aluminium |
| High Light: | HDPE Copper Screen High Voltage Cable,Distribution Networks High Voltage Cable |
||

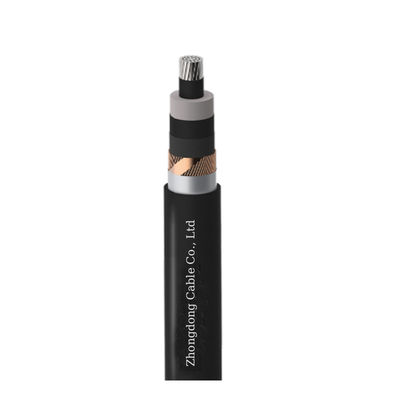

HDPE Copper Screen High Voltage Cable 36/60 (72.5) KV for Distribution Networks
Application
High Voltage cables for distribution networks; also for connection to generation units and plant and process connection. For installation in ground, in water outdoors, indoors and in cable ducts for power stations, industry and distribution networks
Construction
- Wrapping: Semi-conductive water swelling tape
- Metallic Screen: Copper wires and equalising tape
- Wrapping:Semi-conductive water swelling tape
- Tape: Longitudinally applied aluminium tape coated with PE copolymer
- Sheath: HDPE (High Density Polyethylene)
Description
- Voltage Rating (Uo/U)(Um): 36/60 (72.5) kV
- Short Circuit Temperature: +250°C
- Operating Temperature: -30°C to 90°C
- Minimum Installation Temperature: -20°C
Dimension
|
NO.OF CORES |
NOMINAL CROSS |
NOMINAL DIAMETER OF CONDUCTOR |
NSULATION |
METALLICSCREEN |
NOMINAL OUTER |
NOMINAL |
MAXIMUM |
MINIMUM |
||
|
Nominal |
Nominal |
Nominal cross |
Nominal |
|||||||
|
1 |
120RM |
12.5 |
10.0 |
33.7 |
35 |
37.5 |
44 |
1920 |
4.2 |
1.1 |
|
1 |
150RM |
14.1 |
10.0 |
35.3 |
35 |
39.1 |
45 |
2070 |
5.3 |
1.1 |
|
1 |
185RM |
15.8 |
10.0 |
37.0 |
35 |
40.8 |
47 |
2240 |
6.5 |
1.2 |
|
1 |
240RM |
17.9 |
10.0 |
39.1 |
35 |
42.9 |
49 |
2480 |
8.4 |
1.2 |
|
1 |
300RM |
20.0 |
10.0 |
41.2 |
35 |
45.0 |
52 |
2750 |
10.5 |
1.3 |
|
1 |
400RM |
22.9 |
10.0 |
44.5 |
35 |
48.7 |
55 |
3190 |
14.0 |
1.4 |
|
1 |
500RM |
25.7 |
10.0 |
47.3 |
35 |
51.5 |
58 |
3630 |
17.5 |
1.5 |
|
1 |
630RM |
29.3 |
10.0 |
51.1 |
35 |
55.3 |
63 |
4220 |
22.1 |
1.6 |
|
1 |
800RM |
33.0 |
10.0 |
54.8 |
35 |
59.0 |
67 |
4860 |
28.0 |
1.7 |
|
1 |
1000RM |
38.0 |
10.0 |
60.2 |
35 |
64.8 |
73 |
5800 |
35.0 |
1.8 |
|
1 |
1200RM |
42.5 |
10.0 |
64.7 |
50 |
69.3 |
78 |
6800 |
42.0 |
1.9 |
|
1 |
1200RMS |
43.0 |
10.0 |
67.2 |
50 |
71.8 |
80 |
7070 |
42.0 |
2.0 |
|
1 |
1400RMS |
45.1 |
10.0 |
69.3 |
50 |
73.9 |
82 |
7750 |
49.0 |
2.1 |
|
1 |
1600RMS |
48.5 |
10.0 |
72.7 |
50 |
77.3 |
86 |
8520 |
56.0 |
2.2 |
|
1 |
1800RMS |
52.7 |
10.0 |
76.9 |
50 |
81.5 |
91 |
9450 |
63.0 |
2.3 |
|
1 |
2000RMS |
54.5 |
10.0 |
78.7 |
50 |
83.3 |
92 |
10020 |
70.0 |
2.3 |
|
1 |
2500RMS |
59.0 |
10.0 |
84.2 |
50 |
89.2 |
99 |
11580 |
87.5 |
2.5 |
|
1 |
3000RMS |
67.0 |
10.0 |
92.2 |
50 |
97.2 |
107 |
13990 |
100.0 |
2.7 |
