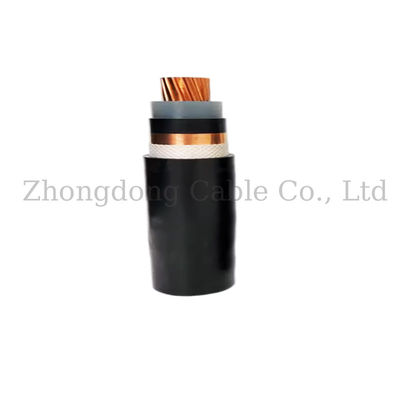

110kV Single Core High Voltage Cable 1000mm2 600mm2 Underground Transmission Cable
| Voltage: | High Voltage | Armour: | Steel Wire, SWA |
| Screen: | Copper | Insulation: | XLPE |
| Sheath: | HDPE | Conductor: | Copper |
| High Light: | Single Core High Voltage Cable,1000mm2 High Voltage Cable,High Voltage Underground Transmission Cable |
||
110kV Single Core High Voltage Cable 1000 mm2 600 mm2 3130 mm Underground Transmission Cable
Application
- Power Transmission Systems: Primarily used in large-scale power grids to transmit electricity between power stations, substations, and urban distribution networks, especially for voltages above 110kV.
- Electric Vehicles (EVs): Transmit high-voltage electricity (up to 1500V) from batteries to motors, inverters, and charging systems, while also relaying signals to vehicle management systems.
- Industrial Environments: Applied in oil and gas facilities, nuclear power plants, and urban rail transit systems for high-voltage power distribution and equipment operation
Construction
- Conductor: Class 2 copper conductor compacted or segment strand Milliken
- Conductor Screen: Extruded semi-conductive XLPE (Cross-Linked Polyethylene)
- Insulation:XLPE(Cross-Linked Polyethylene)
- Insulation Screen: Extruded Semi-conductive XLPE (Cross-Linked Polyethylene)
- Separator: Water swellable semi-conductive tap
- Screen: Copper wire screen, with a counter helix of copper tape
- AMOUR:Aluminium wires or Stainless steel wires or Polymeric
- Sheath: HDPE (High Density Polyethylene)
Description
- Voltage Rating (Uo/U)(Um):64/110kV (123kV)
- Highest Network Voltage: 123kV
- Operating Temperature: -30°C to +90°C
- Short Circuit Temperature: +250°C
- Overload Temperature: +130°C
Dimension
|
Conductor |
Aluminum or Copper |
|
Armoured |
SWA(Steel Wire Armoured) / STA(Steel Tape Armoured) or Non-Armoured |
|
Insulation |
PVC/XLPE/Fire Resistant |
|
Section Area |
25mm2-630mm2 |
|
Cores |
1,3,4,5 |
|
Standard |
IEC 60502, BS 7870, GB/T12706 or other |
|
Packaging |
Iron Or Wooden Drum |
|
Application |
Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on. |
|
We can customize the size according to your requirement |
|
