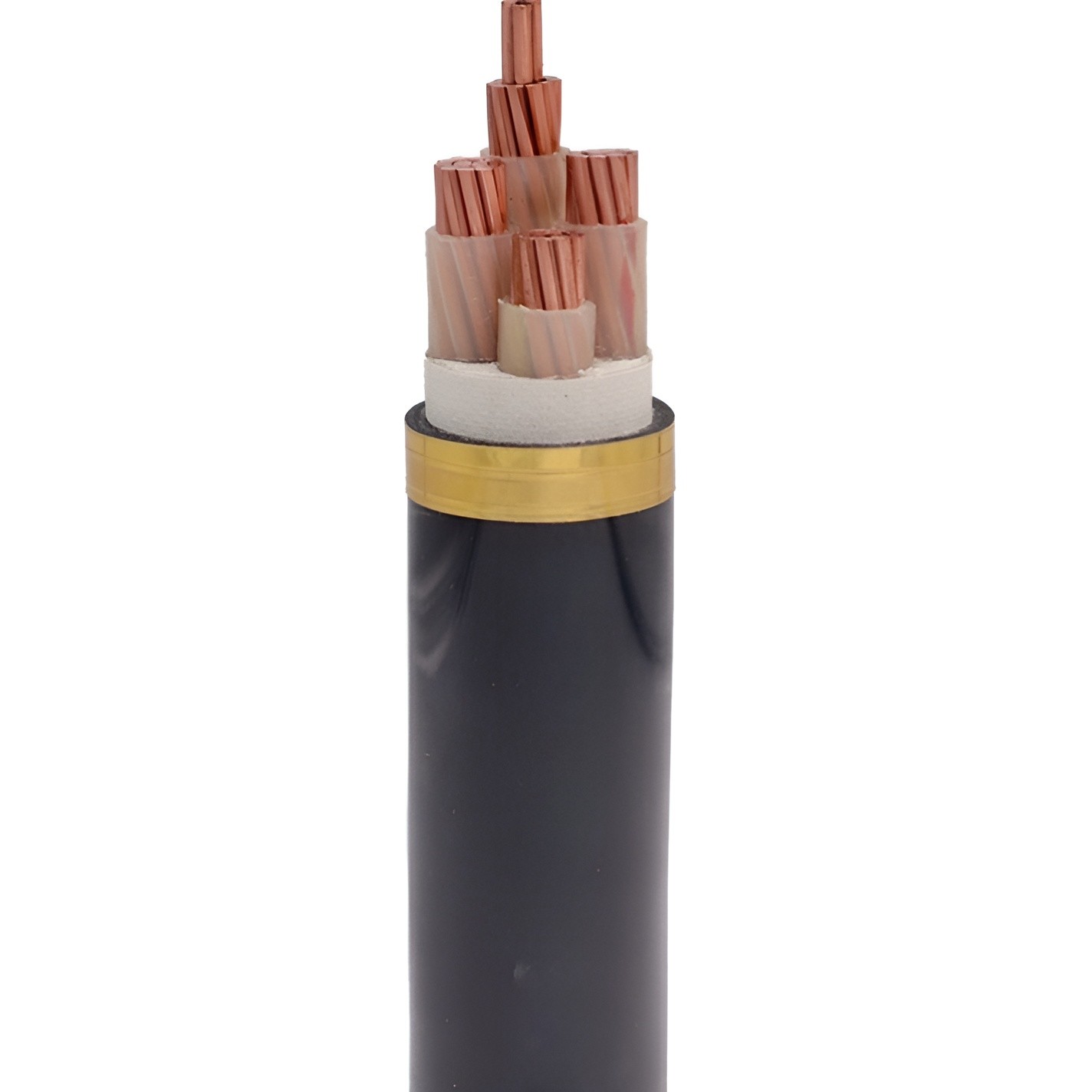

XLPE Insulated Low Voltage Cable Copper Conductor PVC Sheathed Non-Armoured
Application
Machinery & Equipment Wiring – Reliable power transmission for motors, pumps, and control systems.
Temporary Power Supply – Events, construction sites, and portable installations (where mechanical protection is not critical).
XLPE Insulation – Higher thermal resistance (up to 90°C) compared to standard PVC cables.
PVC Sheath – Moisture, abrasion, and chemical resistance for indoor/outdoor use.
Copper Conductor – Excellent conductivity, flexibility, and corrosion resistance.
Non-Armoured (Unarmoured) – Lightweight, cost-effective, and easy to install in conduits, trays, or ducts.
Standard
IEC 60502-1 / BS 5467 / VDE 0276-603 (for XLPE-insulated LV cables).
Suitable for dry, damp, and moderately harsh environments (not recommended for direct burial without additional protection).
Construction
Conductors:plain solid annealed copper
Insulation:Cross-linked Polyethelene (XLPE)
Outer Sheath:Polyvinyl chloride (PVC) or Low Smoke Zero Halogen (LSZH)
Parameter
| No. of cores and nominal cross section |
Thickness of Insulation |
Thickness of Sheath |
Approx. overall Diameter |
Approx. weight |
Max. DC resistance of conductor(20℃) |
Current carrying capacity |
| (mm2) |
(mm) |
(mm) |
(mm) |
(kg/km) |
(Ω/km) |
In Air(A) |
In Ground(A) |
| 4X1.5 |
0.7 |
1.8 |
12.6 |
160 |
12.1 |
21 |
30 |
| 4X2.5 |
0.7 |
1.8 |
13.6 |
210 |
7.41 |
28 |
39 |
| 4X4 |
0.7 |
1.8 |
14.8 |
280 |
4.61 |
37 |
51 |
| 4X6 |
0.7 |
1.8 |
16.0 |
380 |
3.08 |
47 |
64 |
| 4X10 |
0.7 |
1.8 |
18.6 |
530 |
1.83 |
65 |
86 |
| 4X16 |
0.7 |
1.8 |
21.0 |
800 |
1.15 |
84 |
110 |
| 4X25 |
0.9 |
1.8 |
24.9 |
1240 |
0.727 |
110 |
140 |
| 4X35 |
0.9 |
1.8 |
28.3 |
1600 |
0.524 |
135 |
170 |
| 4X50 |
1.0 |
1.8 |
28.4 |
2000 |
0.387 |
170 |
205 |
| 4X70 |
1.1 |
2.0 |
33.1 |
2800 |
0.268 |
215 |
250 |
| 4X95 |
1.1 |
2.1 |
37.1 |
4000 |
0.193 |
265 |
300 |
| 4X120 |
1.2 |
2.2 |
40.8 |
5000 |
0.153 |
310 |
345 |
| 4X150 |
1.4 |
2.4 |
45.2 |
6100 |
0.124 |
350 |
385 |
| 4X185 |
1.6 |
2.6 |
52.1 |
7600 |
0.0991 |
405 |
435 |
| 4X240 |
1.7 |
2.8 |
57.8 |
9500 |
0.0754 |
480 |
500 |
| 4X300 |
1.8 |
3.0 |
63.5 |
12000 |
0.0601 |
555 |
565 |
| 4X400 |
2.0 |
3.3 |
70.9 |
16000 |
0.0470 |
640 |
640 |
