Copper Conductor Xlpe Insulated Armoured Cable SWA PVC Sheath Multi Core
| Conductor: | Copper | Insulation: | XLPE |
| Sheath: | PVC | Item No: | NYBY, NAYBY |
| No of Core: | 4 | Armour: | Steel Wire |
| High Light: | PVC Sheath Xlpe Insulated Armoured Cable,Multi Core Xlpe Insulated Armoured Cable |
||

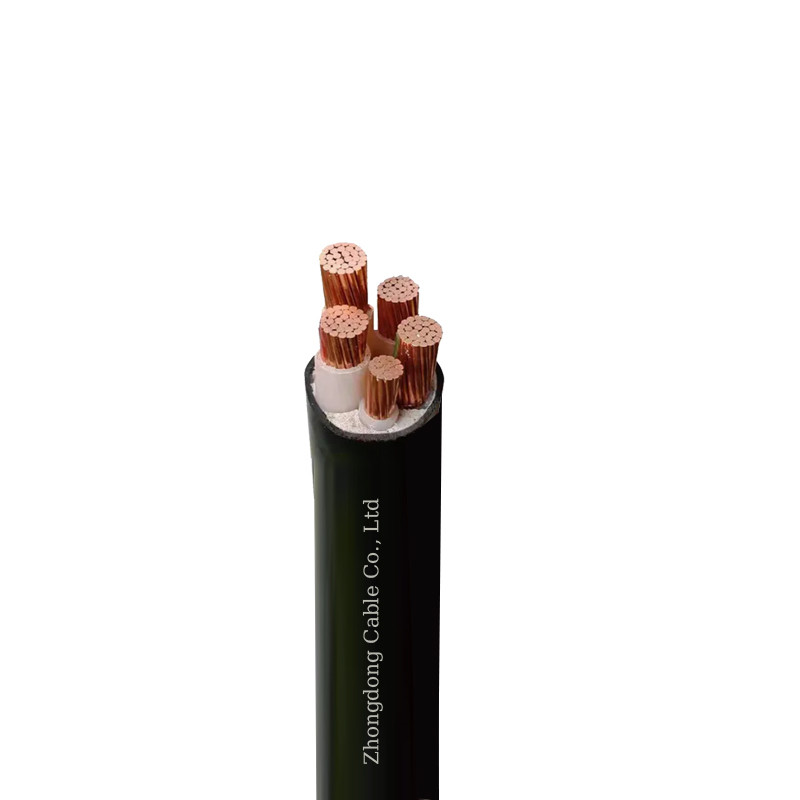

Copper Conductor XLPE Insulated Power cable Steel Wire Aromoured SWA PVC Sheath
Application
XLPE insulated power cables are used for power networks supply ,undergrand,outdoor and indoor applications and for use in cable ducting. Suitable for use in power distribution lines with rated voltage 0.6/1KV low voltage installation system . For laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force
Construction
- Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
- Insulation:XLPE
- Filler: Non-hygroscopic material
- Inner sheath:PVC
- Armouring: Steel Wire Armoured
- Outer sheath:PVC
Advantage
- Composite high temperature resistance performance
- Compressive and tensile strengthening
- Anti bending and anti deformation
- Electromagnetic and Environmental Adaptability
- Low frequency interference shielding
- Chemical corrosion protection
- Direct burial without conduit
- Extended lifespan
Characteristic
- Test Voltage: 3.5kV 5min No Breakdown
- The ambient temperature for installation: ≥0℃.
- Maximum conductor temperature in normal operation:≤90℃.
- Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
- Permissible minimum bending radius:
- Multi-core armoured cable: 12 x OD
Specification
|
No.of cores x Nominal section area |
Nominal Construction of conductor |
Nominal |
Nominal |
Nominal |
Nominal |
Max.Resistance of conductor |
|
No.X mm² |
No.X mm |
mm |
mm |
mm |
kg/km |
<=(Ω/km) |
|
Four core Armoured Cable CU/PVC/AWA/PVC(AL/PVC/AWA/PVC ) |
||||||
|
4x1.5 |
2x 1.38 |
0,6 |
1,3 |
13.3 |
350 |
12,10 |
|
4x2.5 |
7 x 0,67 |
0,7 |
1,4 |
14.9 |
445 |
7,41 |
|
4x4.0 |
7 x 0,85 |
0,7 |
1,4 |
16.4 |
545 |
4,61 |
|
4x6.0 |
7 x 1,04 |
0,7 |
1,5 |
18.7 |
785 |
3,08 |
|
4x10 |
7 x 1,35 |
0,7 |
1,5 |
21.1 |
1130 |
1,83 |
|
4x16 |
7 x 1,70 |
0,7 |
1,6 |
23.4 |
1310 |
1,150 |
|
4x25 |
7 x 2,14 |
0,9 |
1,7 |
26.1 |
1870 |
0,727 |
|
4x35 |
7 x 2,52 |
0,9 |
1,8 |
28.6 |
2345 |
0,524 |
|
4x50 |
19 x 1,78 |
1,0 |
1,9 |
32.1 |
2970 |
0,387 |
|
4x70 |
19 x 2,14 |
1,1 |
2,1 |
37.7 |
4210 |
0,268 |
|
4x95 |
19 x 2,52 |
1,1 |
2,2 |
41.7 |
5410 |
0,193 |
|
4x120 |
37 x 2,03 |
1,2 |
2,3 |
47.7 |
6995 |
0,153 |
|
4x150 |
37 x 2,25 |
1,4 |
2,4 |
51.4 |
8310 |
0,124 |
|
4x185 |
37 x 2,52 |
1,6 |
2,6 |
56.6 |
10086 |
0,0991 |
|
4x240 |
61 x 2,25 |
1,7 |
2,7 |
63.1 |
12670 |
0,0754 |
|
4x300 |
61 x 2,52 |
1,8 |
2,9 |
68.8 |
15360 |
0,0601 |
